關于：4000066-025

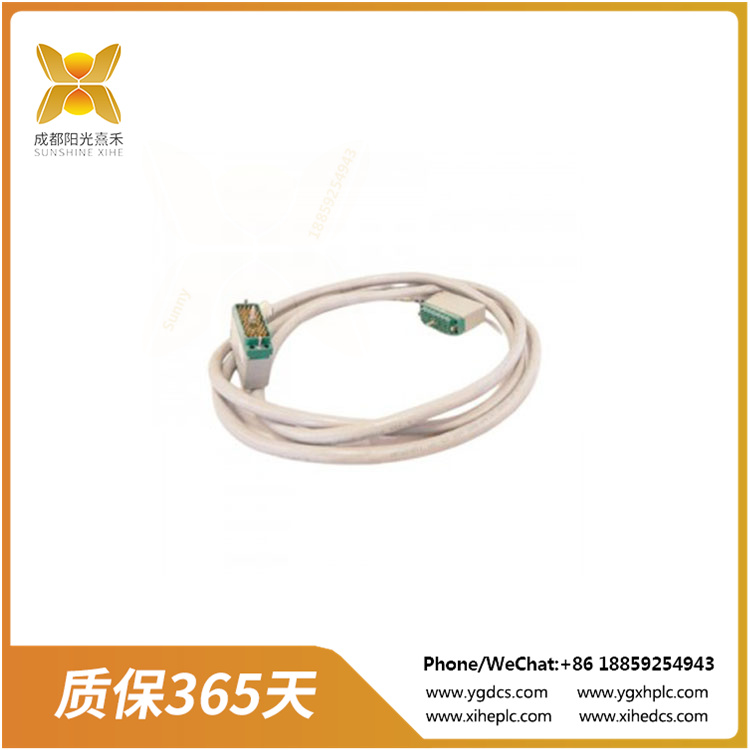

Triconex 電纜線組件 4000066-025 25 針
尺寸 ：29x26x20厘米
重量 4.07 千克
總線系統和 配電
蝕刻了三個三份總線系統 在機箱背板上：TriBus， I/O 總線和通信總線。 TriBus由三個獨立的串行鏈路組成，它們在25 兆比特每秒。三通車 同步主處理器 掃描開始。然后每個主要 處理器將其數據發送到其上游 和下游鄰居。

電纜組件是用于連接不同電子設備系統或子系統。它由各種絕緣線、屏蔽線和電連接器組成。隨著寬電纜元件在通信領域的應用、電氣穩定性要求、服務電纜元件的壽命和耐環境性越來越高.目前，普遍的使用的電纜組件是兩端的連接器，中間電纜，電纜和連接器是連接的通過壓接、安裝或焊接，并覆蓋熱縮套管或注塑成型保護。現在讓我們看看如何安裝它。

組裝電纜組件主要有三種方法:
直接煌接式:電纜內導體和連接器內導體;煌接連接到連接器外導體的半剛性電纜。需要特殊的裝配工具。優點:1.連接線可以好。2、焊接結構剛度高，完整性好。3.焊接方法種類繁多，焊接工藝適用性廣，比較容易寫實。壓接式:電纜屏蔽層是壓接套管，用特殊的壓接夾緊固定在連接器上，結構簡單，安裝速度快，一致性好，可靠性高，結構適用于柔性電纜。

什么是Tricon？
Tricon是一款先進的控制器，通過三重模塊化冗余（TMR）架構提供容錯能力。TMR在一個控制系統中集成了三個隔離的并行控制系統和廣泛的診斷功能。該系統使用三分之二的投票來提供高完整性、無差錯、不間斷的流程操作，沒有單點故障。
Tricon 控制器使用三個相同的通道。每個通道與其他兩個通道并行獨立執行控制程序。專門的硬件/軟件投票機制對現場的所有數字輸入和輸出進行鑒定和驗證，而模擬輸入則經過中間值選擇過程。

4000066-025

Triconex Cable Assembly 4000066-025 25 pin
Size: 29x26x20 cm
It weighs 4.07 kg
Bus systems and power distribution
Three tripartite bus systems are etched on the chassis backplane: TriBus, I/O bus, and communication bus. TriBus consists of three separate serial links that are at 25 megabits per second. Three traffic synchronous master processor scan begins. Each major processor then sends its data to its upstream and downstream neighbors.

Cable assemblies are used to connect different electronic device systems or subsystems. It consists of various insulated wires, shielded wires and electrical connectors. With the application of wide cable components in the field of communication, electrical stability requirements, service cable components life and environmental resistance are getting higher and higher. At present, the commonly used cable assembly is the connector at both ends, the intermediate cable, the cable and the connector are connected by crimping, mounting or welding, and covered with heat shrink sleeve or injection molding protection. Now let’s see how to install it.

There are three main ways to assemble cable assemblies:
Direct brilliant connection: cable inner conductor and connector inner conductor; A semi-rigid cable successfully connected to the outer conductor of the connector. Special assembly tools are required. Advantages :1. The cable can be good. 2, the welding structure has high rigidity and good integrity. 3. There are many kinds of welding methods, and the welding process has wide applicability and is relatively easy to be realistic. Crimping type: The cable shield layer is crimping sleeve, fixed on the connector with a special crimping clamp, simple structure, fast installation speed, good consistency, high reliability, structure suitable for flexible cables.

What is Tricon?
Tricon is an advanced controller that provides fault tolerance through a triple modular redundancy (TMR) architecture. TMR integrates three isolated parallel control systems and a wide range of diagnostic functions in a single control system. The system uses two-thirds voting to provide high integrity, error-free, uninterrupted process operation with no single point of failure.
The Tricon controller uses three identical channels. Each channel executes the control program independently in parallel with the other two channels. A dedicated hardware/software voting mechanism identifies and validates all digital inputs and outputs in the field, while analog inputs go through an intermediate value selection process.
