基本細節:5069-IB6F-3W 緊湊型 I/O 6 通道 3 線快速 24V 直流灌電流輸入模塊

5069-IB6F-3W 緊湊型 I/O 6 通道 3 線快速 24V 直流灌電流輸入模塊

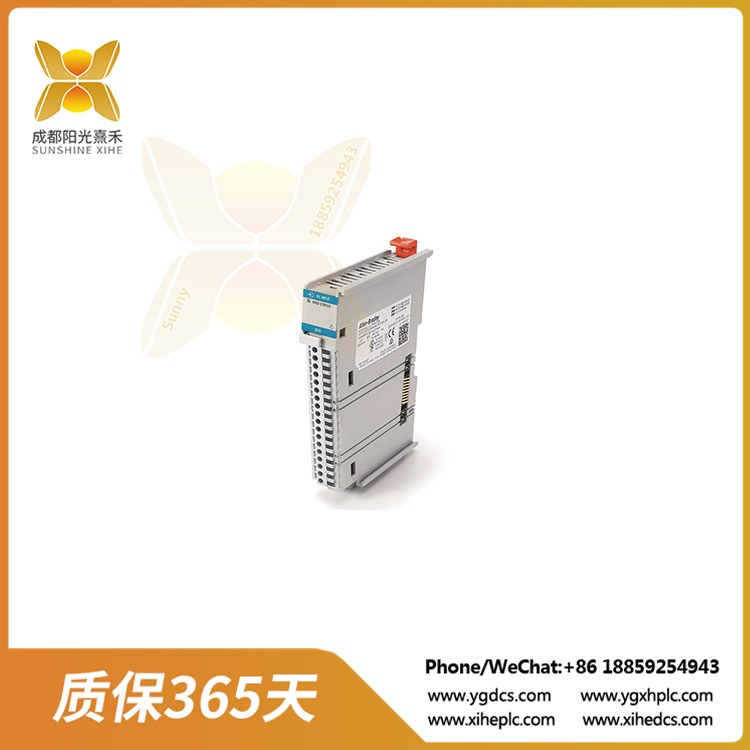

5069-IB6F-3W 是一款緊湊型 5000 分立式快速輸入模塊。這是一款直流輸入模塊，具有六 （6） 個灌入輸入通道，在單組輸入通道中接受 10-32VDC 的信號電壓范圍。該模塊支持 2 線和 3 線傳感器。它的輸入電流范圍為每通道 4-7.4 mA @ 10-32VDC。該模塊需要一個 RTB 來端接信號，其中兼容的 RTB 包括 5069-RTB18-SPRING RTB 和 5069-RTB18-SCREW RTB。該模塊支持脈沖和周期測量以及脈沖車床和圖案匹配。

該模塊專門是一個 24VDC 快速輸入模塊，支持 2 線和 3 線傳感器。與標準輸入模塊類似，該模塊在 10-32VDC 的電壓范圍內工作，支持脈沖和周期測量以及脈沖鎖存功能。
5069-IB6F-3W 配備一組六 （6） 個灌入輸入通道，每個通道的輸入信號延遲時間為 ？10 μs、±1 μs @ 25 °C （77 °F） 用于開到關和關到開的轉換。此外，該模塊具有可配置的輸入濾波器時間，這會增加模塊的硬件延遲?？膳渲玫妮斎霝V波器時間包括 0-50 毫秒的關斷到開和開到關的轉換。
對于模塊的快速輸入相關特性，該模塊最多支持由任何輸入或簡單計數器觸發的四 （4） 個事件。還支持模式匹配。脈沖和周期測量為 +/- 2μs，輸入時間戳精度為 ±10 μs，分辨率為 1 ns。

5069-IB6F-3W 配備反極性保護，并安裝有保險絲過載保護。該模塊的過壓保護額定值為 36V。
5069-IB6F-3W是一款單插槽模塊。它安裝在 Din 導軌上，類似于同一產品系列中的任何模塊。與模塊一起使用的兼容 DIN 導軌是鍍鋅鉻酸鹽鈍化鋼 DIN 導軌或EN50022 – 35 x 7.5 毫米（1.38 x 0.30 英寸）DIN導軌。切勿使用導電性差或易受腐蝕和氧化的 DIN 導軌。DIN導軌提供與外殼的接地連接。由非導電材料制成的DIN導軌可能會破壞模塊的接地，這可能會影響每個模塊的性能。

緊湊型 I/O 模塊使用生產者-消費者通信模型。該模塊與 Logix 控制器兼容，并配置了 studio 5000 Logix designer。Allen-Bradley 5069-IB6F-3W 適用于污染 2 級工業環境，適用于過度的 II 類應用（定義見 IEC 60664-1 出版物）。該模塊可以在高達 2000 米的高度運行而不會降額。如果將電纜連接或斷開到接線端子，或者在接通電源時插入或放電模塊，則可能會產生電弧。這可能會導致危險場所發生爆炸。在繼續之前，請確保電源已斷開并且該區域沒有危險。Allen-Bradley 5069-IB6F-3W 不適合在住宅區使用，并且此模塊可能無法針對附近的無線電通信服務提供足夠的保護。該模塊通過DIN導軌接地到地面機箱。使用鍍鋅黃色鉻酸鹽 DIN 導軌以確保正確接地。
5069-IB6F-3W 是否帶有狀態 LED 指示燈？
是的。它有六 （6） 個通道 LED 指示燈和一 （1） 個模塊狀態指示燈。
5069-IB6F-3W 的物理尺寸是多少？
5069-IB6F-3W 尺寸為 144.57 x 22 x 105.42 毫米（5.69 x 0.87 x 4.15 英寸）。
5069-IB6F-3W 是否能夠輸入時間戳？
是的。輸入時間戳的精度為 ±10 μs，分辨率為 1 ns。

5069-IB6F-3W

5069-IB6F-3W Compact I/O 6-channel 3-wire fast 24V DC input module
The 5069-IB6F-3W is a compact 5000 split fast input module. This is a DC input module with six (6) input channels that accept a signal voltage range of 10-32VDC in a single set of input channels. The module supports 2-wire and 3-wire sensors. Its input current range is 4-7.4 mA @ 10-32VDC per channel. The module requires an RTB to terminate the signal, and compatible RTBS include the 5069-RTB18-SPRING RTB and the 5069-RTB18-SCREW RTB. The module supports pulse and period measurements as well as pulse lathes and pattern matching.

The module is specifically a 24VDC fast input module with support for 2 – and 3-wire sensors. Similar to standard input modules, the module operates in a voltage range of 10-32VDC and supports pulse and period measurements as well as pulse latching.
The 5069-IB6F-3W is equipped with a set of six (6) input channels, each with an input signal delay time of? 10 μs, ±1 μs @ 25 °C (77 °F) for on-off and off-on transitions. In addition, the module has a configurable input filter time, which increases the hardware latency of the module. Configurable input filter times include 0-50 ms turn-off to turn on and turn-on to turn off transitions.
For the fast input related features of the module, the module supports up to four (4) events triggered by any input or simple counter. Pattern matching is also supported. Pulse and period measurements are +/- 2μs, input timestamp accuracy is ±10 μs, and resolution is 1 ns.

The 5069-IB6F-3W is equipped with reverse polarity protection and is equipped with fuse overload protection. The module has an overvoltage protection rating of 36V.
The 5069-IB6F-3W is a single slot module. It is mounted on a Din rail, similar to any module in the same product family. Compatible DIN rails used with modules are galvanized chromate passivated steel DIN rails or EN50022-35 x 7.5 mm (1.38 x 0.30 in) DIN rails. Do not use DIN guides that have poor electrical conductivity or are susceptible to corrosion and oxidation. DIN rails provide a ground connection to the housing. DIN guides made of non-conductive materials can break the grounding of the modules, which can affect the performance of each module.

The compact I/O module uses a producer-consumer communication model. The module is compatible with the Logix controller and is configured with the studio 5000 Logix designer. Allen-Bradley 5069-IB6F-3W is intended for use in contaminated Class 2 industrial environments for excessive Class II applications (as defined in IEC 60664-1 publication). The module can operate at altitudes up to 2,000 meters without derating. If the cable is connected or disconnected to the terminal, or if the module is inserted or discharged while the power is turned on, an arc may occur. This can lead to explosions in dangerous places. Before continuing, make sure the power is disconnected and the area is free from danger. Allen-Bradley 5069-IB6F-3W is not suitable for use in residential areas, and this module may not provide adequate protection against radio communication services in the vicinity. The module is grounded to the ground chassis via DIN rail. Use galvanized yellow chromate DIN guides to ensure proper grounding.
Does the 5069-IB6F-3W come with a status LED?
Yes. It has six (6) channel LED indicators and one (1) module status indicator.
What is the physical size of the 5069-IB6F-3W?
The 5069-IB6F-3W measures 144.57 x 22 x 105.42 mm (5.69 x 0.87 x 4.15 inches).
5069-IB6F-3W Can I enter a timestamp?
Yes. The input timestamp has an accuracy of ±10 μs and a resolution of 1 ns.
