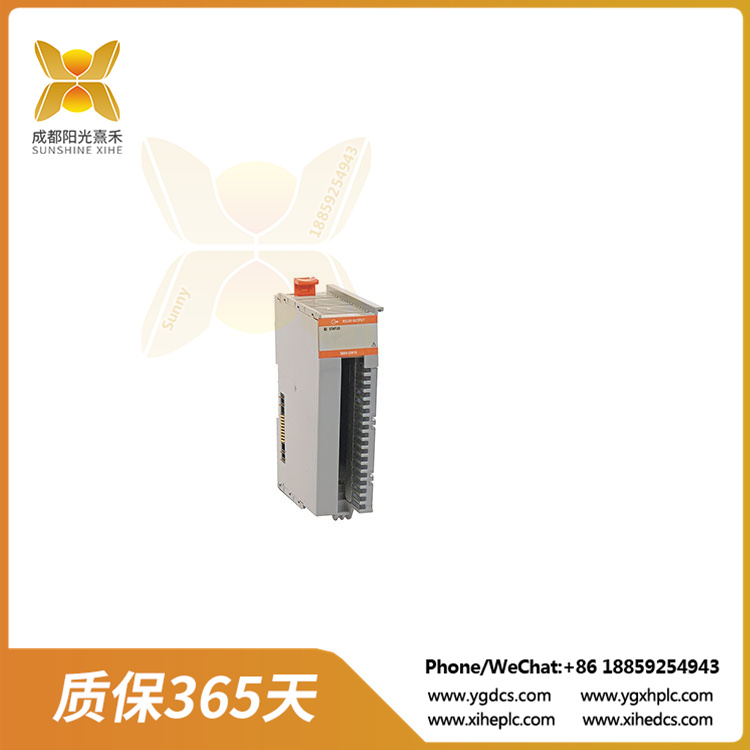

基本細節:5069-IY4 4通道通用輸入模塊提供差分和單端非隔離輸入通道

5069-IY4和5069-IY4K模擬4通道通用輸入模塊提供差分和單端非隔離輸入通道以及熱電偶和RTD輸入通道，可以在廣泛的應用中工作。模塊可以根據連接到模塊的輸入類型在多個輸入范圍內工作。Compact 5000?I/O模塊使用生產者/消費者通信模型。生產者/消費者通信模型是模塊和其他系統設備之間的智能數據交換，其中每個模塊產生數據而無需首先輪詢。

這些模塊在CompactLogix?5380、Compact GuardLogix?5380和CompactLogix 5480控制器系統中用作本地I/O模塊。它們也可以用作遠程I/O模塊與CompactLogix 5380, Compact GuardLogix 5380, CompactLogix 5480控制器，和其他一些Logix 5000?控制器。
5069-IY4 是一款通用模擬輸入模塊，是 Compact 500 I/O 模塊的一部分。該模塊主要具有四 （4） 個差分輸入通道，與各種輸入信號兼容，例如電壓、電流、電阻、電阻溫度檢測器 （RTD）、毫伏和熱電偶信號和傳感器。
當配置為電壓輸入時，該模塊支持 ±10V、0-10V 和 0-5VDC 等電壓范圍。同樣，當配置為毫伏輸入時，可接受的輸入范圍為 +/- 100 mV。當設置為接受電流輸入時，該模塊兼容 0-20 mA 和 4-20 mA 輸入信號。此外，對于電阻輸入，該模塊可容納 1-500 ？、2-1000 ？、4-2000 ？和 8-4000 ？電阻信號。

對于工業傳感器輸入，5069-IY4 還可以配置為直接與電阻溫度檢測器 （RTD） 和熱電偶傳感器連接。兼容的 RTD 傳感器包括 100、200、500、1000 ？鉑，alpha=385;100, 200, 500, 1000 ?鉑，alpha=3916;120 ?鎳，α=672;100, 120, 200, 500 ?鎳，alpha=618 和 10 ？銅 427.對于熱電偶傳感器，該模塊與 B、C、D、E、J、K、L （TXK/XK）、N、R、S 和 T 型熱電偶兼容。
該模塊配備 Sigma-Delta 模數轉換器電路。它以 IEEE 32 位浮點格式轉換和保存數據。它的模塊掃描時間為每通道 625 μs，每組 2.5 ms。它的過流和過壓保護額定值分別為 ± 30 mA 和 ± 30V DC。
該模塊的電源總線，或MOD電源總線的直通電壓范圍和正常電壓范圍均為18-32V DC，最大額定電流為9.55A，最大電流為75mA。SA 或傳感器執行器最大場功率電流為 100 mA，場功率電壓范圍為 18-32V DC，直通電壓范圍為 0-32V DC，最大額定電流為 9.95 A。5069-IY4 模塊在電壓模式和熱電偶/毫伏模式下的最大功耗為 1.8 W，在電流模式和 RTD 模式下的最大功耗為 2.1 W。在電壓和熱電偶/毫伏模式下，其最大功耗均為 6.1 BTU/小時，在電流和 RTD 模式下均為 7.2 BTU/小時。該模塊已在工廠校準，但可以根據需要配置校準。狀態指示燈包括 4 個黃色和紅色 I/O 狀態 LED、1 個綠色和紅色模塊狀態 LED 以及 2 個黃色和紅色 CJC 狀態 LED。

5069-IY4

The 5069-IY4 and 5069-IY4K analog 4-channel universal input modules offer differential and single-ended non-isolated input channels as well as thermocouple and RTD input channels and can work in a wide range of applications. Modules can work in multiple input ranges depending on the input type connected to the module. The Compact 5000?I/O module uses the producer/consumer communication model. The producer/consumer communication model is an intelligent data exchange between modules and other system devices, where each module generates data without first polling.

These modules are used as local I/O modules in CompactLogix?5380, Compact GuardLogix?5380, and CompactLogix 5480 controller systems. They can also be used as remote I/O modules with CompactLogix 5380, Compact GuardLogix 5380, CompactLogix 5480 controllers, and some other Logix 5000? controllers.
The 5069-IY4 is a general-purpose analog input module that is part of the Compact 500 I/O module. The module primarily features four (4) differential input channels that are compatible with a variety of input signals such as voltage, current, resistance, resistance temperature detector (RTD), millivolt and thermocouple signals and sensors.
When configured as a voltage input, the module supports voltage ranges of ±10V, 0-10V, and 0-5VDC. Similarly, when configured with millivolt input, the acceptable input range is +/- 100 mV. When set to accept current input, the module is compatible with 0-20 mA and 4-20 mA input signals. In addition, for resistive inputs, the module can accommodate 1-500? , 2-1000? , 4-2000? And 8-4000? Resistance signal.

For industrial sensor inputs, the 5069-IY4 can also be configured to connect directly to resistance temperature detectors (RTDS) and thermocouple sensors. Compatible RTD sensors include 100, 200, 500, 1000? Platinum, alpha=385; 100, 200, 500, 1,000? Platinum, alpha=3916; 120? Nickel, α=672; 100, 120, 200, 500? Nickel, alpha=618 and 10? Copper 427. For thermocouple sensors, the module is compatible with B, C, D, E, J, K, L (TXK/XK), N, R, S and T thermocouples.
The module is equipped with a Sigma-Delta analog-to-digital converter circuit. It converts and saves data in IEEE 32-bit floating-point format. Its module scan time is 625 μs per channel and 2.5 ms per group. Its overcurrent and overvoltage protection ratings are ± 30 mA and ± 30V DC, respectively.
The module’s power bus, or MOD power bus, has both a straight-through voltage range and a normal voltage range of 18-32V DC with a maximum rated current of 9.55A and a maximum current of 75mA. The SA or sensor actuator has a maximum field power current of 100 mA, a field power voltage range of 18-32V DC, a through voltage range of 0-32V DC, and a maximum rated current of 9.95A. The 5069-IY4 module has a maximum power consumption of 1.8 W in voltage mode and thermocouple/millivolt mode, and 2.1 W in current mode and RTD mode. Its maximum power consumption is 6.1 BTU/ hour in both voltage and thermocouple/millivolt modes, and 7.2 BTU/ hour in both current and RTD modes. The module has been factory calibrated, but calibration can be configured as required. The status indicators include four yellow and red I/O status leds, one green and red module status leds, and two yellow and red CJC status leds.
