DS200DCFBG1BKC是通用電氣（GE）生產的一款電源板，屬于Mark V系列。這款電源板在安裝到驅動器中時，可以為機箱風扇以及系統的控制級電源提供電力。
在GE的驅動系統中，DS200DCFBG1BKC與兼容DC2000、AC2000、FC2000、CB2000和ME2000系列驅動器相兼容，可以與這些驅動器一起使用。該電路板的標稱額定源輸入可以安全地測量38伏和115伏交流電壓。
此外，該卡產生的輸出頻率可以在任何地方測量0和500千赫，取決于輸入的電壓。這款電源板上具有五個獨立電路，包括控制電平電源電路、驅動器電路、電機磁場電源電路以及交流和DC監控電路。
同時，板上集成了三個保護保險絲，可防止電流中斷。在使用這款電源板時，用戶可以通過呈現的LED指示燈和霓虹燈指示器檢查保險絲的診斷信息。

DS200DCFBG1BKC

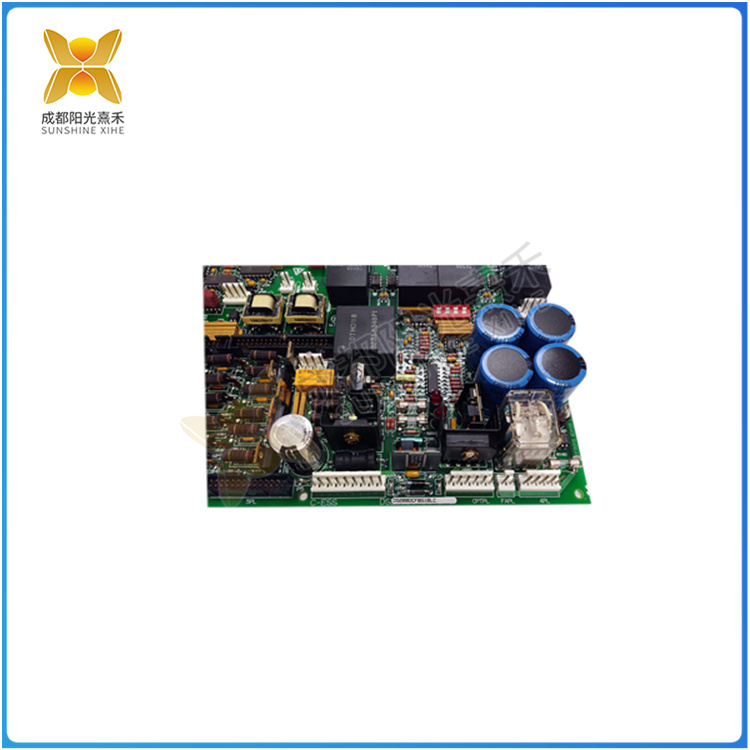

The DS200DCFBG1BKC is a power board produced by General Electric (GE) and belongs to the Mark V series. When installed in the drive, the power strip provides power to the chassis fan as well as the system’s control-level power supply.
In GE’s drive system, the DS200DCFBG1BKC is compatible with DC2000, AC2000, FC2000, CB2000 and ME2000 series drives and can be used with these drives. The board’s nominal rated source input can safely measure 38 volts and 115 volts AC.
In addition, the output frequency produced by the card can be measured anywhere from 0 to 500 KHZ, depending on the input voltage. There are five separate circuits on the power board, including the control level power circuit, the driver circuit, the motor field power circuit, and the AC and DC monitoring circuit.
At the same time, three protective fuses are integrated on the board to prevent current interruption. When using this power supply board, the user can check the diagnostic information of the fuse through the presented LED indicator and neon indicator.

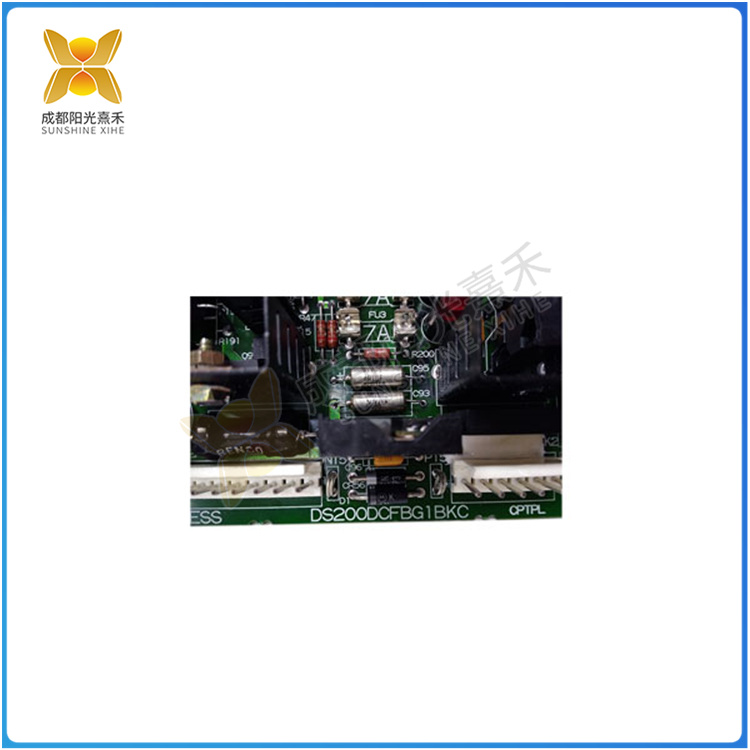

DS200DCFBG1BKC
