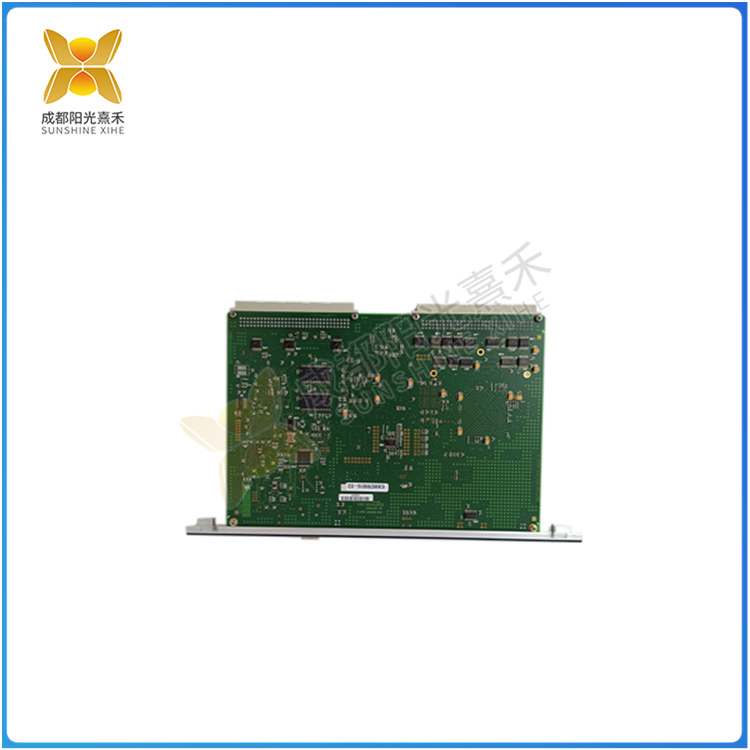

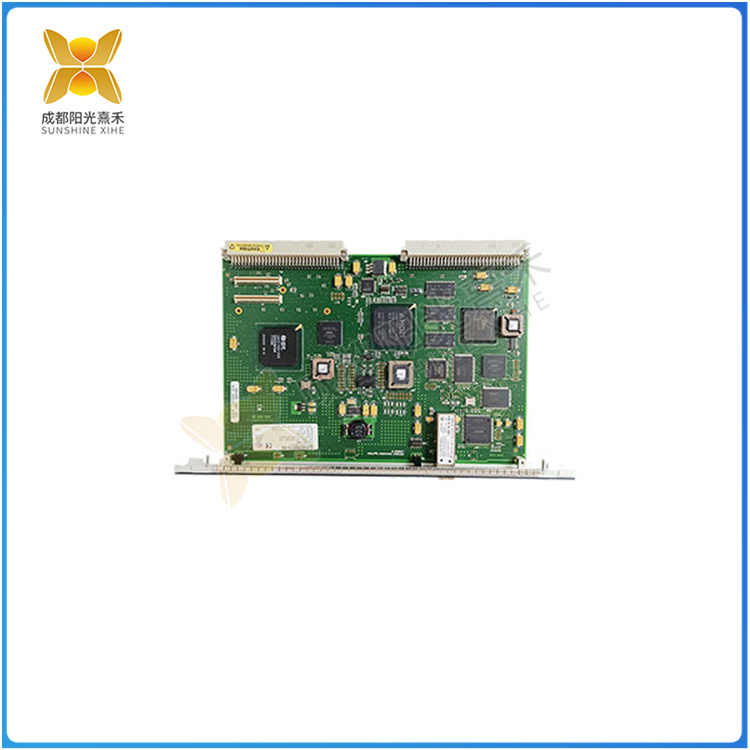

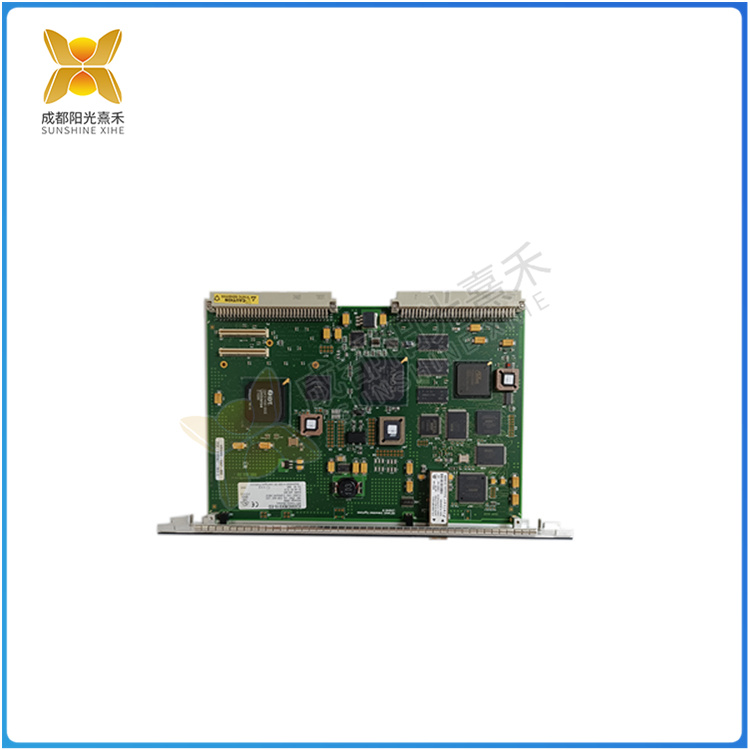

IC698CMX016-ED是一款控制存儲器交換模塊，來自PACSystems RX7i平臺，是艾默生自動化（以前由GE智能平臺(GE IP)制造的）的一部分。此模塊主要用于使用反射存儲技術通過光纖網絡在PLC和兼容設備之間提供數據的確定性共享。
它配備了16MB SDRAM，工作電壓為+5VDC，由電源提供，電流要求為1.8安培。該模塊需要安裝到主機架上，并連接到插槽3或4。它采用光纖LC型，插入損耗為0.35 dB（最大值），回波損耗為-30dB。
該組件本質上是一個存儲模塊，但是，IC698CMX016的主要功能是使用反射式存儲器技術通過光纖網絡在PLC和兼容設備之間提供確定性的數據共享。該內存模塊能夠與每個網絡多達256個節點進行通信，并支持冗余傳輸模式操作。
IC698CMX016-ED
The IC698CMX016-ED is a control memory switch module from the PACSystems RX7i platform, part of Emerson Automation, formerly manufactured by GE Intelligence Platform (GE IP). This module is primarily used to provide deterministic sharing of data between PLCS and compatible devices over a fiber optic network using reflective storage technology.
It is equipped with 16MB SDRAM, operates at +5VDC, is supplied by the power supply, and the current requirement is 1.8 amps. The module needs to be mounted to the mainframe rack and connected to slot 3 or 4. It uses fiber LC type with insertion loss of 0.35 dB (maximum) and return loss of -30dB.
The component is essentially a storage module, however, the main function of the IC698CMX016 is to provide deterministic data sharing between the PLC and compatible devices over a fiber optic network using reflective memory technology. The memory module is capable of communicating with up to 256 nodes per network and supports redundant transport mode operation.
IC698CMX016-ED
