SCXI-1193是NI生產的一款射頻多路復用器開關模塊，專為與PXI任意波形發生器和PXI示波器等高頻儀器集成而設計。它可以通過編程配置為無端接多路復用器、一個外部端接的多路復用器或尺寸靈活的稀疏矩陣。SCXI-1193模塊具有多種拓?fù)浣Y(jié)構，包括四路8 x 1多路復用器、四路4 x 1端接多路復用器、雙路16 x 1多路復用器、雙路8 x 1端接多路復用器、32 x 1多路復用器、16 x 1端接多路復用器和獨立模塊。此外，它還具有36個用于I/O連接器的MCX插孔，2個用于觸發連接器的SMB插孔，由銀鈀和金制成的繼電器，最大掃描速率為每秒100次操作。

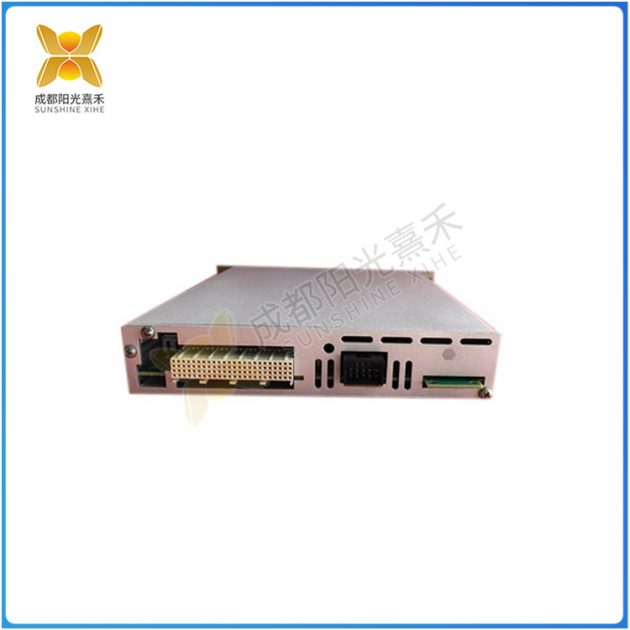

SCXI-1193

The SCXI-1193 is an RF multiplexer switch module from NI designed for integration with high frequency instruments such as PXI arbitrary waveform generators and PXI oscilloscopes. It can be programmed to be an unterminated multiplexer, an externally terminated multiplexer, or a sparse matrix with flexible dimensions. The SCXI-1193 module has a variety of topologies, including a four-way 8 x 1 multiplexer, a four-way 4 x 1 terminated multiplexer, a dual-way 16 x 1 multiplexer, a dual-way 8 x 1 terminated multiplexer, a 32 x 1 multiplexer, a 16 x 1 terminated multiplexer, and a stand-alone module. In addition, it features 36 MCX jacks for I/O connectors, 2 SMB jacks for triggering connectors, relays made of silver palladium and gold, and a maximum scan rate of 100 operations per second. The device is an electromechanical latching relay type, weighs 2 ounces and measures 1.2 x 6.8 x 7.8 inches.

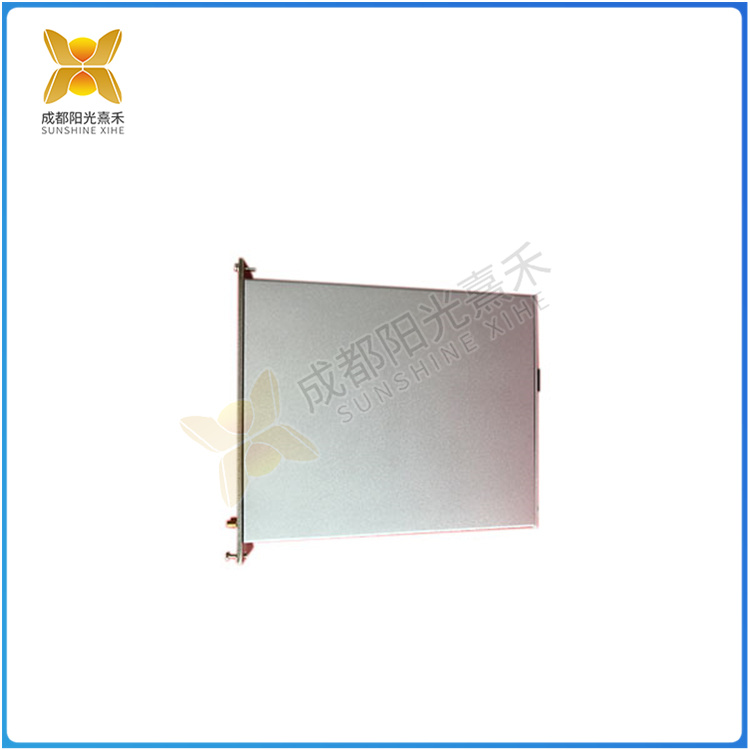

SCXI-1193
