MVI56-BAS是由Prosoft Technology制造的基本通信模塊。它是一個單槽模塊，用于將1747-BAS和1771-DB模塊上使用的傳統BASIC程序轉換為ControlLogix系統。它的用戶界面由三個端口組成——DH-485、PRT1和PRT2。這些端口用于進行通信、基本程序傳輸、ASCII通信、編程或DF1通信。MVI56-BAS有一個小型閃存盤插槽。你可以用CF卡存儲基本程序。這些BASIC程序也可以導出到另一臺或本地PC上。該設備有24065字節的可用內存。可通過該通信模塊操作的主要功能是創建基本程序，以允許與ControlLogix處理器進行數據傳輸，以及為特殊應用創建外部設備接口。該模塊還可用于將使用ASCII編碼的設備連接到ControlLogix背板。MVI56-BAS可以配置為DF1半雙工從機或DF1全雙工模塊。

MVI56-BAS

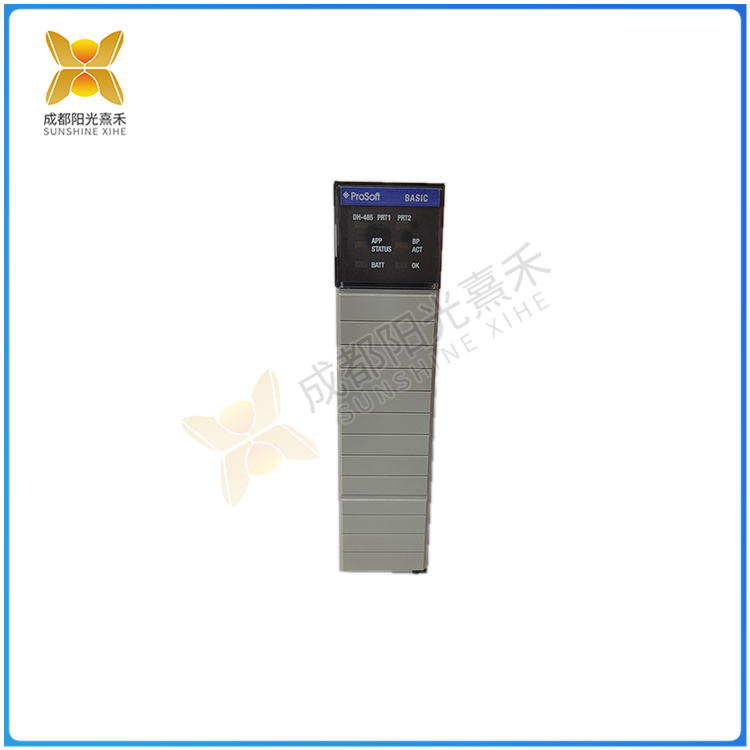

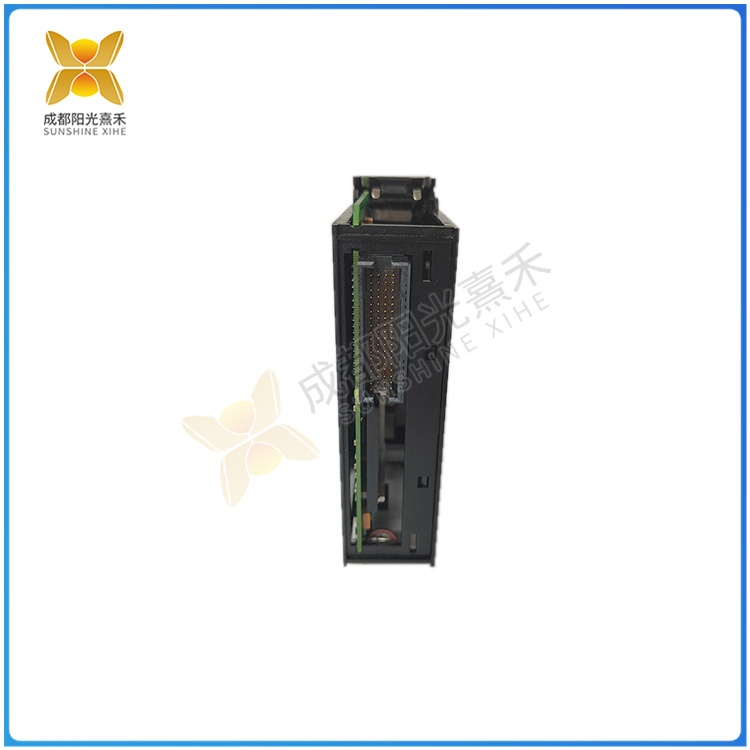

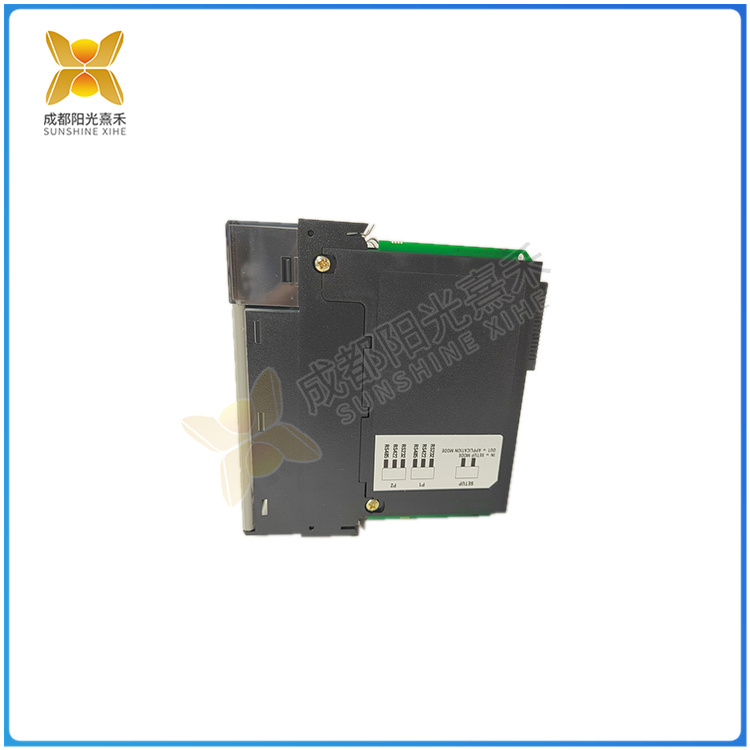

The MVI56-BAS is a basic communication module manufactured by Prosoft Technology. It is a single slot module for converting traditional BASIC programs used on the 1747-BAS and 1771-DB modules to ControlLogix systems. Its user interface consists of three ports – DH-485, PRT1 and PRT2. These ports are used for communication, basic program transfer, ASCII communication, programming, or DF1 communication. The MVI56-BAS has a small flash drive slot. You can use CF cards to store basic programs. These BASIC programs can also be exported to another or local PC. The device has 24,065 bytes of free memory. The main functions that can be operated through this communication module are the creation of basic programs to allow data transfer with the ControlLogix processor and the creation of external device interfaces for special applications. This module can also be used to connect devices using ASCII encoding to the ControlLogix backplane. The MVI56-BAS can be configured as a DF1 half-duplex slave or a DF1 full-duplex module.

MVI56-BAS
