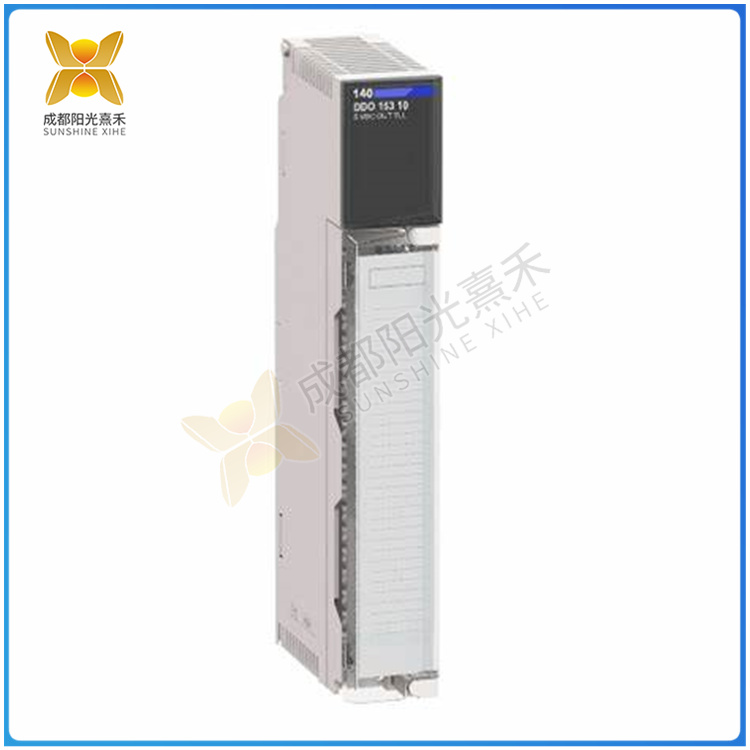

140DDO15310是施耐德/昆騰系列CPU控制模塊備件。它是一種TTL離散量輸出模塊，具有正散熱片、TTL、5V直流、4W的輸出型式和電壓，同時具有4組8通道的輸出數量。該模塊的絕對最大輸出為15V，用于0.0013s衰減電壓脈沖，并具有4 W的功率消耗。它還具有2個輸出字的地址需求，每個點的最大負載電流為<=75mA，每組的最大負載電流為<=600mA，每模塊的最大負載電流為<=2.4A。浪涌電流為750A 0.5 ms每點之間，反應時間為<=250 μs。
140DDO15310適用于工業(yè)自動化系統(tǒng)中的控制模塊。它是一種TTL離散量輸出模塊，可以用于各種工業(yè)環(huán)境下的設備控制和數據采集。通過與PLC或其他控制器配合使用，可以實現遠程控制和數據傳輸，提高生產效率和質量。

140DDO15310

The 140DDO15310 is a spare part for the Schneider/Quinten series CPU control module. It is a TTL discrete output module with positive heat sink, TTL, 5V DC, 4W output type and voltage, and has 4 groups of 8 channel output number. The module has an absolute maximum output of 15V for 0.0013s attenuated voltage pulses and has a power consumption of 4W. It also has an address requirement of 2 output words with a maximum load current of <=75mA per point, <=600mA per group, and <=2.4A per module. The surge current is 750A 0.5 ms between each point and the reaction time is <=250 μs.
140DDO15310 is suitable for control modules in industrial automation systems. It is a TTL discrete output module, which can be used for equipment control and data acquisition in various industrial environments. By combining with PLC or other controllers, remote control and data transmission can be achieved to improve production efficiency and quality.
