YS1700可以通過運行用戶程序來針對各種應用進行定制，并憑專有技術、用戶友好性和可擴展性提供高可靠性標準型號比早期系列更小、更輕，需要更少的安裝空間，并且符合國際安全標準，
特征
YS1700-100/A06/A31全點陣 TFTLCD 提供出色的易讀性:即使在清晨和傍晚的陽光直射下，顯示的高可見度，用產可以從儀表、趨勢顯示、條形圖、報警和事件顯示中自由該問所需的操作顯示。所有參數都可以通過前面板顯示屏進行設置。
YS1700 功能塊編程:除了與早期型號兼容的文本編程外，YS1700-100/A06/A31 還提供基于 GU 的全新程方法，即功能塊編程YS1000系列可選的YSS1000設置軟件用于開發用戶程序。
編程容量大:文本程序的程序容量為1000步，功能塊程序的程序容量為400個模塊。
更強大的控制和計算功能:EEE754格式的四字節浮點計算使實際值能夠在計算中用。具有指數函數和對數數、溫度補償和壓力補償?shù)纫话俣喾N類型的計算模
·YS1700 功能選擇模式(無需編程): 多功能控制器模式允從常用功能單回路、級聯或選擇器控制中選擇控制，無需編程數字和模擬輸輸出0!
Do、AI 和AO)的功能分配可以通過參數設置來確定。
。YS1700 可擴展 /0: 帶擴展 /0 的基本型有 8 個模輸入、4 個模擬輸出、10 個數字輸入或 10 個數字輸出共 4數字輸入和輸出)

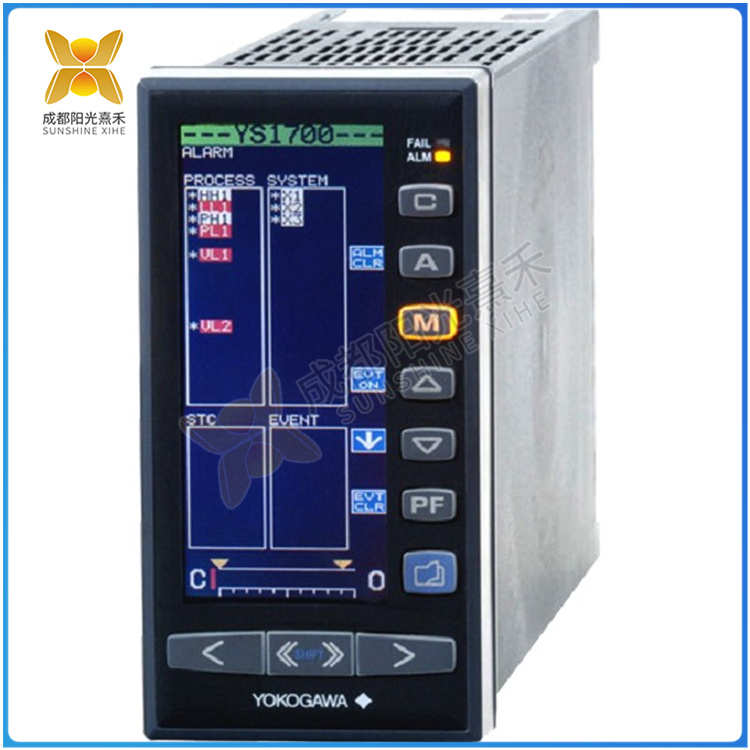

YS1700-100/A06/A31

The YS1700 can be customized for a variety of applications by running user programs and offers high reliability with proprietary technology, user friendliness and scalability. Standard models are smaller and lighter than earlier series, require less installation space, and comply with international safety standards.
trait
The YS1700-100/A06/A31 Full lattice TFTLCD provides excellent legibility: High visibility of the display, even in direct sunlight in the early morning and evening, and the user can freely display the desired operation from the meter, trend display, bar chart, alarm and event display. All parameters can be set through the front panel display.
YS1700 Feature Block Programming: In addition to text programming compatible with earlier models, the YS1700-100/A06/A31 also offers a new process approach based on GU, namely Feature Block Programming The optional YSS1000 setup software of the YS1000 series for developing user programs.
Large programming capacity: the program capacity of the text program is 1000 steps, and the program capacity of the function block program is 400 modules.
More powerful control and calculation functions :EEE754 format four-byte floating point calculation enables the actual value to be used in the calculation. It has more than one hundred types of calculation modes such as exponential function and logarithmic number, temperature compensation and pressure compensation
·YS1700 Function Selection mode (no programming required): Multi-function controller mode allows you to select controls from common function single loop, cascade or selector controls without programming digital and analog inputs and outputs 0!
The function assignment of Do, AI, and AO) can be determined by parameter Settings.
. YS1700 expandable /0: The basic model with extended /0 has 8 modular inputs, 4 analog outputs, 10 digital inputs or 10 digital outputs for a total of 4 digital inputs and outputs)
