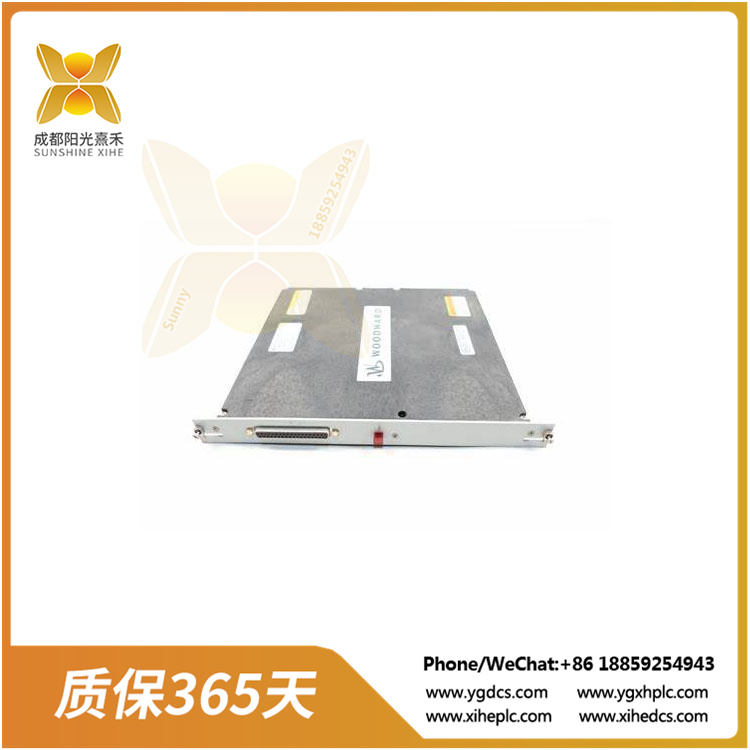

基本細節:5464-660? 控制裝置? 用于正向或反向作用應用

5464-660這些控制裝置可用于正向或反向作用應用，也可用于單個或串聯執行器。提供三種不同執行器電流范圍的型號，以及高壓型號(90至 150 Vdc或 88 至 132 Vac，45 至 440 Hz)和低壓型號(20 至 40 Vdc)。高壓型號在正面被標識為這樣;低壓模型則不然。在反向作用系統中，當執行器電壓降低時，執行器需要更多的燃料。執行器的電壓完全損失將驅動執行器充滿燃料。
這允許備用機械球頭調速器進行控制，而不是像直動式系統那樣關閉原動機。
還提供可選的減速坡道。
當存在此選項時，從額定速度升溫到總速的時間約為 20 秒。
如果此選項不存在，則會立即發生這種情況。
這些伍德沃德 2301A 控制器接受高壓或低壓電源。
低壓型號的工作電壓為 20 至 40 Vdc，高壓型號的工作電壓為 88 至 132 Vac 或 90 至 150 Vdc。
低壓和高壓型號都要求至少15 W 的功率容量。
除非絕對必要，否則請勿從控制柜中取出印刷電路板(PCB)如果必須從控制柜中取出 PCB，請遵循以下注意事項:請勿觸摸 PCB 除邊緣以外的任何部分。

5464-660

5464-660 These controls can be used in forward or reverse action applications, as well as single or series actuators. Models are available in three different actuator current ranges, as well as high-voltage models (90 to 150 Vdc or 88 to 132 Vac, 45 to 440 Hz) and low-voltage models (20 to 40 Vdc). High-pressure models are identified on the front as such; Low pressure models do not. In a reverse-acting system, when the actuator voltage is reduced, the actuator requires more fuel. A complete loss of voltage in the actuator will drive the actuator to full fuel.
This allows the standby mechanical ball-head governor to be controlled, rather than turning off the prime mover as in direct-acting systems.
Optional deceleration ramps are also available.
When this option is present, the time to heat up from the rated speed to the total speed is about 20 seconds.
If this option does not exist, this happens immediately.
These Woodward 2301A controllers accept high or low voltage power supplies.
Low-voltage models operate at 20 to 40 Vdc, while high-voltage models operate at 88 to 132 Vac or 90 to 150 Vdc.
Both low and high voltage models require a power capacity of at least 15 W.
Do not remove the printed circuit Board (PCB) from the control cabinet unless absolutely necessary If you must remove the PCB from the control cabinet, follow the following precautions: Do not touch any part of the PCB other than the edges.
