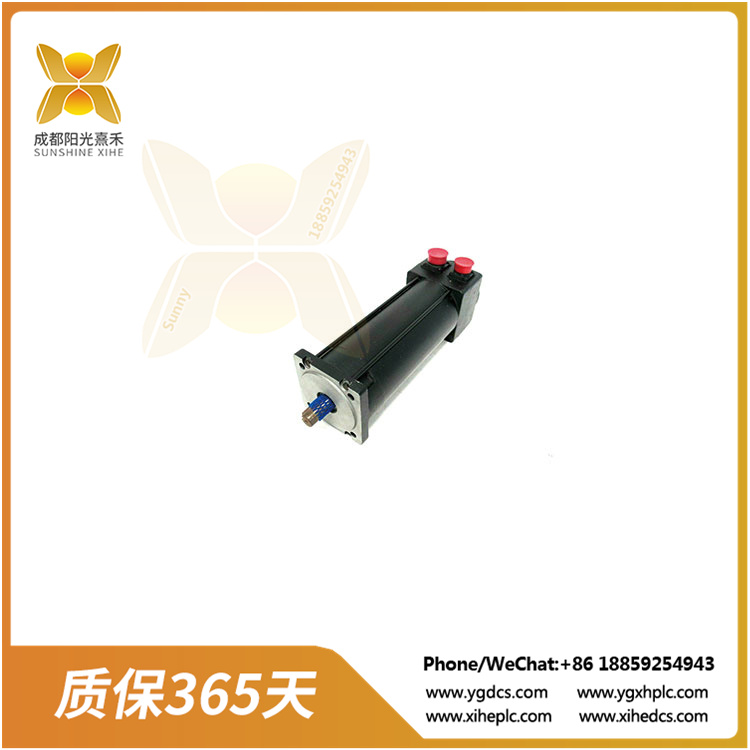

基本細節:1326AB-B740E-M2L 交流伺服電機 永磁轉子增加伺服響應

1326AB-B740E-M2L伺服電機是Allen-Bradley Torque Plus系列的交流伺服電機。請注意，這款 Allen-Bradley 伺服電機可以替換為 1326AB-B740E-M2L 伺服電機的新 Elwood 品牌版本。Elwood 1326 伺服電機可以取代 1326AB、1326AS、F 系列、H 系列（S 系列）、N 系列和 W 系列傳統系列中的 Allen-Bradley 1326 伺服電機。Elwood 1326AB-B740E-M2L伺服電機用于安裝和連接的所有部件（如繞組、連接器和安裝硬件）都是OEM組件，符合RoHS標準。
1326AB-B740E-M2L 伺服電機是 Torque Plus 系列伺服電機，具有 TENV 結構、UL 認證絕緣系統、用于平穩低速運行的 3 相正弦繞繞定子磁場、電機失速時 100% 連續額定輸出扭矩 （0 RPM），并且能夠以一定角度垂直安裝，軸朝上或朝下，以提高效率和最佳性能。1326AB-B740E-M2L 伺服電機可在 460 伏交流電或 380 伏交流電下運行。它輸出 12.7 千瓦的輸出，其系統連續失速電流為 32 安培。其最大額定電機轉速在 3400 伏交流電時為 460 RPM，在 380 伏交流電時為 2800 RPM
具有以下標準特性:
?永磁轉子增加伺服響應。
?三相正弦繞組定子場直接傳遞熱量到
環境，低速平穩運行。
?無刷解析器提供位置，換相和速度反饋
信息。這也提供了在惡劣環境下的耐久性
在馬達上裝有車載電子設備的。1391 A組B組(可選)
編碼器輸出(高達2048 ppr)是通過解析器反饋產生的。
?100%連續額定輸出扭矩在失速(零rpm)。
?精確平衡0.0005o(0.0127毫米)總峰峰
位移。
?垂直軸上下安裝。
?TENV結構。
?IP65等級(當與軸密封選項一起使用時)，承受苛刻
環境。電機防塵，能承受脈動水

1326AB-B740E-M2L

The 1326AB-B740E-M2L servo motor is the Allen-Bradley Torque Plus series of AC servo motors. Please note that this Allen-Bradley servo motor can be replaced with the new Elwood brand version of the 1326AB-B740E-M2L servo motor. The Elwood 1326 servo motor can replace the Allen-Bradley 1326 servo motor in the traditional series of 1326AB, 1326AS, F Series, H Series (S Series), N Series and W Series. All components for mounting and connecting the Elwood 1326AB-B740E-M2L servo motor, such as windings, connectors and mounting hardware, are OEM components and RoHS compliant.
1326AB-B740E-M2L servo motor is Torque Plus series servo motor with TENV structure, UL-certified insulation system, 3-phase sinusoidal stator field for smooth low-speed operation, 100% continuous rated output torque (0 RPM) at motor stall, And can be installed vertically at an Angle, with the shaft facing up or down, for increased efficiency and optimal performance. The 1326AB-B740E-M2L servo motor can operate at 460 volts AC or 380 volts AC. It outputs 12.7 kilowatts of output, and its system has a continuous stall current of 32 amps. Its maximum rated motor speed is 460 RPM at 3400 volts AC and 2800 RPM at 380 volts AC
Has the following standard features:
? Permanent magnet rotors increase servo response.
? Three-phase sinusoidal winding stator field directly transfers heat to
Environment, low speed and smooth operation.
? Brushless parser provides position, commutation and velocity feedback
Message. This also provides durability in harsh environments
With on-board electronics attached to the motor. 1391 Group A Group B (optional)
Encoder output (up to 2048 ppr) is generated by parser feedback.
?100% continuous rated output torque at stall (zero rpm).
? Precise balance of total peaks 0.0005o(0.0127 mm)
Displacement.
? Vertical shaft mounting up and down.
?TENV structure.
?IP65 rating (when used with shaft sealing options), withstands harsh conditions
The environment. The motor is dustproof and can withstand pulsating water
