基本細節:330130-080-12-05 8毫米接近傳感器 應用是振動和位置測量流體膜軸承機

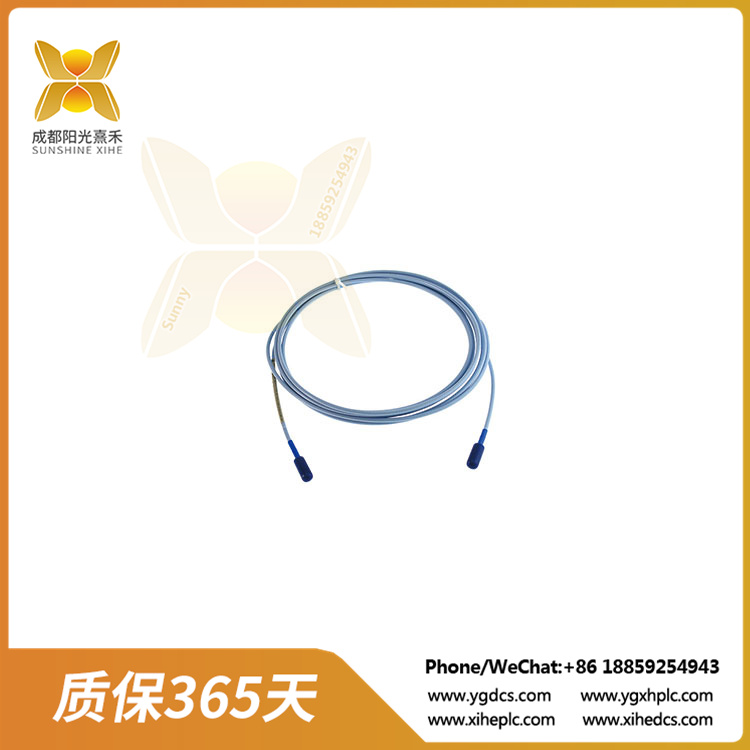

330130-080-12-05
3300 XL 8毫米接近傳感器系統包括:
一個3300 XL 8毫米探頭，
一根3300 XL延長線1，和
一個3300 XL Proximitor*傳感器2。
該系統提供的輸出電壓與探頭尖端與觀察到的導電表面之間的距離成正比，可以測量靜態(位置)和動態(振動)值。該系統的主要應用是振動和位置測量流體膜軸承機，以及關鍵相量*參考和速度測量3。
3300 XL 8毫米系統在我們的渦流接近傳感器系統中提供了最先進的性能。標準的3300 XL 8毫米5米系統在機械配置、線性范圍、精度和溫度穩定性方面也完全符合美國石油協會(API) 670標準(第4版)。所有3300 XL 8mm近距離傳感器系統都提供這種級別的性能，并支持探頭，延長電纜和Proximitor傳感器的完全互換性，無需匹配或臺架校準單個組件。每個3300 XL 8mm傳感器系統組件向后兼容和可互換4與其他非XL 3300系列5mm和8mm傳感器系統組件5。這種兼容性包括3300 5毫米探頭，用于8毫米探頭對可用安裝空間太大的應用6,7。
Proximitor傳感器
3300 XL Proximitor傳感器與以前的設計相比進行了許多改進。它的物理包裝允許您在高密度的DINrail安裝中使用它。您也可以將傳感器安裝在傳統的面板安裝配置中，其中它與舊的Proximitor傳感器設計共享相同的4孔安裝“足跡”。安裝基礎的任何一個選項提供電氣隔離，消除了需要單獨的隔離板。3300 XL Proximitor傳感器對射頻干擾具有高度免疫力，可以將其安裝在玻璃纖維外殼中，而不會對附近的射頻信號產生不利影響。3300 XL Proximitor傳感器改進的RFI/EMI抗擾度滿足歐洲CE標志認證，無需特殊屏蔽導管或金屬外殼，從而降低了安裝成本和復雜性。3300 XL的SpringLoc端子條不需要特殊的安裝工具，通過消除螺桿類型，可以實現更快，更堅固的現場布線連接可松開的夾緊機構。

330130-080-12-05

330130-080-12-05
3300 XL 8mm proximity sensor system includes:
A 3300 XL 8mm probe,
A 3300 XL extension cord 1, and
A 3300 XL Proximitor* sensor 2.
The system provides an output voltage that is proportional to the distance between the probe tip and the observed conductive surface, allowing both static (position) and dynamic (vibration) values to be measured. The main applications of the system are vibration and position measurement of fluid film bearing machines, as well as critical phasor * reference and velocity measurement3.
The 3300 XL 8mm system offers state-of-the-art performance in our vortex proximity sensor system. The standard 3300 XL 8 mm 5 meter system is also fully compliant with the American Petroleum Institute (API) 670 standard (4th edition) in terms of mechanical configuration, linear range, accuracy and temperature stability. All 3300 XL 8mm proximity sensor systems deliver this level of performance and support full interchangeability of probe, extension cable and Proximitor sensors without the need to match or bench calibrate individual components. Each 3300 XL 8mm sensor system component is backward compatible and interchangeable 4 with other non-XL 3300 series 5mm and 8mm sensor system components 5. This compatibility includes 3300 5 mm probes for 8 mm probes in applications where the available mounting space is too large 6,7.
Proximitor sensor
The 3300 XL Proximitor sensor features a number of improvements over previous designs. Its physical packaging allows you to use it in high-density DINrail installations. You can also mount the sensor in a traditional panel mount configuration, where it shares the same 4-hole mount “footprint” as the older Proximitor sensor design. Either option of mounting the base provides electrical isolation, eliminating the need for separate isolation panels. The 3300 XL Proximitor sensor is highly immune to RF interference and can be installed in a fiberglass housing without adversely affecting nearby RF signals. The improved RFI/EMI immunity of the 3300 XL Proximitor sensor meets the European CE Mark and eliminates the need for special shielded ducts or metal housings, reducing installation costs and complexity. The 3300 XL’s SpringLoc terminal strip does not require special mounting tools, and by eliminating screw types, allows for faster, more robust field wiring connections to loosen clamping mechanisms.
