基本細節:2711P-T6C5D 嵌入式觸摸屏操作界面 具有 5.5 英寸彩色有源矩陣

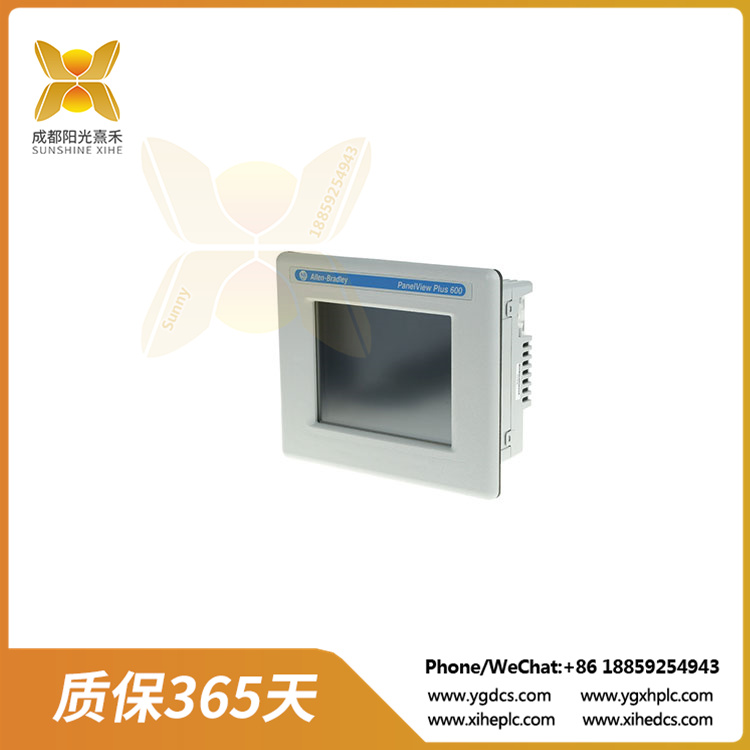

2711P-T6C5D 是 Allen-Bradley 的圖形操作終端。它是 PanelView Plus 600 操作終端的一部分。它是一款人機界面 （HMI） 設備，由 18-30VDC 的外部電源電壓范圍供電，具有 5.5 英寸彩色有源矩陣、帶液晶顯示器 （LCD） 的薄膜晶體管 （TFT）。它具有嵌入式觸摸屏操作界面，并提供多個通信接口，例如一 （1） 個 RS-232 和兩 （2） 個 USB 端口。
2711P-T6C5D 系列 D PanelView Plus 6 終端是一款操作員界面終端，可為機器控制器應用提供接口解決方案。該終端專為需要以圖形方式監視、控制和顯示應用信息的工業應用而設計，它為用戶提供了增強和簡化的應用狀態可視化。2711P-T6C5D 系列 D 端子屬于 D 系列 PanelView Plus 6 600 端子產品線，需要直流電壓輸入才能運行。該端子可接受的輸入電壓范圍在 18 到 32 伏直流電之間，并且具有其他電氣額定值，包括 15 瓦的最大功率輸出和 0.6 安培的電流。2711P-T6C5D 系列 D 終端通過 8.7 英寸彩色有源矩陣 TFT 觸摸屏提供圖形顯示，也可用于數據輸入和應用過程控制。它具有 256 MB 的板載 RAM 和 512 MB 的非易失性閃存。
2711P-T6C5D 系列 D 終端集成 SD 卡插槽，支持使用 SD 卡進行文件傳輸和外部存儲器存儲。2711P-T6C5D 系列 D 終端配有 1 個 USB 2.0 主機端口和 1 個 USB 2.0 設備端口，用于連接 PC 和其他支持的外圍設備。它出廠時裝有 FactoryTalk View Machine Edition Station 軟件（一個集成的運行時系統），并配置了 FactoryTalk View Studio 軟件，該軟件支持在所有 PanelView Plus 終端上簡化應用程序開發。2711P-T6C5D 系列 D 終端運行 Microsoft Windows CE 操作系統，可以配置為開放或封閉的桌面環境。該終端只有一個 RS-232 打印機端口作為文件傳輸和控制器通信的標準通信端口

2711P-T6C5D

The 2711P-T6C5D is Allen-Bradley’s graphic operating terminal. It is part of the PanelView Plus 600 operating terminal. It is a human-machine interface (HMI) device powered by an external supply voltage range of 18-30VDC, with a 5.5-inch color active matrix, thin-film transistor (TFT) with a liquid crystal display (LCD). It has an embedded touch screen operating interface and provides multiple communication interfaces, such as one (1) RS-232 and two (2) USB ports.
The 2711P-T6C5D Series D PanelView Plus 6 terminal is an operator interface terminal that provides an interface solution for machine controller applications. Designed for industrial applications where application information needs to be monitored, controlled, and displayed graphically, the terminal provides users with enhanced and simplified visualization of application status. The 2711P-T6C5D Series D terminals belong to the D Series PanelView Plus 6 600 terminal product line and require a DC voltage input to operate. The terminal has an acceptable input voltage range between 18 and 32 volts DC and has other electrical ratings, including a maximum power output of 15 watts and a current of 0.6 amps. The 2711P-T6C5D Series D terminal provides a graphical display via a 8.7-inch color active matrix TFT touch screen and can also be used for data entry and application process control. It has 256 MB of on-board RAM and 512 MB of non-volatile flash memory.
The 2711P-T6C5D Series D terminal integrates an SD card slot to support file transfer and external memory storage using SD cards. The 2711P-T6C5D Series D terminal comes with one USB 2.0 host port and one USB 2.0 device port for connecting PCS and other supported peripherals. FactoryTalk View Machine Edition Station software (an integrated runtime system) is shipped with FactoryTalk View Studio software. The software enables simplified application development on all PanelView Plus terminals. The 2711P-T6C5D Series D terminal runs the Microsoft Windows CE operating system and can be configured as an open or closed desktop environment. The terminal has only one RS-232 printer port as the standard communication port for file transfer and controller communication

如果您需要查詢或購買，請將產品型號發送到我的電子郵件或直接致電我

銷售經理:何經理

手機: + 86 18005021035

郵箱:?18005021035@163.com

與成都陽光熹禾合作我們提供一流的服務，實現更快的速度，交付多樣化的零件!

1.在24小時內及時回復您

2.交貨時間快

3.最好的服務，合理的價格

4.在生產線上工作多年，有良好的口碑

▲更多相關型號:2711P-T6C5D 嵌入式觸摸屏操作界面 具有 5.5 英寸彩色有源矩陣
