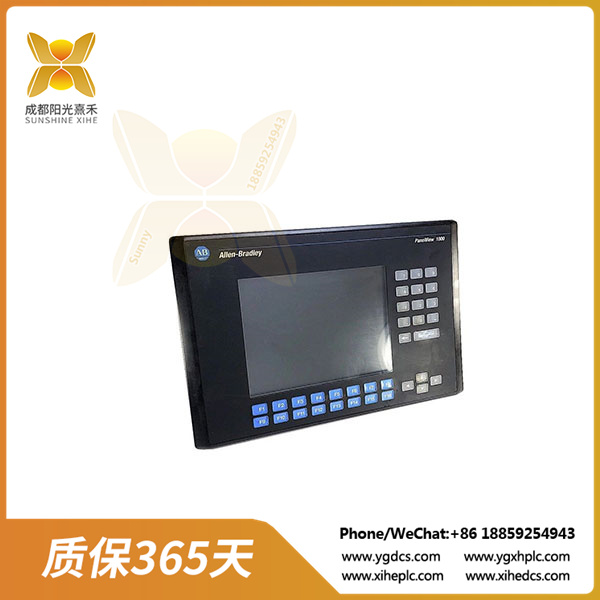

基本細節:2711-K10C10 圖形終端 用于各種監控和機器控制應用

2711-K10C10是 PanelView 1000圖形終端的一部分。它用于各種監控和機器控制應用。2711-K10C10終端有一個10英寸的鍵盤和帶導航按鈕的彩色顯示屏。該終端支持32種標準顏色，分辨率為640×480，它的尺寸為11.11×16.64×4.40英寸。它重8.2磅。它具有1008 KB非易失性存儲器、310 KB RAM和85-264V交流輸入電壓。對于通信，它有DeviceNet上傳或下載應用程序。2711-K10C10配有NEMA 12/13或4X外殼，僅供室內使用。2711-K10C10終端具有定制設計的應用程序，易于使用。它支持高級報警處理以存儲信息，并配有一個RS-232端口用于在線打印，它還支持各種通用語言。其他功能包括模擬儀表、屏幕安全和存儲卡支持，以實現更好的控制，它有各種端口用于連接掃描儀、PLC、SLC或Logix控制器。
Alen-Bradley 2711-K10C10是PanelView Plus 1000操作員終端的一部分，用作PaneView標準操作員終端。該電子硬件特別是屬于PanelView550標準子類別的人機界面(HMI)設備。
2711-K10C10通常齊平安裝在外殼上，可提供足夠的保護，防止工業污染物和危險環境，建議安裝在額定NEMA類型12、13、4X(僅室內使用)ECIP54和IP65的工業外殼中，該作員終端的工作溫度范圍為0..55’C(32..131°),儲存溫度為-25..70°C(-13.158°日)。它必須水平安裝在一個平面上，振動限制在2 g到2000赫茲，沖擊限制在30 g。
2711-K10C10有一個10英寸的彩色顯示屏，使該操作員終端能夠顯示彩色靜態圖形并實現彩色編碼動畫，對于操作員輸入，它配備了一個不銹鋼圓頂薄膜鍵盤，由功能鍵、導航鍵和數字按鈕組成，使用壽命為100萬次按壓，對于通信，2711-K10C10有一個集成的DeviceNet和RS-232打印機接口。它還配備了1008 KB的非易失性存儲器和310 KB的隨機存取存儲器。

2711-K10C10

The 2711-K10C10 is part of the PanelView 1000 graphics terminal. It is used in a variety of monitoring and machine control applications. The 2711-K10C10 terminal has a 10-inch keyboard and a color display with navigation buttons. The terminal supports 32 standard colors, has a resolution of 640×480, and it measures 11.11×16.64×4.40 inches. It weighs 8.2 pounds. It has 1008 KB of non-volatile memory, 310 KB of RAM, and 85-264V AC input voltage. For communication, it has DeviceNet to upload or download applications. The 2711-K10C10 comes with a NEMA 12/13 or 4X housing for indoor use only. The 2711-K10C10 terminal features custom designed applications and is easy to use. It supports advanced alarm processing to store information and comes with an RS-232 port for online printing, and it also supports a variety of general-purpose languages. Other features include analog meters, screen security and memory card support for better control, and it has a variety of ports for connecting scanners, PLCS, SLC or Logix controllers.
The Alen-Bradley 2711-K10C10 is part of the PanelView Plus 1000 operator terminal and is used as the PaneView Standard operator terminal. The electronic hardware in particular falls under the Human Machine Interface (HMI) device subcategory of the PanelView550 standard.
The 2711-K10C10 is usually mounted flush on the housing to provide adequate protection against industrial contaminants and hazardous environments, and is recommended for installation in industrial housing rated NEMA types 12, 13, 4X(indoor use only)ECIP54 and IP65, with the operator terminal operating in a temperature range of 0… 55’C(32.. 131°) at a storage temperature of -25… 70°C(-13.158° day). It must be mounted horizontally on a plane with vibration limited to 2 g to 2000 Hz and shock limited to 30 g.
The 2711-K10C10 has a 10-inch color display that enables this operator terminal to display color static graphics and achieve color coded animation, for operator input, it is equipped with a stainless steel dome film keyboard consisting of function keys, navigation keys, and numeric buttons, with a lifetime of 1 million presses, and for communication, The 2711-K10C10 has an integrated DeviceNet and RS-232 printer interface. It is also equipped with 1008 KB of non-volatile memory and 310 KB of random access memory.
