關于：5069-L340ERM?

5069-L340ERM 是一款支持運動控制的 CompactLogix 5380 控制器。它是一款可編程自動化控制器（PAC），主要具有 4Mb 用戶存儲器和 2 GB 非易失性存儲器，由控制器隨附的 1784-SD2 安全數字（SD）卡提供。除了這些內置內存容量外，5069-L340ERM 還提供雙以太網 I/P 接口，支持快速以太網和千兆速度，特別是 10 / 100 Mbps 和 1000 Gbps。

此控制器支持的以太網網絡拓?fù)浒ň€性、星形和設備級環形（DLR）拓?fù)?。使用線性和星形，建立單純形和直通連接。通過DLR，實現了網絡冗余和容錯，提高了通信網絡的可用性。此控制器最多可處理 90 個以太網節點和 32 個套接字連接。只有以太網端口用于工業通信，例如與監控和數據采集（SCADA）系統、人機界面（HMI）和其他控制系統的通信。

5069-L340ERM 運動功能包括支持最多 256 個運動軸，這些運動軸可以由 CIP 驅動軸、虛擬軸、消耗、再生 AC/DC 轉換器和非再生 AC/DC 轉換器軸類型的任意組合組成。此外，此控制器最多可配置 20 個通用工業協議（CIP）驅動軸。要配置此控制器，請使用 Studio 5000 Logix Designer（更高版本 31）。
它還支持多達 32 個插槽接口、90 個以太網/IP 節點和多達 31 個本地 I/O 模塊，并支持以太網/IP 的雙 IP 模式和線性/DLR 模式。此控制器上的端口是 1 個 B 型 USB 2.0 端口和 2 個以太網/IP 端口，它們是 10-100 Mbps 和 1 Gbps 的全雙工和以太網性能。5069-L340ERM 還具有 4 MB 控制器容量、控制器隨附的 1784-SD2 2 GB 存儲卡。

5069-L340ERM 控制器的集成運動高達 256 軸。5069-L340ERM 的模塊電源總線（MOD Power）額定電流為 9.55 A，最大電流為 450 mA，浪涌為 850 mA，持續 125 ms，而其電壓范圍和直通電壓范圍均為 18-32V DC。該控制器的傳感器執行器（SA）最大現場功率電流為交流電源 25 mA，直流電源為 10 mA，電源總線最大額定電流為交流電源 9.975 A，直流電源最大額定電流為 9.95 A，現場電源電壓范圍和直通電壓范圍均為 0-32V DC， 0-240V AC，47-63 Hz 和 ATEX/IECEX，最大電壓為 125V AC。

5069-L340ERM 常見問題
5069-L340ERM 是否需要使用可拆卸接線端子（RTB）？
是的。RTB 用于終止 MOD 和 SA 端子的電源。
與此控制器一起使用的兼容 RTB 有哪些？
兼容的 RTB 包括 5069-RTB6-SCREW 和 5069-RTB4-SCREW 以及 5069-RTB6-SPRING 和 5069-RTB4-SPRING。
操作此控制器的電壓要求是多少？
5069-L340ERM 由 18-32V DC 的外部電源電壓范圍供電。
5069-L340ERM的技術說明
Allen-Bradley 5069-L340ERM 是一款 CompactLogix 5380 控制器。該控制器是 Logix 5000 控制器系列的一部分。它具有 4 MB 用戶內存，支持多達 31 個本地 I/O 模塊，集成了 2 個以太網通信端口和 1 個 USB 端口接口。該控制器支持多達 256 個運動軸和 20 個 CIP 驅動軸。

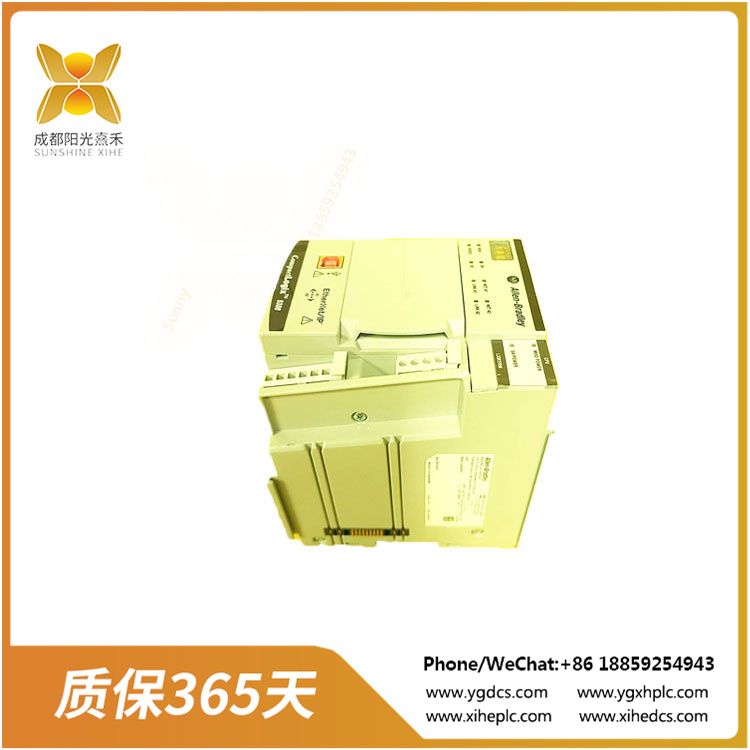

5069-L340ERM

The 5069-L340ERM is a CompactLogix 5380 controller that supports motion control. It is a programmable automation controller (PAC) with primarily 4Mb of user memory and 2 GB of non-volatile memory, provided by the 1784-SD2 secure digital (SD) card that comes with the controller. In addition to these built-in memory capacities, the 5069-L340ERM offers dual Ethernet I/P interfaces that support fast Ethernet and gigabit speeds, specifically 10/100 Mbps and 1000 Gbps.

Ethernet network topologies supported by this controller include linear, star, and device level ring (DLR) topologies. Simplex and straight-through connections are established using linear and star shapes. Through DLR, network redundancy and fault tolerance are realized, and the availability of communication network is improved. This controller can handle up to 90 Ethernet nodes and 32 socket connections. Only Ethernet ports are used for industrial communications, such as with supervisory control and data acquisition (SCADA) systems, human machine interfaces (HMI), and other control systems.

The 5069-L340ERM motion features include support for up to 256 motion axes, which can be composed of any combination of CIP drive shaft, virtual shaft, consumption, regenerative AC/DC converter and non-regenerative AC/DC converter shaft types. In addition, the controller can be configured with up to 20 Common Industrial Protocol (CIP) drive shafts. To configure this controller, use the Studio 5000 Logix Designer (later version 31).
It also supports up to 32 slot interfaces, 90 Ethernet /IP nodes, and up to 31 local I/O modules, and supports Ethernet /IP dual-IP mode and linear /DLR mode. The ports on this controller are 1 Type B USB 2.0 port and 2 Ethernet /IP ports, which are 10-100 Mbps and 1 Gbps full duplex and Ethernet performance. The 5069-L340ERM also has a 4 MB controller capacity and a 1784-SD2 2 GB memory card that comes with the controller.

The 5069-L340ERM controller has integrated motion up to 256 axes. The 5069-L340ERM’s MOD Power is rated at 9.55A, with a maximum current of 450 mA, a surge of 850 mA, and a duration of 125 ms, while its voltage range and through voltage range are 18-32V DC. The maximum field power current of the sensor actuator (SA) of the controller is 25 mA for AC power supply, 10 mA for DC power supply, the maximum rated current of the power bus is 9.975 A for AC power supply, and the maximum rated current of the DC power supply is 9.95 A. The field power supply voltage range and through voltage range are 0-32V DC. 0-240V AC, 47-63 Hz and ATEX/IECEX, maximum voltage is 125V AC.

5069-L340ERM Frequently Asked Questions
5069-L340ERM Do I need to use detachable terminal blocks (RTB)?
Yes. RTB Terminates the power supply to the MOD and SA terminals.
What are the compatible RTBS that are used with this controller?
Compatible RTBS include 5069-RTB6-SCREW and 5069-RTB4-SCREW and 5069-RTB6-SPRING and 5069-RTB4-SPRING.
What are the voltage requirements to operate this controller?
The 5069-L340ERM is powered by an external supply voltage range of 18-32V DC.
Technical specifications for the 5069-L340ERM
The Allen-Bradley 5069-L340ERM is a CompactLogix 5380 controller. The controller is part of the Logix 5000 controller family. It has 4 MB of user memory, supports up to 31 local I/O modules, and integrates 2 Ethernet communication ports and 1 USB port interface. The controller supports up to 256 motion axes and 20 CIP drive axes.
