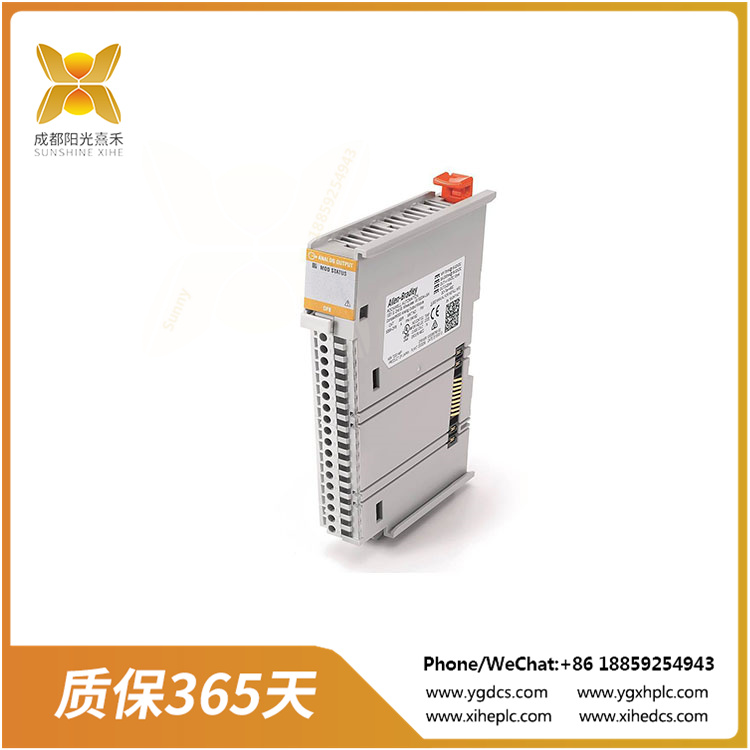

關于：5069-RTB5-SCREW

5069-RTB5-SCREW 模塊是拆卸接線端子套件，可連接 CompactLogix 5380 型控制器;套件和控制器本身均由羅克韋爾自動化制造。CompactLogix 控制器用于解決各種應用的控制器解決方案，從獨立應用到更復雜的系統，設備通過 EtherNet/IP 網絡互連和通信。

5069-RTB5-SCREW 的重量大約超過 500 克。拆卸接線端子的電源通過 MOD 和 SA 電源連接器供電，不得超過 24 伏直流 （DC）。5069-RTB5-SCREW 可與各種附件（如端蓋、存儲卡和以太網通信電纜）一起使用。RTB 通過將其連接到 5069-AEN2TR 適配器來安裝在控制器上，該適配器還包含上述各種其他附件。

為安全起見，單個 RTB 端子上連接的導線不應超過一根。所有電源輸入必須通過接地總線接地，以免觸電對操作人員造成傷害。RTB具有接地端子，可在電路和耳材之間提供低阻抗路徑;它還有助于減少白噪聲。將模塊固定到控制器上所需的材料，包括一定量的絕緣線和螺絲刀。剝離絕緣線，將裸露的銅（不超過 0.39 英寸）插入各個端子的螺絲點。接下來，操作員轉動螺絲刀將電線閉合到端子中，將螺釘擰緊在 0.5 N-m 和 0.6 N-m 之間。所有這些步驟都應在與 SA AC 的電源連接關閉時完成，以避免可能導致爆炸的電弧。

5069-RTB5-SCREW

5069-RTB5-SCREW module is a detached-terminal kit that can be connected to CompactLogix 5380 controller; Both the kit and the controller itself are manufactured by Rockwell Automation. CompactLogix Controllers Controller solutions for a variety of applications, from standalone applications to more complex systems where devices are interconnected and communicate over EtherNet/IP networks.

The 5069-RTB5-SCREW weighs about more than 500 grams. The power supply for removing the terminal is powered through the MOD and SA power connectors and must not exceed 24 volts DC. The 5069-RTB5-SCREW can be used with a variety of accessories such as end caps, memory cards, and Ethernet communication cables. The RTB is installed on the controller by connecting it to the 5069-AEN2TR adapter, which also contains various other accessories mentioned above.

For safety reasons, no more than one wire should be connected to a single RTB terminal. All power inputs must be grounded through the grounding bus to avoid injury to the operator by electric shock. The RTB has a ground terminal to provide a low impedance path between the circuit and the earpiece; It also helps reduce white noise. Materials required to secure the module to the controller include a certain amount of insulated wire and a screwdriver. Strip the insulated wire and insert the exposed copper (no more than 0.39 inches) into the screw points of each terminal. Next, the operator turns the screwdriver to close the wire into the terminal, tightening the screw between 0.5 N-m and 0.6 N-m. All of these steps should be done while the power connection to the SA AC is off to avoid arcing that could cause an explosion.
