★★★產品介紹：
CX1020 |基本CPU模塊
CX1020 |基本CPU模塊
1 CX1020基本模塊的CPU為1ghz Intel?CPU。該控制器不需要風扇或其他旋轉組件。除提供CPU和芯片組外，CX1020還提供不同尺寸的主存?？刂破鲝腃ompact Flash啟動。
CX1020的基本配置包括1個128mb的Compact Flash卡和2個以太網RJ45接口。這些接口連接到一個內部交換機，并提供了一個簡單的選項來創建線路拓?fù)?，而不需要額外的以太網交換機。所有其他CX系列組件都可以通過PC/104接口連接，該接口在兩側可用。被動式冷卻模塊包含在供貨范圍內。操作系統可以是Windows Embedded CE 6或Windows Embedded Standard 2009。TwinCAT 2自動化軟件將CX1020系統轉換為功能強大的PLC和運動控制系統，可以使用或不使用可視化操作。與CX1010相反，CX1020也可用于用TwinCAT 2 NC I插值軸運動。
進一步的系統接口或現場總線連接可以添加到基本CPU模塊。說明CPU需要選配CX1100類型的電源模塊。CX系列的所有CX1500現場總線模塊和CX1100電源均可與CX1020配合使用。
嵌入式PC CX1020也可作為訂購選項CX1900-0320，具有零秒級緩存。使用的不是具有512 kB二級緩存(L2)的1 GHz處理器，而是沒有二級緩存(L2 = 0 kB)的較便宜的處理器變體。由于CX1900-0320采用與CX1020相同的855GME芯片組，所以CX1020的基本特性沒有改變，只是CPU功耗略低。
CX1020-0000
★★★英語介紹:

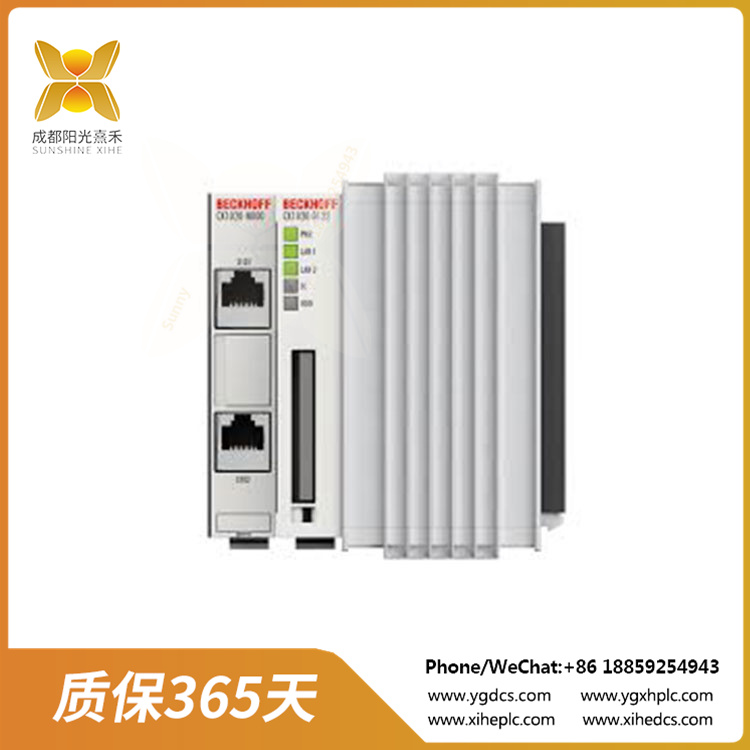

CX1020 | Basic CPU module
CX1020 | Basic CPU module
1 The CX1020 basic module uses a 1 GHZ Intel?CPU. The controller does not require fans or other rotating components. In addition to the CPU and chipset, the CX1020 also offers different sizes of main memory. The controller starts from Compact Flash.
The CX1020 basic configuration includes one 128mb Compact Flash card and two Ethernet RJ45 ports. These interfaces connect to an internal switch and provide an easy option to create line topologies without the need for additional Ethernet switches. All other CX series components can be connected via the PC/104 interface, which is available on both sides. Passive cooling modules are included in the scope of supply. The operating system can be Windows Embedded CE 6 or Windows Embedded Standard 2009. TwinCAT 2 automation software converts the CX1020 system into a powerful PLC and motion control system with or without visual operation. In contrast to the CX1010, the CX1020 can also be used to interpolate axis motion with TwinCAT 2 NC I.
Further system interfaces or fieldbus connections can be added to the base CPU module. The CPU needs to be equipped with CX1100 power modules. All CX1500 fieldbus modules and CX1100 power supplies of the CX series can be used with the CX1020.
The embedded PC CX1020 is also available as a ordering option CX1900-0320 with zero-second level cache. Instead of a 1 GHz processor with a 512 kB secondary cache (L2), a cheaper processor variant without a secondary cache (L2 = 0 kB) was used. Since the CX1900-0320 uses the same 855GME chipset as the CX1020, the basic features of the CX1020 have not changed, except that the CPU power consumption is slightly lower.
CX1020-0000
