??產品介紹:

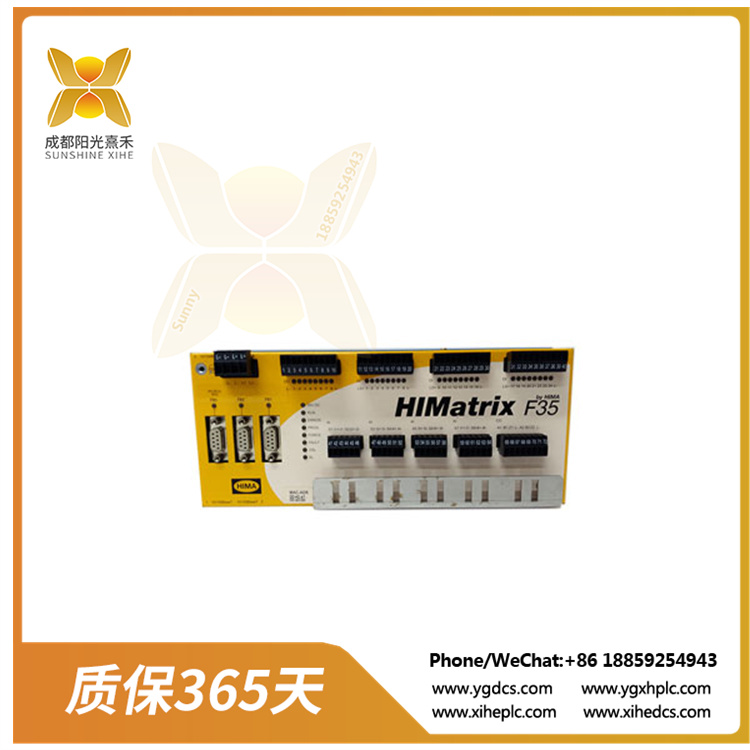

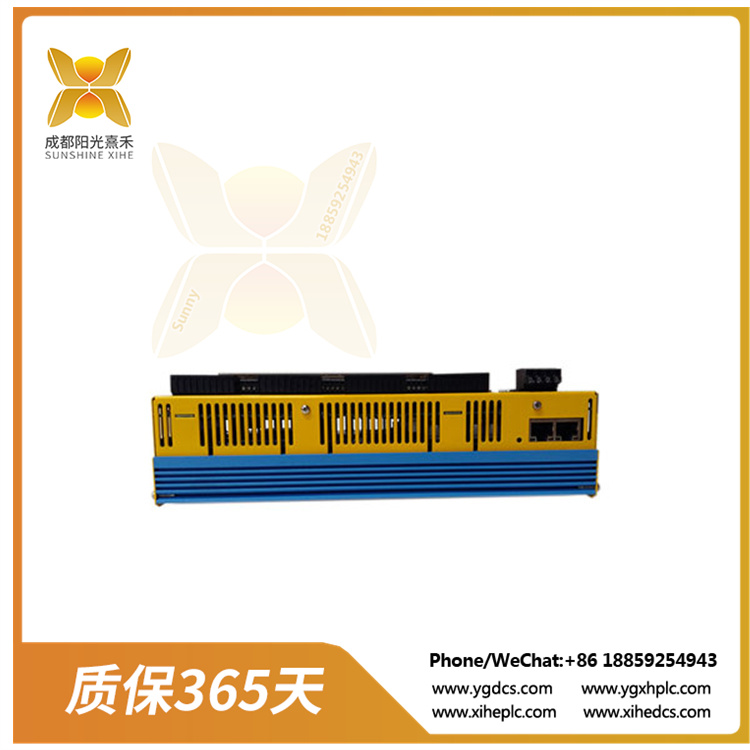

安全相關的f3503控制器是一個緊湊的系統,在一個金屬外殼24數字
輸入,8個數字輸出,2個計數器和8個模擬輸入。
該控制器有多種型號,如表5所示。
使用SILworX進行配置,請參見4.3章。
設備適用于SOE (sequence of events recording),參見4.2章。該設備
支持多任務處理和重新加載。有關詳細信息,請參閱系統手冊
系統(HI 800 141 E)。
該器件為TüV-certified,適用于SIL 3 (IEC 61508, IEC 61511)的安全相關應用
和IEC 62061), Cat. 4和PL e (EN ISO 13849-1)和SIL 4 (EN 50126, EN 50128和
EN 50129)。
進一步的安全標準、應用標準和測試標準在
HIMA網站上提供的證書。

F3503SILWORX
控制器配有安全相關的數字輸入和輸出,安全相關的計數器和安全相關的模擬輸入。
故障時的反應
如果設備檢測到數字輸入故障,用戶程序處理低電平輸入
符合斷電脫扣原則。
設備激活FAULT LED。
除了通道信號值外,用戶的程序也必須考慮相應的
錯誤代碼。
錯誤代碼允許用戶在用戶程序中配置額外的故障反應。
線路控制
F35系統不能配置短路和開路檢測,例如:
緊急停止輸入符合第4類和PL e
En iso 13849-1。
安全相關的數字輸出
控制器配有8個數字輸出。每個輸出的狀態(HIGH, LOW)為
由單個LED (HIGH, LOW)發出信號。
在最高環境溫度下,每個輸出1…3和5……7 .可裝載
0.5 A,輸出4和8可以在環境溫度高達50℃時加載1 A或2 A。
在60 ~ 70°C的溫度范圍內,F(xiàn)35 034的所有輸出都可以加載0.5 a。
如果發生過載,一個或所有數字輸出被關閉。如果過載消除,輸出將自動重新接通,見表21。
輸出的外部線不被監視,但是,檢測到的短路發出信號。
??英語介紹:
The safety-related f3503 controller is a compact system with 24 figures in a metal housing
Inputs, 8 digital outputs, 2 counters and 8 analog inputs.
The controller is available in a variety of models, as shown in Table 5.
For configuration using SILworX, see Chapter 4.3.
The device applies to the sequence of events recording (SOE). For details, see Chapter 4.2. This equipment
Supports multitasking and reload. Refer to the system manual for more information
System (HI 800 141 E).
The device is TUV-certified for safety-related applications with SIL 3 (IEC 61508, IEC 61511)
And IEC 62061), Cat.4 and PL e (EN ISO 13849-1) and SIL 4 (EN 50126, EN 50128 and
EN 50129).
Further safety standards, application standards and test standards are in
Certificates available on the HIMA website.
The controller is equipped with safety-related digital inputs and outputs, safety-related counters and safety-related analog inputs.

F3503SILWORX
Reaction in case of failure
If the device detects a digital input fault, the user program handles the low-level input
Meet the power trip principle.
Device activated FAULT LED.
In addition to the channel signal value, the user’s program must also consider the corresponding
The error code.
Error codes allow the user to configure additional fault responses in the user program.
Line control
The F35 system cannot be configured with short and open circuit detection, such as:
Emergency stop input conforms to Class 4 and PL e
En iso 13849-1.
Security related digital output
The controller is equipped with 8 digital outputs. The state of each output (HIGH, LOW) is
It is signaled by a single LED (HIGH, LOW).
At maximum ambient temperature, each output is 1… Three and five… 7. Loadable
0.5A, outputs 4 and 8 can load 1 A or 2 A at ambient temperatures up to 50 ° C.
In the temperature range of 60 to 70°C, all outputs of the F35 034 can be loaded at 0.5 a.
If an overload occurs, one or all digital outputs are turned off. If the overload is eliminated, the output is automatically reconnected, as shown in Table 21.
The external line of the output is not monitored, however, a short circuit detected sends a signal.
