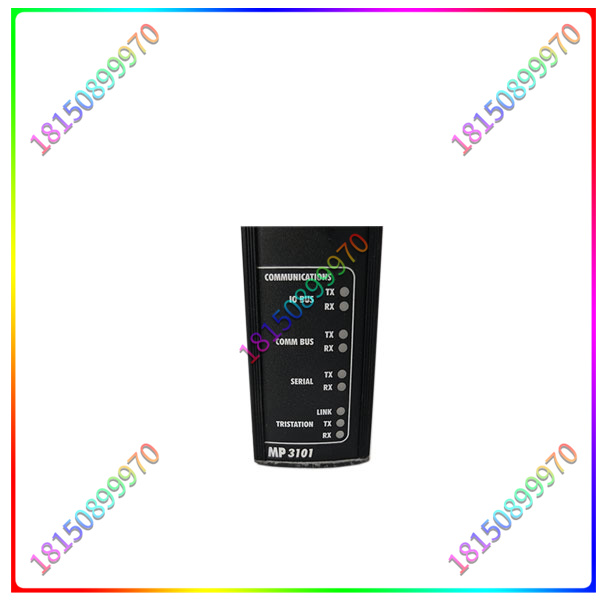

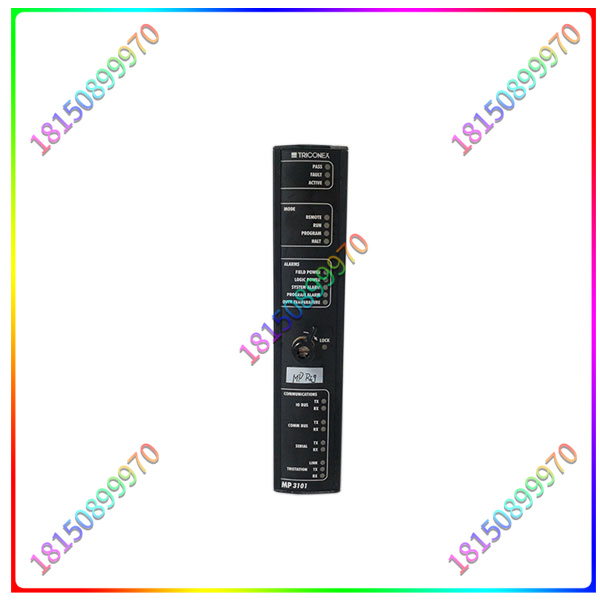

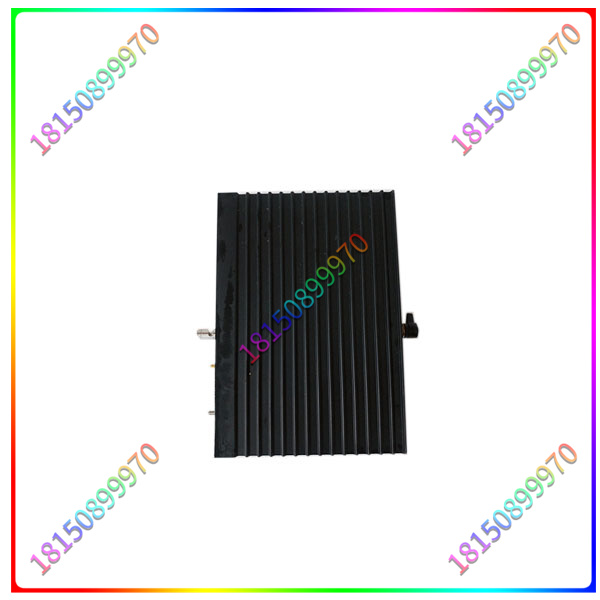

3101 TRICONEX 主處理器模塊
制造商: Triconex
產品編號*3101
產品類型:主處理器模塊
應用處理器sx處理器: Motorola MPC 860 32位50 mhzFLASH PROM: 6MB用于sx、ix和控制應用程序存儲crc保護。DRAM: 16 M用于SX控制應用程序和程序以及SOE數據字節奇偶校驗NVRAM: 8KB，用于保持變量crc保護輸入輸出處理器: 摩托羅拉MPC 860，32位，50 mhzDram: 16 MB，用于IOX執行字節校驗共享內存: 128 KB，用于與SX Byte奇偶通信診斷總線: 2 Mbps HDLC，用于在MP通道之間通信I/O模塊診斷信息,邏輯電源輸入電壓: 24V直流
工作電壓范圍: 24V直流-15%/+20%+5%交流紋波(+19.2/+30V直流)邏輯功率: 最大8W絕對最大輸入電壓:33伏直流絕對最大反向輸入電壓: -0.6V直流重量: 1.5公斤運輸重量:3公斤

3101 TRICONEX 可編程控制系統模塊可以說當今工業控制所要求的性能，PLC可滿足85%至90%。其不足部分可用其它辦法補充。近幾年來PLC也在不斷提高其技術內涵，融合了IT技術（包括以太網，因特網，無線網技術，現場總線技術，以及運用軟件工程方法提升PLC的編程語言，開發全新的編程系統，等等）。

3101

3101 TRICONEX 可編程控制系統模塊在開放性方面也有了實質性的突破。前十多年PLC被攻擊的一個重要方面就是它的專有性，現在有了極大的改觀。PLC采用了各種工業標準，如IEC 61131，IEEE802.3以太網，TCP/IP，UDP/IP等，各種事實上的工業標準，如Windows NT，OPC等。
PLC在硬件上也有長足進步。微電子技術的進展全都運用到PLC中，元器件的集成度越來越高，促使PLC成本下降和可靠性提高。專為PLC的CPU設計的PLC-on-a-chip芯片業已問世多年。PLC的高端產品在體系結構和操作系統上都有了質的變化,性能大幅提高。一個機架上可裝多個CPU模塊。也出現了以Web為基礎的PLC系列產品。PLC、軟PLC、IEC 61131在中國的未來
3101 TRICONEX 可編程控制系統模塊傳統的PLC制造業不會在可預見的未來在國內建立和發展。但不排除軟PLC在近期和可預見的未來，完全有可能在國內形成一定的氣候。軟PLC的I/O完全可以利用主流及一些有生命力的現場總線的系列產品。強實時操作系統可采用Windows CE，NTE，VenturCom的RTX以及其它；只要它們能實現控制的時間確定性，即保證能以時間高度一致的方式執行控制指令序列，并具有可預測的結果或行為。加入WTO以后，中國成為”世界制造工廠”的進程正在加速。我們有足夠的理由相信，PLC、軟PLC在中國的銷售的年增長率會顯著高于世界的平均年增長率。因此，對PLC、軟PLC以及IEC 61131的推廣應用，特別是高水平的技術支持變得十分重要。

3101

3101 TRICONEX main processor module
Manufacturer: Triconex
Product number *3101
Product type: Main processor module
Application Processor sx Processor: Motorola MPC 860 32-bit 50 mhzFLASH PROM: 6MB for sx, ix, and control application storage crc protection. DRAM: 16 M for SX control applications and programs and SOE data byte parity NVRAM: 8KB for holding variables crc protection Input/Output Processor: MOTOROLA MPC 860, 32-bit, 50 mhzDram: 16 MB for IOX performing byte check Shared memory: 128 KB, for parity communication with SX Byte diagnostic bus: 2 Mbps HDLC, for communication I/O module diagnostic information between MP channels, logic power input voltage: 24V DC
Operating voltage range: 24V DC -15%/+20%+5% AC ripple (+19.2/+30V DC) Logic power: Max 8W Absolute Max input voltage :33 V DC Absolute Max Reverse input voltage: -0.6V DC Weight: 1.5kg Transport weight: 3kg

The 3101 TRICONEX programmable control system module can say that the performance required by today’s industrial control, PLC can meet 85% to 90%. The deficiency may be supplemented by other means. In recent years, PLC is also continuously improving its technical connotation, integrating IT technology (including Ethernet, Internet, wireless network technology, fieldbus technology, and the use of software engineering methods to improve PLC programming language, develop a new programming system, etc.).
The 3101 TRICONEX programmable control system module is also a substantial breakthrough in openness. An important aspect of PLC attacks in the first decade or more is its exclusivity, and now it has greatly changed. PLC uses a variety of industry standards, such as IEC 61131, IEEE802.3 Ethernet, TCP/IP, UDP/IP, etc., a variety of de facto industry standards, such as Windows NT, OPC, etc.
PLC has also made great progress in hardware. The progress of microelectronics technology is all applied to PLC, and the integration of components is getting higher and higher, which promotes the cost reduction and reliability improvement of PLC. Plc-on-a-chip chips designed for PLC cpus have been available for many years. The high-end products of PLC have had qualitative changes in the architecture and operating system, and the performance has been greatly improved. Multiple CPU modules can be installed in one rack. There are also a series of PLC products based on Web. The future of PLC, soft PLC, IEC 61131 in China
3101 TRICONEX Programmable Control System module Traditional PLC manufacturing will not be established and developed in the country in the foreseeable future. However, it is not ruled out that soft PLC in the near future and foreseeable future, it is entirely possible to form a certain climate in the country. Soft PLC I/O can fully use the mainstream and some of the vitality of the fieldbus series products. Strong real-time operating system can use Windows CE, NTE, VenturCom RTX and others; As long as they can achieve temporal determinism of control, that is, they are guaranteed to execute sequences of control instructions in a highly time-consistent manner with predictable results or behaviors. After China’s accession to the WTO, the process of China becoming the “world’s manufacturing factory” is accelerating. We have enough reason to believe that the annual growth rate of PLC and soft PLC sales in China will be significantly higher than the world’s average annual growth rate. Therefore, the promotion and application of PLC, soft PLC and IEC 61131, especially the high level of technical support has become very important.

3101
