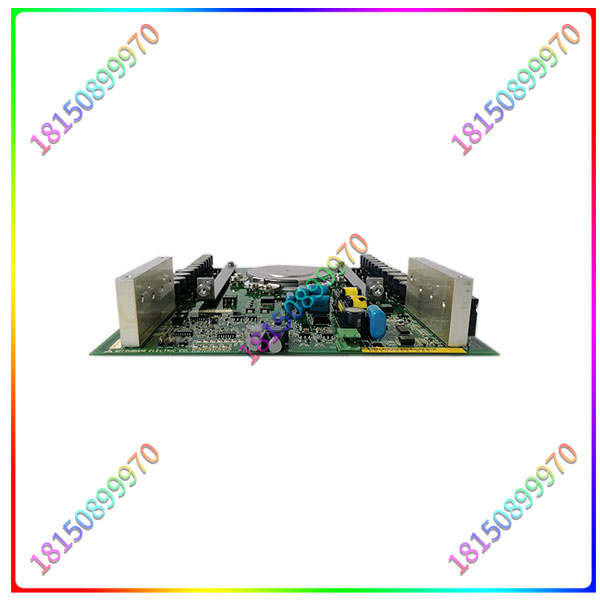

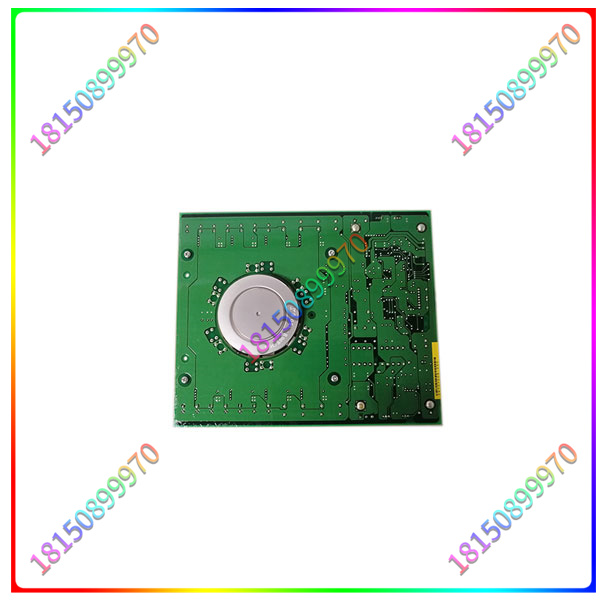

81001-450-53-R A-B高壓變頻器模塊

I.中央處理單元(CPU)

中央處理單元(CPU)是PLC的控制中樞。它按照PLC系統程序賦予的功能接收并存儲從編程器輸入的用戶程序和數據，檢查電源、存儲器、VO以及警戒定時器的狀態，并能診斷用戶程序中的語法錯誤:當PLC投入運行時，首先它以掃描的方式接收現場各輸入裝置的狀態和數據，并分別存入IO映像區，然后從用戶程序存儲器中逐條讀取用戶程序，經過命令解釋后，按指令的規定將邏輯或算術運算的結果送入Vo映像區或數據寄存器內。等所有的用戶程序執行完畢之后，最后將1/O映像區的各輸出狀態或輸出寄存器內的數據傳送到相應的輸出裝置，如此循環運行，直到停止運行為止。為了進一步提高PLC的可靠性，近年來對大型PLC還采用雙CPU構成冗余系統，或采用三CPU的表決式系統。這樣，即使某個CPU出現故障，整個系統仍能正常運行。

81001-450-53-R

存儲器

存放系統軟件的存儲器稱為系統程序存儲器。
(1) PLC常用的存儲器類型。
1) RAM (Random Assess Memory)。這是-一種讀/寫存儲器(隨機存儲器)其存取速度最快，由鏗電池支持。
2) EPROM (Erasable Progranmable Read Only Memory)。這是一種可擦除的只讀存儲
器在斷電情況下存儲器內的所有內容保持不變(在紫外線連續照射下可擦除存儲器內容)。
3) EPROM (Electrical Erasable Programmable Read Only Memory)。這是一種電可擦除的只讀存儲器。使用編程器就能很容易地對其所存儲的內容進行修改。
(2) PLC存儲空間的分配。雖然各種PLC的CPU的最大尋址空間各不相同，但是根
據PLC的工作原理其存儲空間一般包括以下三個區域:系統程序存儲區、系統RAM存儲
區(包括I/O映像區和系統軟設備等)、用戶程序存儲區。
1)系統程序存儲區。在系統程序存儲區中存放著相當于計算機操作系統的系統程序，
包括監控程序、管理程序、命令解釋程序、功能子程序、系統診斷子程序等。由制造廠商
將其固化在EPROM中，用戶不能直接存取。它和硬件一起決定了 該P(yáng)LC的性能。
2)系統RAM存儲區。系統RAM存儲區包括I/O映像區以及各類軟設備，如:邏輯
線圈、數據寄存器、計時器、計數器、變址寄存器、累加器等存儲器。
