電壓調整DECS-200調節發電機有效值電壓到內空載到滿負荷0.25%。它通過利用數字技術來做到這一點開發了信號處理和精確調節算法巴斯勒電氣，利用多年來積累的經驗制造數以萬計的數字穩壓器。穩定DECS-200利用比例(P)，積分(I)和導數(D)穩定性控制。DECS-200有20個預編程穩定性(PID)設置勵磁器現場應用。這意味著a標準穩定性設置已經可用于大多數應用程序/機器。DECS-200的穩定范圍允許用于自定義穩定性設置以微調穩定性到提供最佳的定制發電機暫態性能。設置軟件中包含PID選擇程序輔助確定正確的PID設置。

DECS-200規定定制的穩定性和瞬態性能的Min/最大勵磁限制器和var/PF控制器提供額外的穩定性調整。低頻限制器或V/Hz比限制器DECS-200可選低頻限幅器或aV/Hz比限制器功能。低頻限幅器的斜率可以以0.1Hz為增量，調諧到0到3倍p.u.伏特/Hz，拐角頻率滾降點可以在一個范圍內設置45至65Hz，以0.1Hz為增量。這種可調節性允許能精確匹配DECS-200的工作特性原動機和施加到發電機上的負載。的電壓/赫茲比限制器夾住調節設定點以防止的斜率所規定的高于V/Hz的電平decs – 200。

此功能對其他潛在的應用程序也很有用損壞系統的情況，如系統電壓的變化并減少超過V/Hz比的頻率情況。軟啟動電壓積累發電機電壓過調會對發電機產生危害如果不控制絕緣系統。DECS-200有軟啟動具有用戶可調設置的功能，以控制的速率允許發電機電壓逐漸升高。這減少了額定運行時發電機電壓超調量發電機系統啟動時的電壓。并聯補償DECS-200有兩個或更多發電機并聯的規定采用無功下垂或無功微分補償增加了一個帶二次的外部電流互感器電流為1或5ac。額定輸入電流小于1VA。這種低負荷意味著可以使用現有的計量ct不需要專門的ct。設定點控制DECS-200具有外部設定點調節的手段控制操作方式。這就消除了對附加設備，如電機操作電位器勵磁系統采用遙控或多點控制。工作模式的設定點可由升/下觸點輸入或輔助輸入4-20mA或±10伏直流。輔助輸入調節其工作模式預定調節范圍。輔助輸入可以是由其它控制裝置如電源提供的系統穩定劑。這些設備修改了操作滿足DECS-200特定的運行特性和要求，使機器在DECS-200控制下運行。

DECS-200-2L

兩個設定點控制的方法可以通過RS-232實現通信端口，使用Windows?PC軟件或通過RS-485端口使用Modbus?協議。不管采用哪種設定點方法(接觸輸入，輔助輸入?或與PC或PLC的通信)，所有模式的遍歷率操作方式可獨立調節。這意味著操作者可自定義調整速度和“手感”來滿足他/她的需要。

預定位輸入DECS-200提供了額外的靈活性，允許為每種操作模式預定工作點。帶著聯系人輸入到DECS-200，工作模式被驅動到an指定給該操作模式的操作或調節級別操作員或用戶。前置輸入以兩種方式之一操作模式，維護或釋放。維護模式防止

調整設定值只要預置接觸即可關閉。釋放模式允許調整設定值甚至雖然介詞是封閉的。此功能允許DECS-200可配置為具體的系統和應用需要。磁場電流調節工作模式

DECS-200提供了一個稱為Field的手動操作通道現行法規，或FCR，模式。在此模式下，DECS-200調節由內部PWM電源產生的場電流階段。

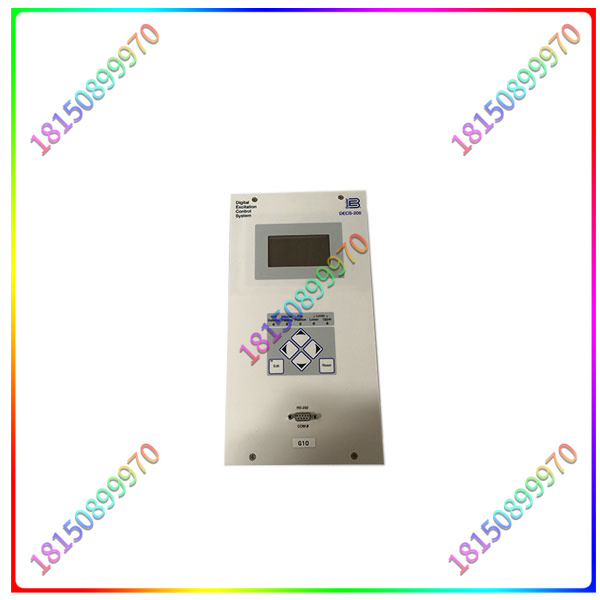

DECS-200-2L

Voltage Adjustment DECS-200 regulates the generator RMS voltage from internal no-load to full load by 0.25%. It does this by leveraging digital technology to develop signal processing and precision regulation algorithms, using years of experience to manufacture tens of thousands of digital regulators. The stable DECS-200 utilizes proportional (P), integral (I) and derivative (D) stability control. The DECS-200 has 20 pre-programmed stability (PID) setting exciters for field applications. This means that Standard a stability Settings are already available for most applications/machines. The stability range of the DECS-200 allows for custom stability Settings to be used to fine-tune the stability to provide optimal custom generator transient performance. The PID selector is included in the setup software to help determine the correct PID Settings.

The DECS-200 provides customized stability and transient performance with Min/ maximum excitation limiter and var/PF controllers for additional stability adjustment. Low frequency limiter or V/Hz ratio limiter DECS-200 Optional low frequency limiter or aV/Hz ratio limiter function. The slope of the low frequency limiter can be tuned in increments of 0.1Hz to 0 to 3 times p.u. Volts /Hz, the corner frequency roll down point can be set in a range of 45 to 65Hz, in 0.1Hz increments. This adjustability allows precise matching of the operating characteristics of the DECS-200 prime mover and the load applied to the generator. The voltage/Hertz ratio limiter clamps the regulation set point to prevent the slope specified above the V/Hz level decs-200.

This feature is also useful for other potential applications where the system is damaged, such as changes in the system voltage and reducing frequency cases that exceed the V/Hz ratio. Soft start voltage accumulation Generator voltage overregulation can cause damage to the generator if the insulation system is not controlled. The DECS-200 has a soft-start feature with user-adjustable Settings to control the rate allowing the generator voltage to gradually increase. This reduces the rated generator voltage overshoot when the generator system is started. Parallel compensation The DECS-200 provides for two or more generators in parallel using reactive sag or reactive differential compensation to add an external current transformer with a secondary current of 1 or 5ac. Rated input current less than 1VA. This low load means that existing metered ct can be used without the need for a specialized ct. Set point control The DECS-200 has a means of external set point adjustment to control the mode of operation. This eliminates the need for remote or multi-point control of additional devices such as motor operating potentiometer excitation systems. Set points for operating mode can be 4-20mA or ±10 V DC from up/down contact input or auxiliary input. Auxiliary input to adjust its operating mode predetermined adjustment range. The auxiliary input may be a system stabilizer provided by another control device such as a power supply. The operation of these devices is modified to meet the specific operating characteristics and requirements of the DECS-200, allowing the machine to operate under the control of the DECS-200.

Two setpoint control methods can be implemented via the RS-232 communication port, using Windows?PC software, or via the RS-485 port using the Modbus? protocol. No matter which set point method is used (contact input, auxiliary input? Or communication with PC or PLC), the traversal rate operation mode of all modes can be adjusted independently. This means that the operator can customize the speed and “feel” to suit his/her needs.

The pre-set input DECS-200 provides additional flexibility, allowing for pre-set operating points for each mode of operation. With the contact input to the DECS-200, the operating mode is driven to an operation or adjustment level specified for the operating mode operator or user. Preinput in one of two ways to operate mode, maintenance or release. Maintenance mode prevention

Adjust the set value and turn off as long as the preset contact. Release mode allows adjustment of setpoints even though prepositions are closed. This feature allows the DECS-200 to be configured for specific system and application needs. Magnetic field current regulation working mode

The DECS-200 provides a manually operated channel called Field Current Regulation, or FCR, mode. In this mode, the DECS-200 regulates the field current phase generated by the internal PWM power supply.

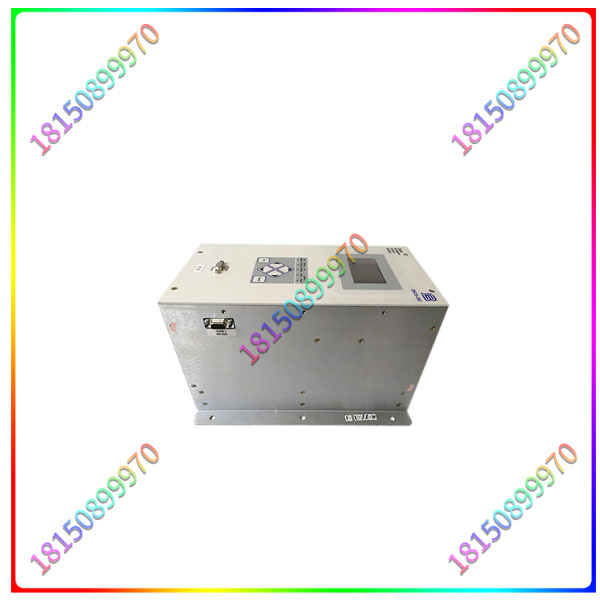

DECS-200-2L
