簡介:VMIVME-4140模擬輸出板提供32個高質量的12位模擬輸出通道分辨率高，在+10 V電壓下可發出或接收10ma。每一個輸出有一個專用的D/ a轉換器(DAC)分配給它。模擬輸出可以從現場接線斷開用于離線測試。校準和自檢由VMEbus系統復位或由軟件執行命令。在校準過程中，一個偏置和增益表系數被編譯并存儲在RAM中。有一個條目用于32個信道中每個信道對應的偏置和增益配置在每個六個輸出電壓范圍。“自檢”:系統復位后自動運行。自檢寄存器指示成功或失敗，并且可以指示發生故障的通道。前面板狀態指示燈:指示燈在一秒后亮系統復位。成功時，LED燈熄滅完成自檢和自動校準。LED也可以在軟件控制下開啟和關閉。

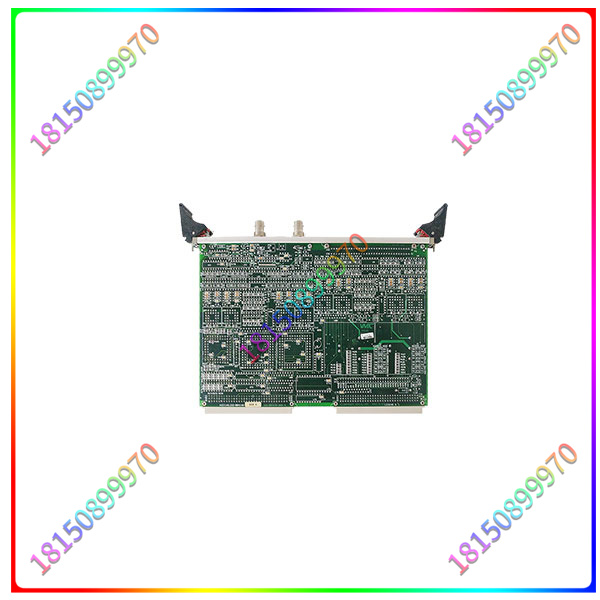

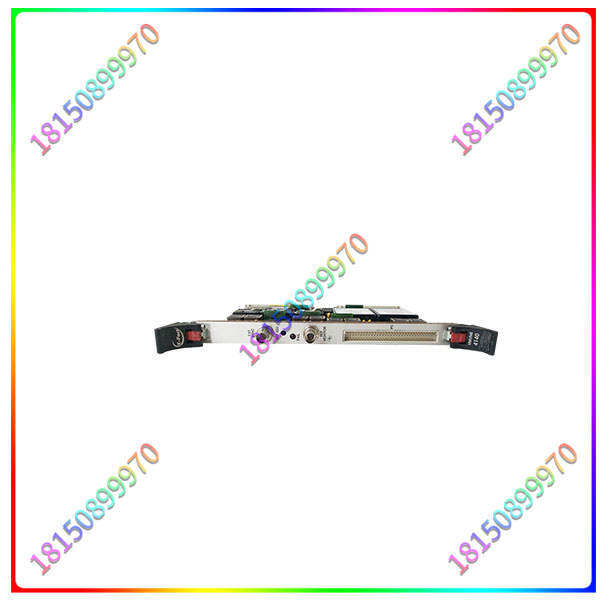

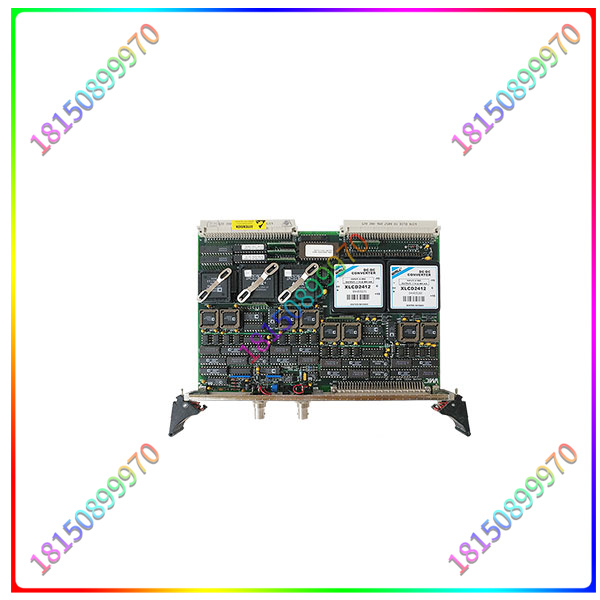

GE-VMIVME-4140

特點:
·32模擬輸出通道
每通道最大輸出電流10mA
每個輸出通道一個12位D/A轉換器(DAC)
·0.8Q輸出阻抗
·隨機更新(非掃描)
軟件或外部同步更新雙緩沖輸出
單參考電位器-無需其他手動校準要求
通過復位或軟件啟動自動校準命令
單相(0到+10V,0到+5V,0到+2.5 v)或雙極(+25，5重新或批量端接電纜·從字段連接到脫機n槽一一自我測試+10V)軟件可選
離散wi自測
-廣泛的機載診斷測試能力
一可以對輸出進行discon
-PMC擴展
·前面板狀態LED
·前面板模擬輸出連接器
·前面板參考電壓訪問
應用程序
數據采集系統
控制系統
精確模擬刺激
自動測試設備(ATE)

GE-VMIVME-4140

Description: The VMIVME-4140 analog output board provides 32 high-quality 12-bit analog output channels with high resolution and can send or receive 10ma at +10 V voltage. Each output has a dedicated D/ a converter (DAC) assigned to it. The analog output can be disconnected from field wiring for off-line testing. Calibration and self-test are reset by the VMEbus system or performed by software commands. During calibration, a bias and gain table coefficient is compiled and stored in RAM. There is an entry for each of the 32 channels corresponding to the bias and gain configurations in each of the six output voltage ranges. Self-check: The system starts automatically after a reset. The self-check register indicates success or failure and can indicate the channel where the failure occurred. Status indicator on the front panel: If the indicator turns on one second later, the system resets. When successful, the LED lights go out to complete the self-test and automatic calibration. Leds can also be turned on and off under software control.
Features:
·32 analog output channels
The maximum output current of each channel is 10mA
One 12-bit D/A converter (DAC) per output channel
·0.8Q output impedance
· Random update (non-scanning)
Software or external synchronous update dual buffer output
Single reference potentiometer – No additional manual calibration requirements
Start the automatic calibration command by reset or software
Single-phase (0 to +10V,0 to +5V,0 to + 2.5v) or bipolar (+ 25,5 re-or batch terminating cable · Connect from field to off-line n slot – self-test +10V) software is optional
Discrete wi self-test
– Wide range of on-board diagnostic testing capabilities
One can discon the output
-PMC extends
· Front panel status LED
· Front panel analog output connector
· Front panel reference voltage access
Application program
Data acquisition system
Control system
Precise simulation of stimulus
Automatic Test Equipment (ATE)
