IS215UCVEH2A型號是通用電氣工業(yè)系統公司為LS2100系列設計的雙面控制器。該板的前面板包括三個LED指示燈和復位按鈕。請注意，復位按鈕是凹進去的，以免不慎按下。當安裝在VMEbus機架上進行安裝時，它將進入第二個槽位。有幾個電容器，電阻器和扼流圈安裝在電路板上。
IS215UCVEH2A板還包括一個MicroSD卡和兩個鋰電池。該模型可以用作從/主控制器。在模型上有內置集成電路，這些電路的標準用途是保存任何形式的軟件信息，如燃氣和蒸汽產品的渦輪塊庫控制功能。
IS215UCVEH2A
IS215UCVEH2A 包括一個前面板，該面板內置三個位于電路板頂部的 LED 指示燈。這些是狀態(tài)指示器。此外，面板還包括一個復位按鈕、一個用于夾層卡的開口、額外的 LED 以及用于 LAN、SVGA、以太網和其他連接的端口。面板標有GE徽標和電路板ID（與連接的電路板一樣），并包括兩個固定螺釘，有助于在機架插入后將電路板固定到位。通常，此主板放置在第二個插槽中。
MK VI UCVE 板通常為整個系統提供 1 到 3 個 PROFIBUS-DP 主站。主設備與從設備交換信息（輸入和輸出數據）。有關如何配置此功能的其他信息，請訪問GE手冊和用戶指南或通過Profibus相關網站找到。
IS215UCVEH2A板的表面包括兩塊鋰電池，以及一個microSD卡。該板還具有表面貼裝電阻器、電容器和扼流圈。集成電路保存軟件信息，包括蒸汽、氣體和LM產品的渦輪模塊庫控制功能
IS215UCVEH2A

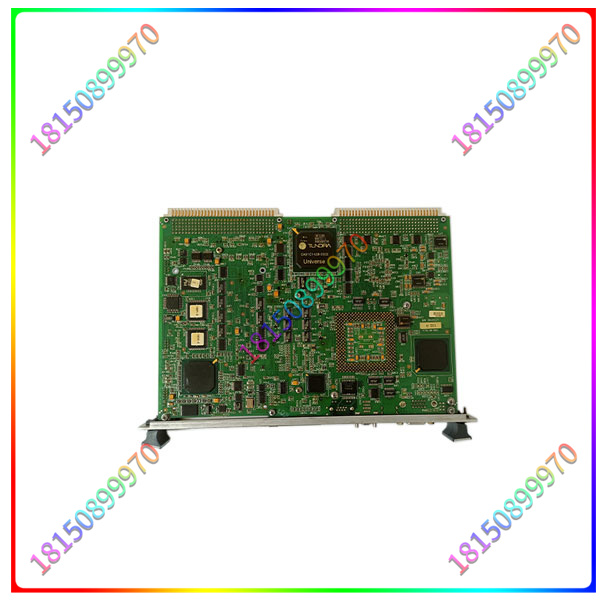

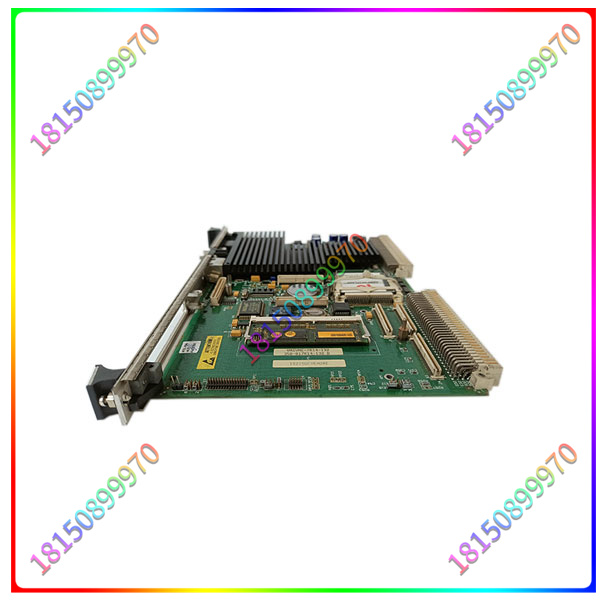

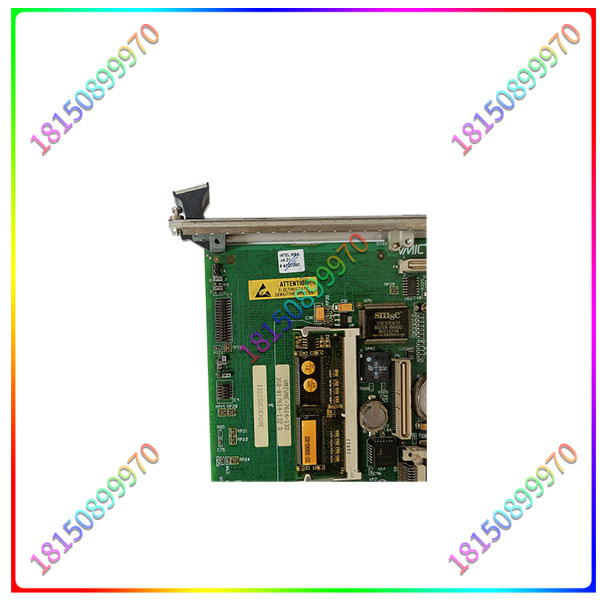

The IS215UCVEH2A model is a two-sided controller designed by GE Industrial Systems for the LS2100 series. The front panel of the board includes three LED indicators and a reset button. Please note that the reset button is recessed so as not to be accidentally pressed. When mounted on a VMEbus rack for installation, it goes into the second slot. There are several capacitors, resistors and chokes mounted on the circuit board.
The IS215UCVEH2A board also includes a MicroSD card and two lithium batteries. This model can be used as a slave/master controller. There are built-in integrated circuits on the model, and the standard use of these circuits is to hold any form of software information, such as turbine block library control functions for gas and steam products.
The IS215UCVEH2A includes a front panel with three built-in LED indicators located on top of the board. These are status indicators. In addition, the panel includes a reset button, an opening for the sandwich card, additional leds, and ports for LAN, SVGA, Ethernet, and other connections. The panel is marked with the GE logo and board ID (as with the attached board) and includes two setting screws that help hold the board in place once the rack is inserted. Typically, this motherboard is placed in the second slot.
MK VI UCVE boards typically provide one to three PROFIBUS-DP master stations for the entire system. The master and slave devices exchange information (input and output data). Additional information on how to configure this feature can be found in the GE manual and User Guide or through the Profibus related website.
The surface of the IS215UCVEH2A board consists of two lithium batteries and a microSD card. The board also has surface mount resistors, capacitors and chokes. Integrated circuits hold software information, including turbine module library control functions for steam, gas and LM products
IS215UCVEH2A
