IS220PDIOH1A是Mark VIe Speedtronic系統的I/O封裝模塊。Mark VIe是通用電氣以Speedtronic的名義發布的后期系統之一。自20世紀60年代末通用電氣發布Mark I以來，Speedtronic系統已用于工業渦輪機控制。

IS220PDIOH1A有兩個以太網端口和它自己的本地處理器。可與IS200TDBSH2A、IS200TDBTH2A端子板配合使用。這些I/O包/端子板組合已被批準用于危險場所。

IS220PDIOH1A的最小額定電壓為27.4 VDC。其標稱額定值為28.0 VDC。該裝置及其相關端子板有必須遵循的特定現場接線連接說明，包括電線尺寸和螺釘扭矩。這些信息可以在GE的相關手冊中找到，例如GEH-6725。

IS220PDIOH1A

IS220PDIOH1A的前面板包括兩個以太網端口的LED指示燈，用于設備的電源，以及一個“attn”LED。額外的led與繼電器連接有關。

有關此I/O模塊或相關端子板的更多信息，請參閱通用電氣的原始文檔。手冊、數據表和用戶指南將提供關于安裝、維護和處理的詳細規范，在將您的部件從AX Control中拆箱之前，應該檢查這些規范。

IS220PDIOH1A

IS220PDIOH1A is an I/O package module for Mark VIe Speedtronic systems. Mark VIe was one of the late systems released by General Electric under the name Speedtronic. Since the release of the Mark I by General Electric in the late 1960s, Speedtronic systems have been used for industrial turbine control.

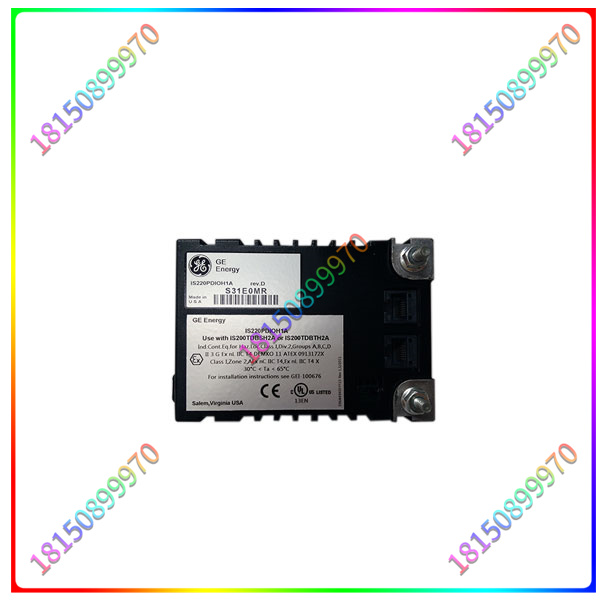

The IS220PDIOH1A has two Ethernet ports and its own native processor. It can be used with IS200TDBSH2A and IS200TDBTH2A terminal boards. These I/O packet/terminal board combinations have been approved for use in hazardous locations.

The minimum rated voltage of the IS220P DioH1A is 27.4 VDC. Its nominal rating is 28.0 VDC. The device and its associated terminal boards have field-specific wiring connection instructions that must be followed, including wire size and screw torque. This information can be found in the relevant GE manuals, such as GEH-6725.

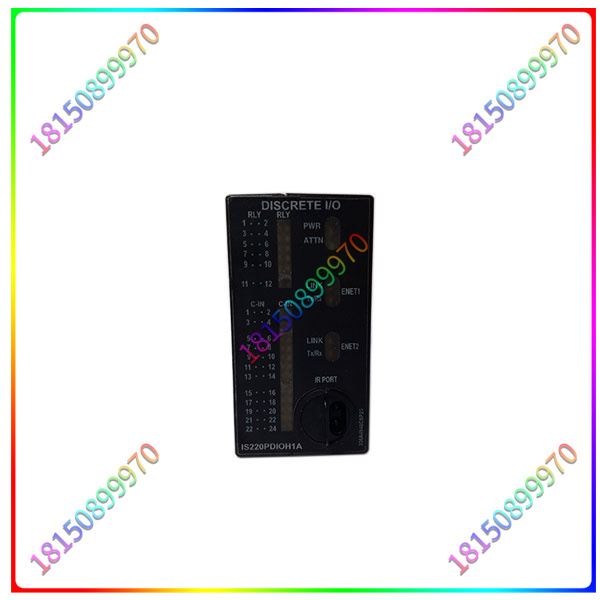

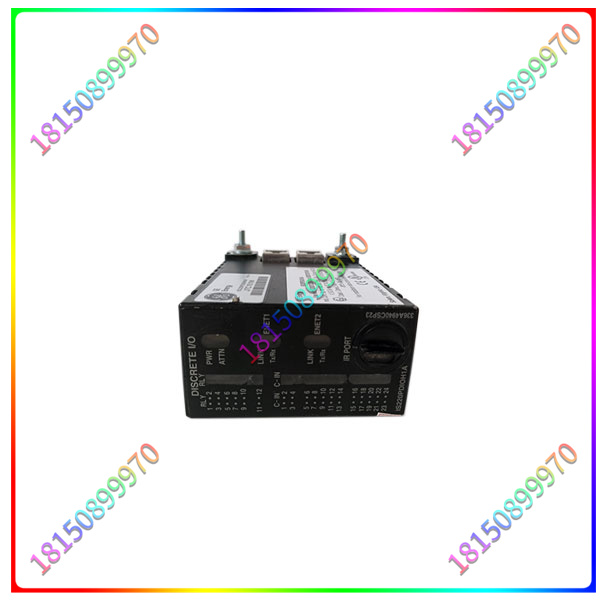

The front panel of the IS220PDIOH1A includes LED indicators for two Ethernet ports, for the device’s power supply, and an “attn” LED. Additional leds are associated with relay connections.

For more information about this I/O module or related terminal boards, please refer to GE’s original documentation. Manuals, data sheets, and user guides will provide detailed specifications on installation, maintenance, and handling, which should be checked before unboxing your parts from AX Control.
