IS200TSVOH1B是AX Control公司提供的幾種TSVO終端板之一。通用電氣公司的Mark VI系統中使用了這些伺服閥終端板。Mark VI是用于管理工業氣體和蒸汽輪機系統的更先進的Speedtronic系統之一;它已經使用了20多年。
IS200TSVOH1B采用阻隔式端子排。這些都安裝在一個長板的一邊。電路板能夠通過這兩個I/O通道接受來自兩個伺服電流源的輸入。每個端子塊允許多達三個LVDT或LVDR反饋傳感器附件(總共六個為板)。這些傳感器可以是高選擇、中值選擇或低選擇。脈沖率輸入在2-14 kHz之間。如果您需要具有這些設置但使用Box類型終端的板,請參閱我們的DSVO板列表。
IS200TSVOH1B的重量只有200磅。由于增加了內部和外部的包裝盒和填充物,以及防靜電包裝,紙板在準備裝運后會更重。拆箱時,建議使用接地帶。

IS220PSVOH1B
IS220PSVOH1A作為伺服控制包。該組件由GE為其Mark VI或Mark VIe系統制造。這兩個系統都用于控制蒸汽和燃氣輪機系統。
IS220PSVOH1A提供一個或兩個I/O以太網網絡和TSVO伺服終端板之間的電接口。IS220PSVOH1A使用WSVO伺服驅動模塊來處理兩個伺服閥位置回路。PSVO有一個帶有多個LED指示燈的前面板。其中包括四個LED,指示兩個以太網網絡(ENet1/Enet2)的狀態,以及一個電源和Attn LED,以及另外兩個標有ENA1/2的LED。正面也有一個單一的紅外端口,這是不使用在這個包。
IS220PSVOH1A在安裝后配置了控制系統工具箱應用程序。該包包括一個帶有輸入電源連接器的處理器板,本地電源和用于溫度監測的內部傳感器。該板還具有閃存和RAM板上。該板連接采集板。
IS220PSVOH1A可以在更換時自動重新配置。此選項通過ToolboxST應用程序通過組件編輯器啟用/禁用。如果需要,組件編輯器還允許操作員手動重新配置模塊。當更換終端板時,需要手動重新配置I/O包。
伺服性能可以通過手動模式、位置傾斜或步進電流來驗證。趨勢記錄儀將顯示執行器行程中的任何異常。更多關于這個和其他部分的信息,它的安裝和操作,以及可能的兼容性問題,可以通過制造商的用戶指南和手冊找到。

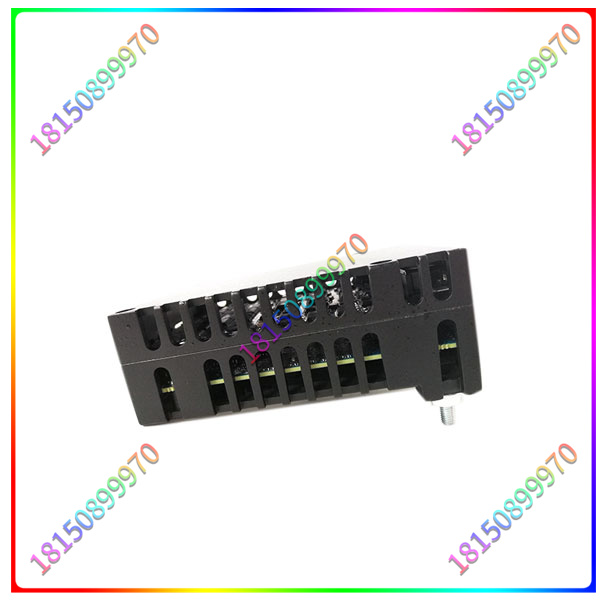

IS220PSVOH1B
The S220PSVOH1B is GE’s Mark Vle control system. The /0 package is an electrical interface that connects one or two / 0s with a large network to the TSVO coservice terminal board. In order to manage the two-person coservice valve position loop, the assembly uses the WSVO coservice driver module. The front panel of the PSVO contains various LED indicators.

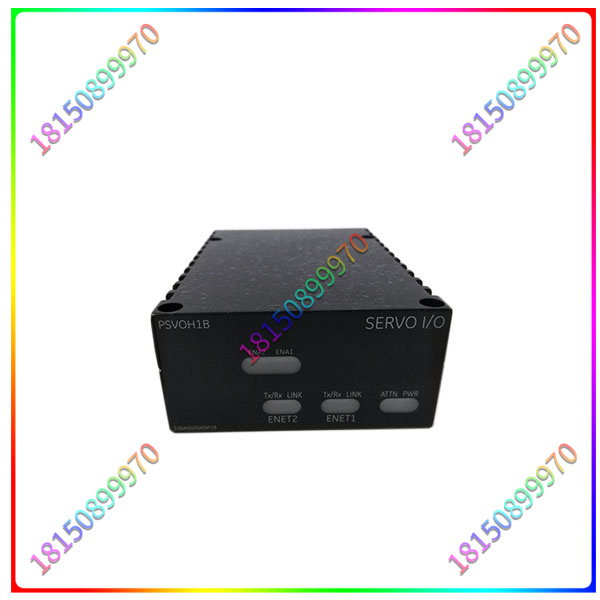

. Four Ned displays the status of two to the large network wind /ENet1/Enet2, as well as a power supply and An LED and two other leds called ENA1/2, there is also a single infrared port on the front, which is not used in this package. After installation, the component is configured by the Control System Toolbox application, and the package contains a processing board with an input power connector, local power supply, and internal temperature sensor. The board also has flash memory and RAM.
After the board is replaced, it can be automatically reconfigured. You can activate or disable this option in the component editor of the ToolboxST application. If needed, the operator can manually reconfigure the module using the component editor. When replacing a terminal board, you must manually reconfigure the I/0 component. Manually drive actuator mode, position ramp, or step current can be used to test servo performance. The trend recorder will show any irregularities in the actuator travel. For more information about this and other board components, installation and operation, and potential compatibility issues, see the manufacturer’s user guide and manual.

IS220PSVOH1B
