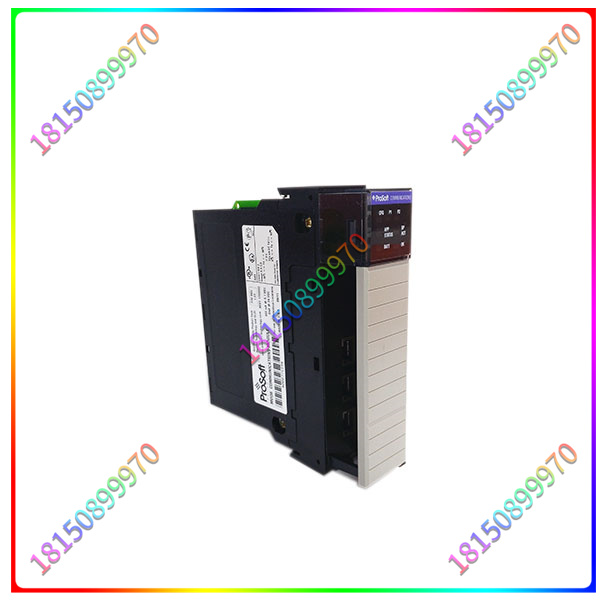

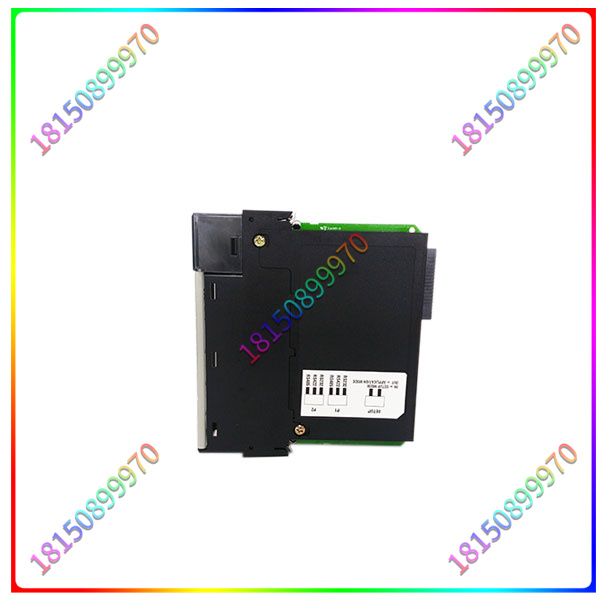

MVI56-MCM (“Modbus 通訊模塊”) 產品可以讓 Allen-Bradley ControlLogix I/O 兼容處理器
輕松的和其它 Modbus 協議兼容設備取得通訊。兼容的設備不僅包括 Modicon PLC (都支
持 Modbus 協議)，還包括類別廣闊的終端設備。
MVI56-MCM 模塊是 Modbus 網絡和 Allen-Bradley backplane 之間的一個網關。來自于
ControlLogix 處理器的數據傳送異步于 Modbus 網絡上的數據活動。模塊內部具有 5000 個
字的寄存器，用于處理器和 Modbus 網絡之間的數據交換。
以下討論包括一些概念，這些概念對于理解 MVI56-MCM 模塊的運作是十分重要的。
上電時，模塊開始執行以下邏輯功能：
1. 初始化硬件組件
a. 初始化 ControlLogix 背板驅動
b. 測試并復位所有 RAM
c. 初始化串行通訊端口
2. 等待來自于 ControlLogix 處理器的模塊配置
3. 初始化模塊寄存器空間
4. 在所選端口上，啟動從站驅動
5. 在所選端口上，啟動主站驅動

MVI56-MCM

當模塊已經接收來自處理器的模塊配置后，模塊會根據配置和網絡上的其它節點開始通
訊。
MVI56-MCM 模塊對 ControlLogix 背板使用方式是非常獨特的。通過背板，模塊使用自身
的輸入和輸出鏡像以分頁的方式，接收數據和發送數據到處理器。鏡像刷新的頻率取決于
用戶為模塊定義的計劃掃描頻率（scheduled scan rate）和模塊的通訊負荷。典型的刷新
頻率在 2 到 10 毫秒之間。
雙向的數據傳送是這樣實現的，模塊在其輸入鏡像中填充數據，再發送到處理器。梯形邏
輯程序把輸入鏡像中的數據放置在處理器的控制器標簽（Controller Tags）中。模塊的輸
入鏡像是 250 個字。這個大型數據區讓數據在模塊和處理器之間快速的交換。

需要傳送到模塊的數據被處理器插放到模塊的輸出鏡像。模塊程序會把這些數據提取出
來，放置在模塊的內部數據庫。模塊的輸出鏡像共有 248 個字。這個大型數據區讓數據在
模塊和處理器之間快速的交換。
下面的示意圖描述了在 ControlLogix 處理器，MVI56-MCM 模塊和 Modbus 網絡之間數據
移動的方式。

MVI56-MCM

The MVI56-MCM (” Modbus Communication Module “) product enables Allen-Bradley ControlLogix I/O compatible processors
Easily communicate with other Modbus protocol compatible devices. Compatible devices include not only Modicon PLC (all branches
With Modbus protocol), also includes a broad category of terminal devices.
The MVI56-MCM module is a gateway between the Modbus network and the Allen-Bradley backplane. Be from
The data transfer of the ControlLogix processor is asynchronous to data activity on the Modbus network. There are 5000 modules inside the module
Word register for data exchange between processor and Modbus network.
The following discussion includes some concepts that are important to understanding the operation of the MVI56-MCM module.
When the module is powered on, the following logical functions are performed:
1. Initialize hardware components
a. Initialize the ControlLogix backplane driver
b. Test and reset all RAM
c. Initialize the serial communication port
2. Wait for the module configuration from the ControlLogix processor
3. Initialize the module register space
4. Enable the slave driver on the selected port
5. On the selected port, start the primary station driver
When the module has received the module configuration from the processor, the module will start to communicate with other nodes on the network according to the configuration
Message.
The MVI56-MCM module is unique in its use of the ControlLogix backplane. Through the backplane, the module uses itself
The input and output mirrors in a paging manner, receiving data and sending data to the processor. The frequency of image refresh depends on
The scheduled scan rate defined by the user for the module and the communication load of the module. Typical refresh
The frequency is between 2 and 10 milliseconds.
Bidirectional data transfer is implemented in such a way that the module fills the data in its input image and sends it to the processor. Trapezoidal logic
The assembler places the data in the input image in the Controller Tags of the processor. Module output
It’s like 250 words. This large data area allows data to be exchanged quickly between modules and processors.

The data that needs to be sent to the module is plugged into the output image of the module by the processor. The module program will extract the data
To place in the module’s internal database. The output image of the module contains 248 characters. This large data area keeps the data in
Fast exchange between modules and processors.
The following diagram depicts data between the ControlLogix processor, the MVI56-MCM module, and the Modbus network
The way it moves.

MVI56-MCM
