MVI56-MNETC應用程序使用。
?食品加工
?石化
?紙漿和紙張
?汽車制造業
?水和廢水
?石油和天然氣
?電力和電氣

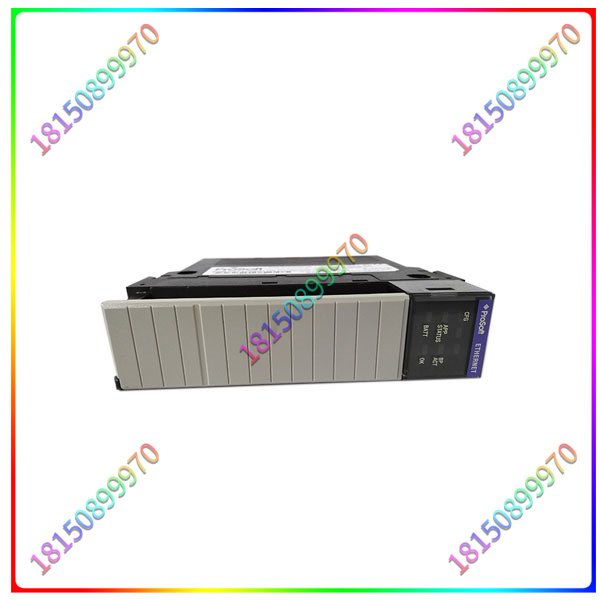

MVI56-MNETC
MVI56 Modbus TCP/IP客戶端
通信模塊的設計允許
ControlLogix處理器接口容易與其他
Modbus TCP/IP協議兼容設備。
兼容設備不僅包括Modicon處理器
(它支持Modbus TCP/IP協議)，但也有
各種各樣的其他服務器設備。

MVI56-MNETC

特點和優點
創建這個模塊是為了提高性能
當服務器不需要Modbus TCP/IP時
網絡。該模塊最多支持30個客戶端
為每個客戶端提供16個命令，使其易于
啟用/禁用梯子邏輯中的命令。的
客戶端命令控制字每個包含一個比特
命令。此模塊不支持條件寫命令。
其他一些功能包括:
?支持多達5000的存儲和傳輸
注冊到/從ControlLogix處理器的
控制器標簽
?模塊內存使用完全由用戶決定
可下定義的
?10/ 100mb以太網兼容接口
?客戶端可配置參數包括:
最小命令延遲
用戶自定義命令(讀/寫)
通用規范
?單槽- 1756背板兼容
?模塊被識別為輸入/輸出
模塊，可以訪問處理器內存
處理器和模塊之間的數據傳輸
?梯形邏輯用于數據之間的傳輸
模塊和處理器。包括示例梯子文件。
?從配置文本中獲取配置數據
文件下載到模塊。樣例配置文件
包括
?本地或遠程機架

MVI56-MNETC

MVI56-MNETC application to use.
? Food processing
? Petrochemical
? Pulp and paper
? Automotive manufacturing
? Water and wastewater
? Oil and gas
? Power and electrical

MVI56-MNETC
MVI56 Modbus TCP/IP client
The design of the communication module allows
The ControlLogix processor interfaces easily with others
Modbus TCP/IP compatible device.
Compatible devices include more than just Modicon processors
(It supports the Modbus TCP/IP protocol), but there are also
A variety of other server devices.
Features and advantages
This module was created to improve performance
When Modbus TCP/IP is not required for the server
The Internet. This module supports up to 30 clients
Provide 16 commands per client to make it easy
Enable or disable the commands in the ladder logic. the
Each client command control word contains one bit
Command. This module does not support conditional write commands.
Some other features include:
? Supports up to 5000 storage and transfers
Registered to/from the ControlLogix processor
Controller label
? Module memory usage is entirely up to the user
definable
? 10/100mb Ethernet compatible interface
? Client configurable parameters include:
Minimum command delay
User-defined commands (Read/write)
General specification
? Single slot – 1756 backplane compatible
? Modules are identified as input/output
Module that can access processor memory
Data transfer between processors and modules
? Ladder logic is used for data transmission
Modules and processors. Includes sample ladder files.
? Obtain the configuration data from the configuration text
File download to module. Example configuration file
include
? Local or remote rack

MVI56-MNETC
