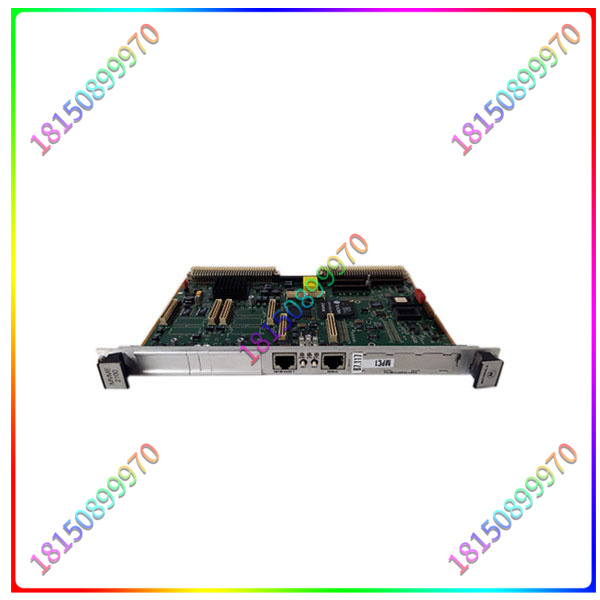

提供高性能擴展I/O的模塊化單板計算機
MVME2100系列VME處理器模塊是用于VME應用的高度模塊化單板計算機系列。MVME2100的核心是
MPC8240，一個高度集成的PowerPC架構微處理器與MPC60x
類核心，一個高級內存控制器，和一個外圍組件互連
(PCI)接口。用MPC8240和PCI夾層卡(PMC)的組合
MVME2100為客戶提供了一個高性能的構建塊，用于工業自動化中的I/O擴展。
電信、醫療、科學或成像應用。
■MPC8240 32位微處理器
L1緩存- 16KB/16KB MPC60x類
32MB板載SDRAM，可選ECC
保護

MVME2100

2個32針PLCC/CLCC接口，用于閃存;向上
到1MB的容量，以滿足板載固件或用戶指定的要求
4MB板載閃存供用戶指定
需求
■一個符合IEEE P1386.1標準的32位PMC插槽
前面板和P2 I/O
■三個32位PC?MIP擴展插槽，兼容
與VITA 29草案標準:一個I型插槽背面
面板I/O和兩個類型II插槽與前面板I/O
32位PCI擴展夾層連接器
■以太網收發器接口與32位PCI本地
總線DMA, 10/100Mb/s，具有自動協商速度
選擇
8K x 8 NVRAM和時鐘
可更換的備用電池
■四個32位定時器，一個16位定時器，一個看門狗

MVME2100

Modular single-board computer with high performance extended I/O
The MVME2100 series VME processor modules are a family of highly modular single-board computers for VME applications. The core of the MVME2100 is
MPC8240, a highly integrated PowerPC architecture microprocessor with MPC60x
The class core, a high-level memory controller, and a peripheral component interconnect
(PCI) interface. Use a combination of MPC8240 and PCI Sandwich card (PMC)
The MVME2100 provides customers with a high-performance building block for I/O scaling in industrial automation.
Telecommunications, medical, scientific or imaging applications.
■MPC8240 32-bit microprocessor
L1 cache – 16KB/16KB MPC60x class
32MB onboard SDRAM, ECC optional
Protection
2 32-pin PLCC/CLCC interfaces for flash memory; Make progress
Up to 1MB capacity to meet on-board firmware or user-specified requirements
4MB on-board flash memory for user specification
requirement
■ A 32-bit PMC slot that complies with IEEE P1386.1 standard
Front panel and P2 I/O
■ Three 32-bit PC/MIP expansion slots, compatible
Standard with VITA 29 draft: One Type I slot back
Panel I/O and two type II slots with front panel I/O
32-bit PCI expansion sandwich connector
■ Ethernet transceiver interface with 32-bit PCI natively
Bus DMA, 10/100Mb/s, with auto-negotiated speed
Select
8K x 8 NVRAM and clock
Replaceable spare battery
■ Four 32-bit timers, one 16-bit timer, and one watchdog

MVME2100
