在可擴展的單板計算機中實現超級計算級別的性能

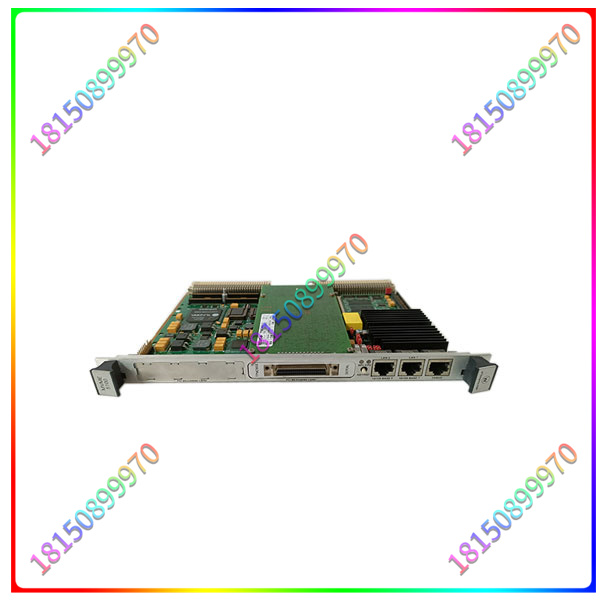

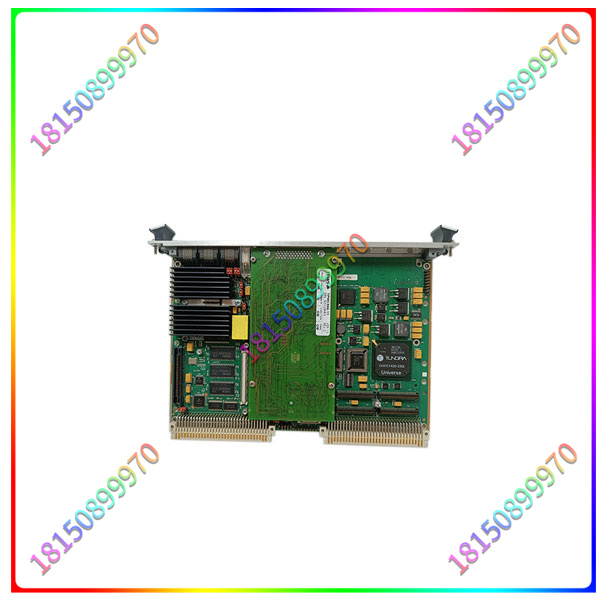

MVME5100系列是摩托羅拉PowerPlus II VME架構的旗艦產品
在單個VMEbus插槽中實現超級計算級別的性能。基于
由摩托羅拉計算機公司設計的集成PCI橋式存儲器控制器ASIC
PowerPlus II以582MB/s的內存將內存性能提升到新的水平
讀帶寬和640MB/s突發寫帶寬。PowerPlus II架構
支持264MB/s的全PCI吞吐量，而不會耗盡處理器的內存
內存。
MVME5100系列的擴展溫度版本提供硬件和
軟件兼容產品，以增強現有的MVME5100產品。新
版本在-20°至71°C的擴展溫度范圍內工作，而0°至55°C的
已經存在的商業版本。這個溫度范圍對……有利
需要延長設備工作溫度的oem廠商。
MVME5100旨在滿足為國防和國防服務的原始設備制造商的需求
航空航天、工業自動化和醫療細分市場。
I / O的兼容性

MVME5100

從歷史上看，摩托羅拉在其產品中提供了兩條軌道
PowerPC架構VME組合。第一個軌道
(其中包括MVME2600/2700)提供典型的
單板計算機I/O功能包括以太網，
SCSI，多個串行端口，一個并行端口和一個單
PMC插槽。板載I/O被路由到P2并生成
用戶可通過摩托羅拉MVME761或
MVME712M過渡板。第二首歌是什么
包括MVME2300/2400)提供有限的機載
I/O(以太網和單個串行端口都通過前端)
面板)，但提供雙PMC插槽，使最大
用戶I/O定制。
MVME5100融合了兩種軌道的最佳功能
使OEM能夠支持不同的I/O需求
具有相同的基礎平臺，簡化了零件數量
維護，技術專長的要求和
保留。
P2 I/O模式
MVME5100支持兩個跳線可配置的P2
I/O模式、PMC模式和IPMC模式。
PMC模式向后兼容
MVME2300 / MVME2400。在PMC模式下，64引腳從
PMC插槽1和46引腳從PMC插槽2上可用
P2為PMC后I/O。
在IPMC模式下，MVME5100支持傳統模式
MVME761或MVME712M I/O模塊(與有限
當IPMC761或IPMC712 PMC卡為PMC I/O時
填充在PMC槽1。在此配置中，PMC
槽位2包含一些預留的信號
擴展的SCSI。

MVME5100

Achieve supercomputing-level performance in a scalable single-board computer
The MVME5100 series is the flagship product of MOTOROLA’s PowerPlus II VME architecture
Achieve supercomputing-level performance in a single VMEbus slot. Based on
An integrated PCI bridge memory controller ASIC designed by MOTOROLA Computers
The PowerPlus II takes memory performance to a new level with 582MB/s of memory
Read bandwidth and 640MB/s burst write bandwidth. PowerPlus II architecture
Supports full PCI throughput of 264MB/s without depleting the processor’s memory
Memory.
The extended temperature version of the MVME5100 series provides hardware and
Software compatible products to enhance existing MVME5100 products. new
Versions operate in an extended temperature range of -20° to 71°C, while 0° to 55°C
Commercial versions already exist. This temperature range is good for advantageous
Oems that need to extend the operating temperature of their equipment.
The MVME5100 is designed to meet the needs of original equipment manufacturers serving defense and national defense
Aerospace, Industrial automation and Medical segments.
I/O compatibility
Historically, MOTOROLA has offered two tracks in its products
PowerPC architecture VME combination. First orbital
(which includes MVME2600/2700) provides typical
Single board computer I/O features include Ethernet,
SCSI, multiple serial ports, one parallel port and one single
PMC slot. The onboard I/O is routed to P2 and generated
Users can use the MOTOROLA MVME761 or
MVME712M transition plate. What’s the second song
Includes the MVME2300/2400) available in limited on-board
I/O(Ethernet and a single serial port both through the front end)
Panel), but provides dual PMC slots to make maximum
User I/O customization.
The MVME5100 combines the best features of both tracks
Enables Oems to support different I/O needs
With the same base platform, the number of parts is simplified
Maintenance, technical expertise requirements and
Reserve.
P2 I/O mode
The MVME5100 supports two jumpers configurable in P2
I/O mode, PMC mode, and IPMC mode.
PMC mode is backward compatible
MVME2300 / MVME2400. In PMC mode, 64 pins from
PMC slot 1 and pin 46 are available from PMC slot 2
P2 indicates the I/O after the PMC.
In IPMC mode, the MVME5100 supports traditional mode
MVME761 or MVME712M I/O modules (with limited
When the IPMC761 or IPMC712 PMC card is PMC I/O
Fill in PMC slot 1. In this configuration, PMC
Slot 2 contains some reserved signals
Extended SCSI.

MVME5100
