張力電子產品涵蓋廣泛的應用，有三個版本，具有不同水平的性能和功能，所有三人版本都有多語言數字顯示和配置鍵、配置鍵用于設置不同的參數和檢查張力系統的狀態，
2 x 16字符顯示器可以顯示和、差或單個稱重傳感器信號。
這三種型號都有DIN導軌型和封閉式IP 65(NEMA4)型，可安裝在更惡劣的環境中
為了控制張力，需要構成張力控制系統，因?yàn)閺埩χ荒茉趦?或兩個以上)具有驅動(或制動)力的工藝設備間形成，所以張力控制系統是在頂人傳動控制系統其礎上構成的，其中一個傳動控制系統作為張力控制系統的速度其準，稱為速度其準系統、而另一個傳動控制系統按張力要求建廣負載，形成張力，實質是對速度基準系統按要求張力進行速度跟隨，稱為張力可控的速度跟隨系統，張力控制的任務一般多放在后一系統上，所以人們習慣地只將后者稱為張力控制系統。

PFEA113-65

張力控制系統由于應用場合、設備、構成原理不同而多種多樣。但按結構形式、控制原理可大致將其歸納為直接張力控制系統、間接張力控制系統活套張力控制系統大類
直接張力控制系統通過張力檢測環節張力檢測傳感器)實現對張力的閉環反饋控制的系統。卷取機和車機機架間的直接張力控制系統分別如圖1 (a) 、(b)所
示。實現直接張力控制，首先要有張力檢測傳感器(張力計)，它被裝在張力測量機構的張力輥下(見圖1) 。張力計實為壓力計，現用的壓力計有壓施式、感應式、電阻應變片式等多種型式,
直接張力控制大多用于張力調節范圍大，精度要求高及易于安裝張力計的場合，或在無法構成間接張力控制系統時使用。有時為了提高張力調節動態及靜態性能，擴大張力調節范圍，用間接張力控制實現粗調，起擾動補償作用，用直接張力控制實現精調，兩者合在起構成張力復合控制。
直接張力控制和張力復合控制多應用于帶材、箔材冷軋機或連續加工線的卷取機或其機架間、加工設備間的張力控制上

PFEA113-65

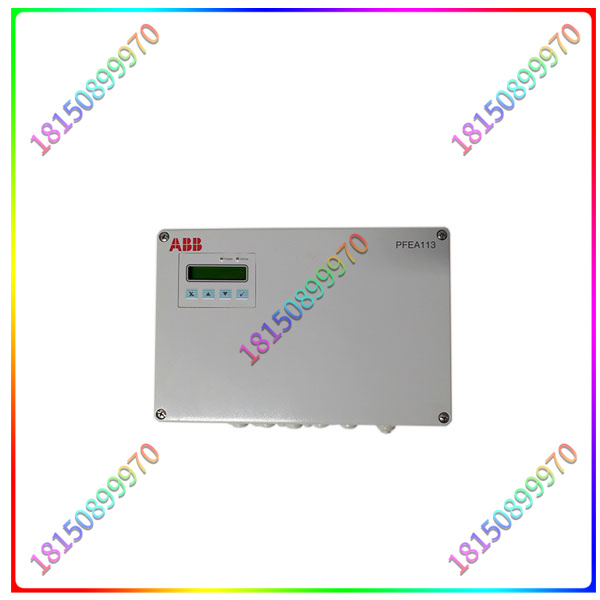

Tension electronics covers a wide range of applications and comes in three versions with different levels of performance and functionality, all three versions have multilingual digital display and configuration keys for setting different parameters and checking the status of the tension system.
The 2 x 16 character display can display sum, difference, or individual load cell signals.
All three models are available in DIN rail and closed IP 65(NEMA4) models for installation in harsher environments
In order to control the tension, it is necessary to form a tension control system, because the tension can only be formed between two (or more) process equipment with driving (or braking) force, so the tension control system is formed on the basis of the top transmission control system, in which a transmission control system is used as the speed of the tension control system. It is called the speed of the quasi-system, and another transmission control system according to the tension requirements to build a wide load, forming tension, in essence, the speed of the speed reference system according to the required tension to follow, called the tension controllable speed following system, the task of tension control is generally placed on the latter system, so people are accustomed to only the latter is called the tension control system.
Tension control systems are varied due to different applications, equipment and composition principles. However, according to the structure and control principle, it can be roughly summarized into direct tension control system, indirect tension control system looper tension control system
The direct tension control system realizes the closed-loop feedback control of the tension through the tension detection link tension detection sensor. The direct tension control system between the coiler and the frame of the machine is shown in Figure 1 (a) and (b) respectively
Yes. To achieve direct tension control, first there is a tension detection sensor (tensiometer), which is installed under the tension roll of the tension measuring mechanism (see Figure 1). The tension gauge is actually a pressure gauge, and the current pressure gauge has various types such as pressure application type, induction type, resistance strain gauge type, etc.
Direct tension control is mostly used in situations where the tension adjustment range is large, the accuracy is high and the tensiometer is easy to install, or when an indirect tension control system cannot be formed. Sometimes, in order to improve the dynamic and static performance of tension regulation and expand the range of tension regulation, indirect tension control is used to achieve rough adjustment, play the role of disturbance compensation, and direct tension control is used to achieve fine adjustment.
Direct tension control and tension compound control are mainly applied to the tension control of strip and foil cold rolling machine or coiler of continuous processing line or between its frame and processing equipment

PFEA113-65
