1756-IF16是一款ControlLogix模擬輸入模塊，它接受電流和電壓信號，例如±10V、0-10V、0-5V和0-20mA。該模塊支持3種類型的信號布線配置，即單端、差分和高速差分布線。在支持的布線配置中，單端布線對噪聲最敏感，必須與具有公共接地的信號一起使用。為了增加噪聲敏感性，可以使用差分接線方法，而在需要相對于輸入信號快速更新數據的系統中使用高速差分布線。
AB 1756-IF16是一款高性能數字量輸入/輸出模塊，可廣泛應用于工業自動化控制系統、電力系統、智能交通系統、安防監控系統以及醫療設備等領域。該模塊具有16個數字量輸入和16個數字量輸出，可直接連接到PLC或其他控制器，幫助用戶實現對外部設備的控制和監測。

1756-IF16

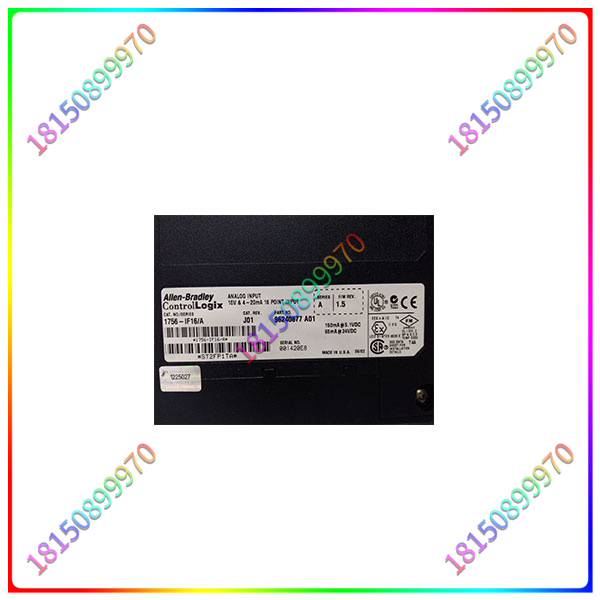

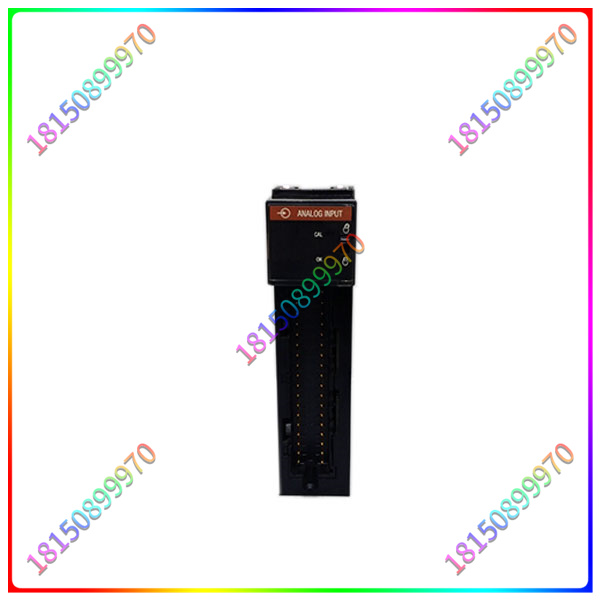

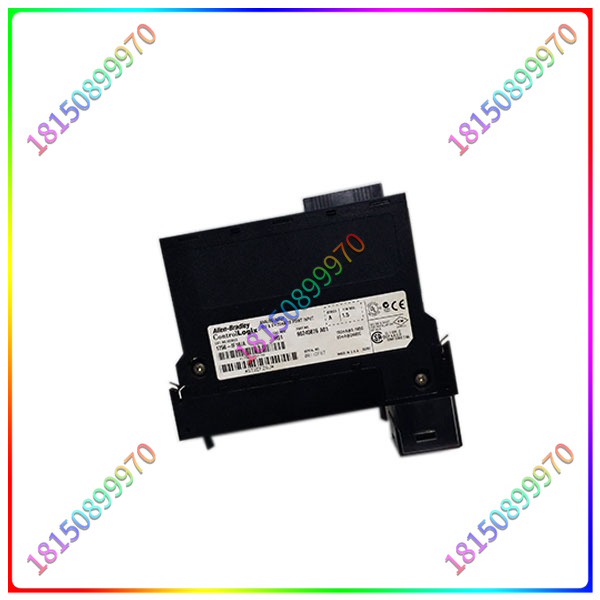

The 1756-IF16 is a ControlLogix analog input module that accepts current and voltage signals such as ±10V, 0-10V, 0-5V, and 0-20mA. The module supports three types of signal routing configurations, namely single-ended, differential, and high-speed differential routing. Of the supported wiring configurations, single-ended wiring is the most sensitive to noise and must be used with signals with common ground. To increase noise sensitivity, differential wiring methods can be used, while high-speed differential wiring is used in systems where data needs to be updated quickly relative to the input signal.
The AB 1756-IF16 is a high-performance digital input/output module that can be widely used in industrial automation control systems, power systems, intelligent transportation systems, security monitoring systems, and medical equipment. The module has 16 digital inputs and 16 digital outputs, which can be directly connected to PLC or other controllers to help users achieve control and monitoring of external devices.

1756-IF16
