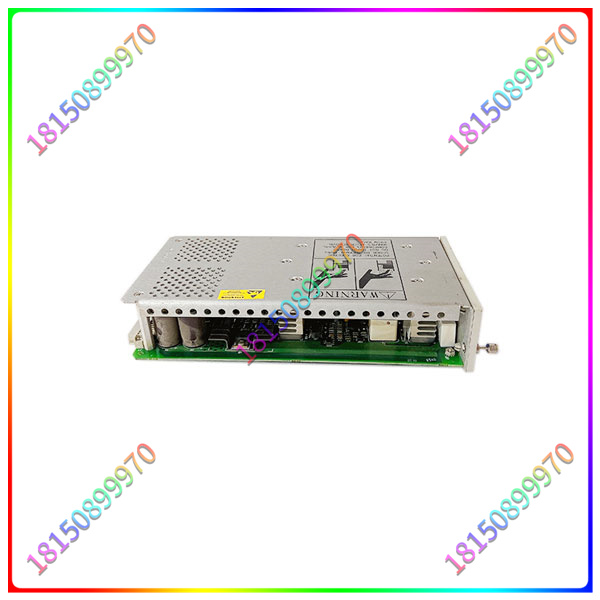

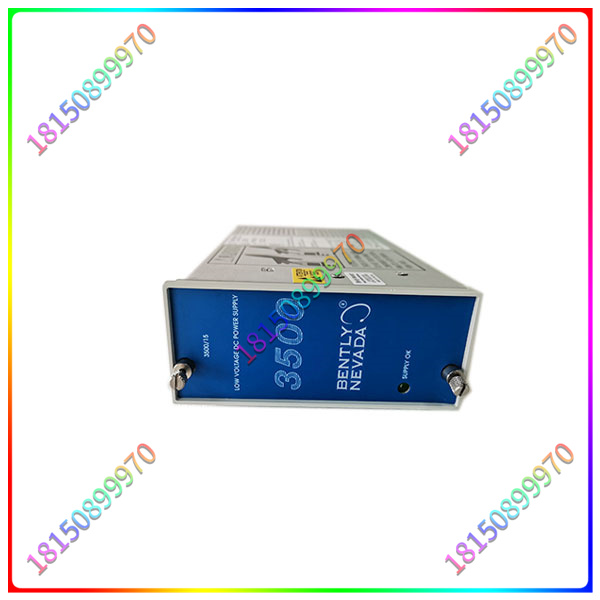

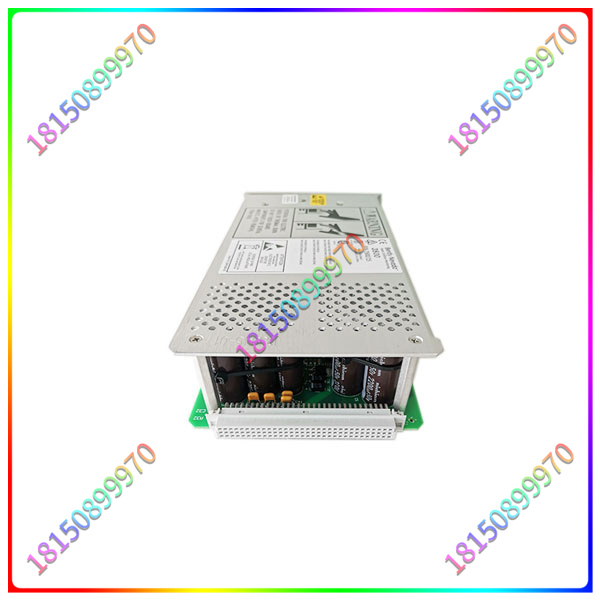

133292-01 交流電源/高壓直流電源 Bentley 3500/15

品牌Bentley
型號133292-01 3500/15
品名交流電源/高壓直流電源
半高度模塊，必須安裝在框架左邊特殊設計的槽口內。3500 框架可裝有一個或兩個電源(交流或直流的任意組合)。其中任何一個電源都可給整個框架供電。如果安裝兩個電源，第二個電源可做為前一個電源的備份。當安裝兩個電源時，上邊的電源作為主電源，下邊的電源作為備用電源，只要裝有一個電源，拆除或安裝第二個電源模塊將不影響框架的運行。3500 電源能接受大范圍的輸入電壓，并可把該輸入電壓轉換成其它3500 模塊能接受的電壓。對于3500 機械保護系統，有以下三種電源：
1.交流電源
2.高壓直流電源
3.低壓直流電源

BENTLY3500/15電源數據參數
輸入 電源選項:
175 到 264 Vac rms: (247 到 373 Vac, pk)，47 到 63 Hz。該選項使用交流電源且為高電壓(通常220V)交流電源輸入模塊(PIM)。安裝版本R 以前的交流電源輸入模塊(PIM)和/或版本M 以前的電源模塊要求電壓輸入：175 到250 Vac rms。
85 到 132 Vac rms: (120 到 188 Vac, pk), 47 到 63 Hz。該選項使用交流電源并且是低電壓(通
常110V)交流電源輸入模塊(PIM)。安裝版本R 以前的交流電源輸入模塊(PIM)和/或版本M 以前的電源模塊要求電壓輸入：85 到125 Vac rms。
88 到 140 Vdc: 該選項使用直流電源，并且是高電壓直流電源輸入模塊(PIM)。
20 到 30 Vdc: 該選項是低壓直流供電，是低壓直流供電模塊(PIM)。

133292-01

133292-01 AC power/HVDC power Bentley 3500/15

Brand Bentley
Model 133292-01 3500/15
Product name AC power supply/HVDC power supply
The half-height module must be installed in a specially designed slot on the left side of the frame. The 3500 frame can be equipped with one or two power supplies (any combination of AC or DC). Any one of these power supplies can power the entire frame. If two power supplies are installed, the second power supply can be used as a backup of the previous power supply. When two power supplies are installed, the upper power supply is used as the main power supply, and the lower power supply is used as the backup power supply. As long as one power supply is installed, removing or installing the second power module will not affect the operation of the frame. The 3500 power supply can accept a wide range of input voltages, and can convert the input voltage to other 3500 modules can accept the voltage. For the 3500 mechanical protection system, there are three power supplies:
1. Ac power supply
2. High voltage DC power supply
3. Low voltage DC power supply

BENTLY3500/15 Power supply data
Input power options:
175 to 264 Vac rms: (247 to 373 Vac, pk), 47 to 63 Hz. This option uses AC power and is a high voltage (usually 220V) AC power input module (PIM). Install AC power input modules (PIMs) before version R and/or power modules before version M requiring voltage input: 175 to 250 Vac rms.
85 to 132 Vac rms: (120 to 188 Vac, pk), 47 to 63 Hz. This option uses AC power and is low voltage (on
Normal 110V) AC power input module (PIM). Install AC power input modules (PIMs) before version R and/or power modules before version M requiring voltage input: 85 to 125 Vac rms.
88 to 140 Vdc: This option uses DC power and is a high voltage DC power input module (PIM).
20 to 30 Vdc: This option is low voltage DC power supply and is a Low Voltage DC power supply module (PIM).
