IS200VCMIH2BEE是單位數據高速公路(UDH)的一部分。)它的功能相當于主通信控制板。數據被讀取并通過光纖以太網(IONet)傳輸?shù)狡渌濉?
VCMI板可以為單工或TMR(三模冗余)應用而設計。單工板有一個IONet端口，而TMR板有三個。IS200VCMIH2BEE板是一個TMR板。
IS200VCMIH2BEE使用SIFT投票(軟件實現的容錯。)數據以一個數據包的形式廣播到所有遠程機架。這些遠程位置的VCMI板提取適當?shù)姆纸M數據。
IS200VCMIH2BEE是一款雙面板。電路板的背面主要是電阻和電容。電路板的正面更復雜，包括連接器端口(包括兩個背板)、電感/扼流圈、tp測試點和集成電路。連接的前面板有三個IONet端口和一個陽串行端口。它有一個復位按鈕、兩個固定螺釘和四組LED指示燈(一組3個、一組6個、一組8個和另一組3個)。)面板上還標有公司標志和板號。

IS200VCMIH2BEE

The IS200VCMIH2BEE is part of the Unit Data Highway (UDH). It functions as the main communication control board. The data is read and transmitted to other boards via Fiber Optic Ethernet (IONet).
VCMI boards can be designed for simplex or TMR(three-mode redundancy) applications. The simplex board has one IONet port, while the TMR board has three. The IS200VCMIH2BEE board is a TMR board.
IS200VCMIH2BEE uses SIFT voting (software-implemented fault tolerance.) The data is broadcast as a packet to all remote racks. VCMI boards at these remote locations extract the appropriate packet data.

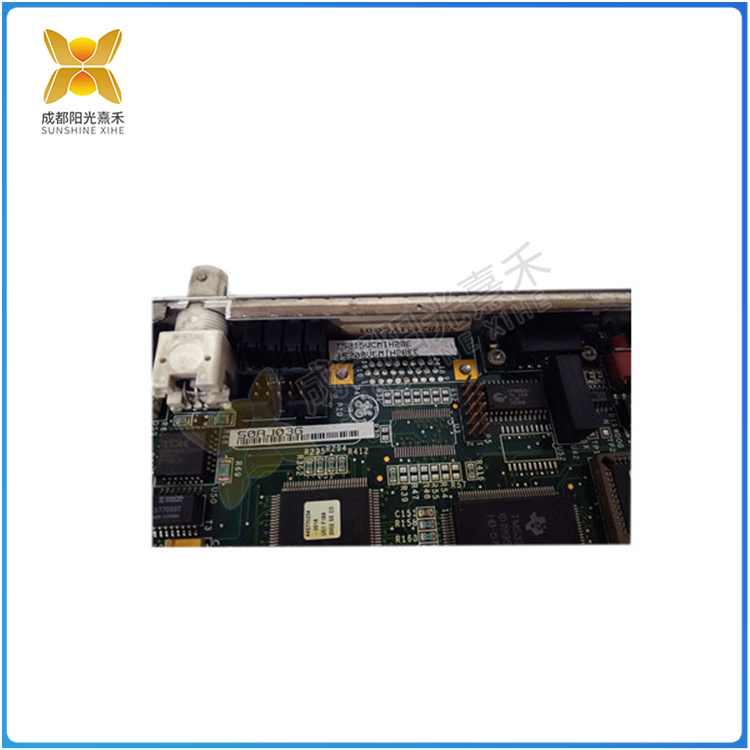

The IS200VCMIH2BEE is a dual panel. The back of the circuit board is mainly resistance and capacitance. The front of the board is more complex and includes connector ports (including two backplanes), inductors/chokes, tp test points, and integrated circuits. The connected front panel has three IONet ports and one positive serial port. It has a reset button, two setting screws, and four sets of LED indicators (one set of three, one set of six, one set of eight, and another set of three). The panel is also marked with the company logo and board number.

IS200VCMIH2BEE
