IS215ACLEH1B板使用以太網連接，該連接使用由主板上的 BIOS 功能初始化的 IRQ 5。ACLE 板上的以太網連接是位于 ACL 板前面板的 10baseT 或 RJ45 插孔。作為基于微處理器的控制，該板具有外圍組件互連 （PCI） 控制器，該控制器將管理不同的輸入和輸出、與 PCI 總線之間的配置傳輸以及管理各種存儲器功能。
IS215ACLEH1B型號是EX2100e系列的一部分，作為應用控制層模塊，通常是基于微處理器的控制器。該板的主要用途是通過ISBus和以太網等通信網絡執行多種不同的職責。安裝板后，它將占據EX2100勵磁機板機架或創新系列驅動器中的兩個半插槽。ACLE板也將位于控制柜內。有許多不同的軟件功能，包括但不限于以下功能：I/O點和內部布爾強制、創新系列驅動器的應用控制、非易失性閃存、在線應用程序配置加載

IS215ACLEH1B

The IS215ACLEH1B board uses an Ethernet connection that uses IRQ 5 initialized by the BIOS function on the motherboard. The Ethernet connection on the ACLE board is a 10baseT or RJ45 jack located on the front panel of the ACL board. As a microprocessor-based control, the board has a Peripheral Component Interconnection (PCI) controller that will manage different inputs and outputs, configuration transfers to and from the PCI bus, and manage various memory functions.
The IS215ACLEH1B model is part of the EX2100e family as an application control layer module, usually a microprocessor-based controller. The main purpose of the board is to perform a variety of different duties over communication networks such as ISBus and Ethernet. When the board is installed, it will occupy two and a half slots in the EX2100 exciter board frame or Innovation series drive. ACLE board will also be located in the control cabinet. There are many different software features, including but not limited to the following: I/O points and internal Boolean forcing, application control for innovative family of drives, non-volatile flash memory, online application configuration loading

IS215ACLEH1B

其他型號推薦：

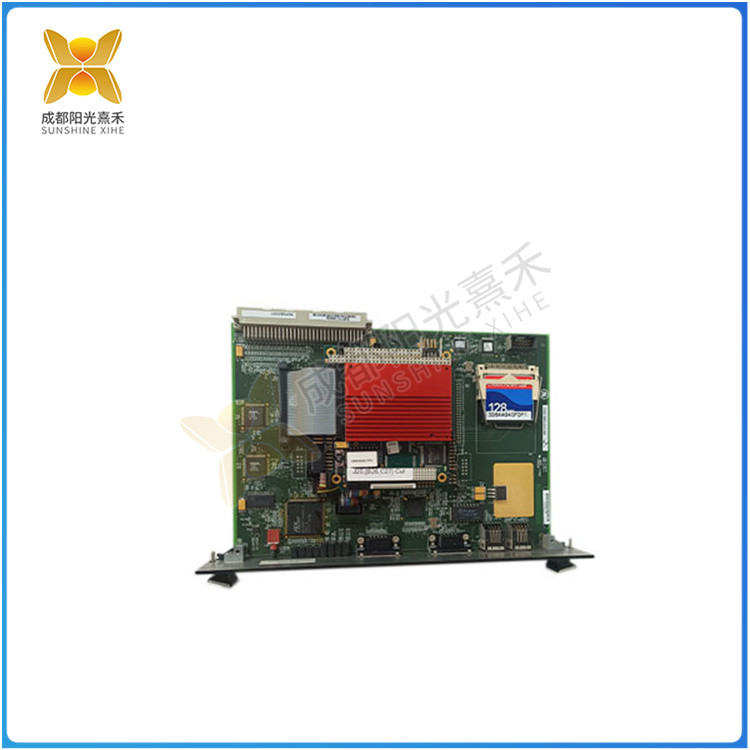

IS215ACLEH1B
