PCI-5421可以生成用戶定義的任意波形和標準函數，包括正弦波、方波二角波和鋸齒波。這款任意波形發生器可以生成-6 V~+6 V的信號，并使用直接數字合成(DDS)精確生成波形。PCI-5421還具有高級同步和數據流功能。
PCI-5421帶有一個模擬輸出通道，該通道有一個 SMB（插孔）連接器。輸出通道的DAC分辨率為16位。它是直流耦合型。PCI-5421設備輸出端的通道可以組合相似路徑中的波形。這意味著設備支持波形求和。因此，可以連接不同模塊的輸出端子。PCI-5421波形發生器設備的最大帶寬為 43 MHz。該器件具有 7 極橢圓濾波器。

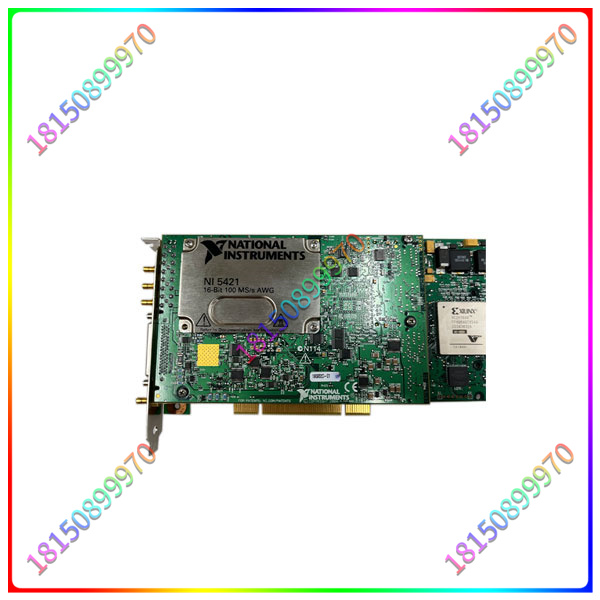

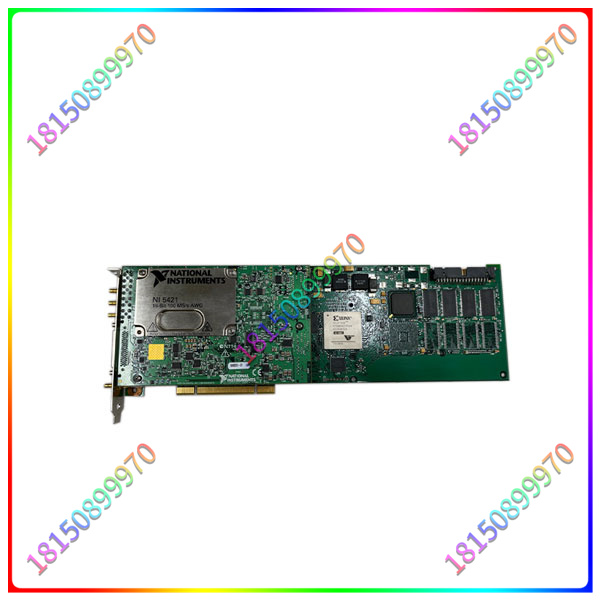

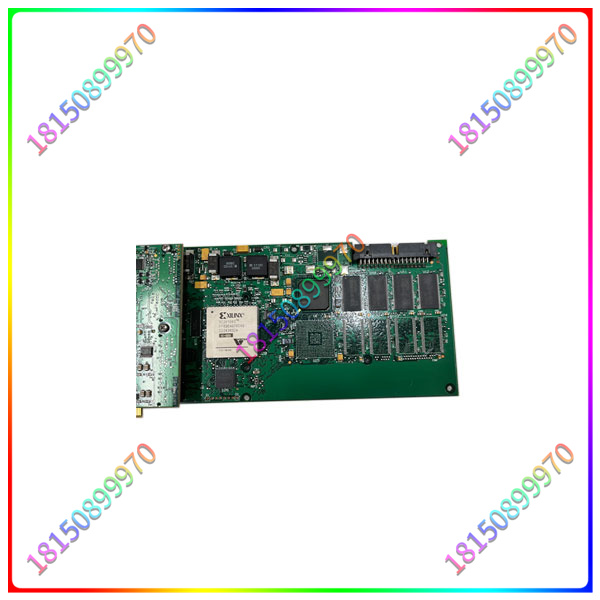

PCI-5421

The PCI-5421 can generate any user-defined waveforms and standard functions, including sine waves, square waves, two Angle waves, and sawtooth waves. This arbitrary waveform generator can generate signals from -6 V to +6 V, and uses direct digital synthesis (DDS) to precisely generate the waveform. The PCI-5421 also features advanced synchronization and data streaming capabilities.
The PCI-5421 comes with an analog output channel that has an SMB (jack) connector. The DAC resolution of the output channel is 16 bits. It is DC coupled. Channels at the output end of the PCI-5421 device can combine waveforms in similar paths. This means that the device supports waveform summation. Therefore, the output terminals of different modules can be connected. The PCI-5421 waveform generator device has a maximum bandwidth of 43 MHz. The device has a 7-pole elliptic filter.

PCI-5421
