IC697CPM790-GD是GE 90-70系列可編程邏輯控制器（PLC）的CPU模塊。該PLC具有高級批次處理、三重冗余和高速處理功能，可以處理大量的I/O，其龐大的用戶程序處理內存可以滿足復雜生產的需要。它是一種高性能的控制器，專為迎接各種挑戰而設計。
IC697CPM790-GD是GE FANUC制造的64 MHz CPU，具有使用32位浮點和微處理器80486DX2的計算能力。該CPU利用單插槽編程軟件，該軟件與Windows或MS-DOS一起執行配置和編程。IC697CPM790-GD包括多達12K的離散輸入和輸出（僅限混合單工模式）。它具有專用于操作系統固件的閃存，允許通過PC和模塊串行端口之間的連接進行固件更新。用戶通過編程軟件控制模塊操作，或使用RUN/STOP三位開關通過操作模式控制模塊操作。內存保護密鑰或軟件密碼鎖定配置和程序數據。IC697CPM790有四個綠色LED指示燈，指示CPU的狀態。風冷需要風扇組件。用戶可以將總線發送器模塊IC697BEM713連接到編程器進行并行接口。具有15個引腳的D型連接器連接串行端口，該端口與RS-485兼容。在實際操作和上電期間，CPU會驗證機架配置，同時其報警功能會報告編程和/或實際配置中的任何偏差。

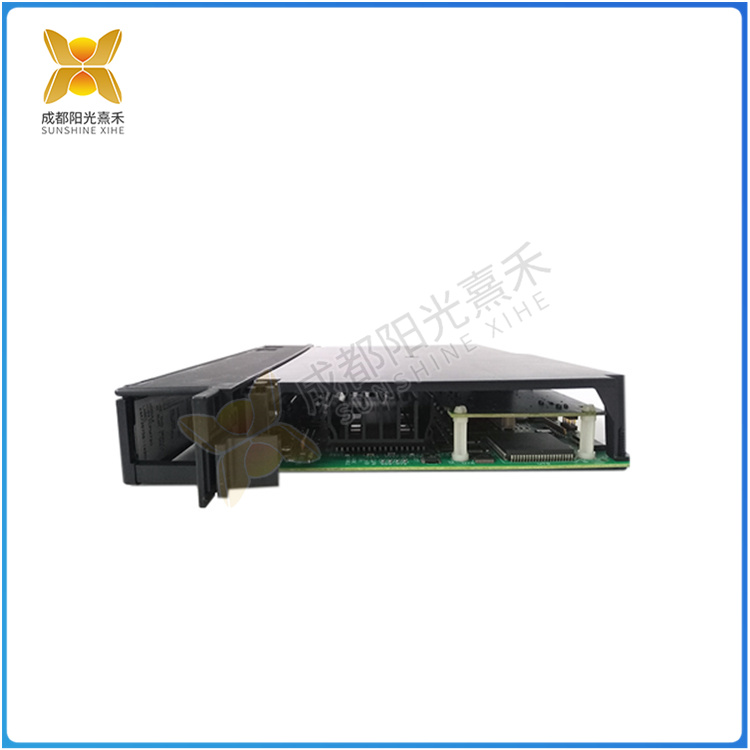

IC697CPM790-GD
The IC697CPM790-GD is the CPU module of the GE 90-70 series programmable logic controller (PLC). The PLC has advanced batch processing, triple redundancy and high-speed processing functions, can handle a large amount of I/O, and its huge user program processing memory can meet the needs of complex production. It is a high performance controller designed to meet a variety of challenges.
The IC697CPM790-GD is a 64 MHz CPU manufactured by GE FANUC with computing power using 32-bit floating point and a microprocessor 80486DX2. The CPU utilizes single-slot programming software that performs configuration and programming with Windows or MS-DOS. The IC697CPM790-GD includes discrete inputs and outputs of up to 12K (mixed simplex mode only). It has flash memory dedicated to the operating system firmware, allowing firmware updates via a connection between the PC and the module serial port. The user controls the module operation through the programming software, or uses the RUN/STOP three-digit switch to control the module operation through the operation mode. Memory-protected keys or software passwords lock configuration and program data. The IC697CPM790 has four green LED indicators indicating the status of the CPU. Air cooling requires fan components. The user can connect the bus transmitter module IC697BEM713 to the programmer for parallel interface. A Type D connector with 15 pins connects the serial port, which is compatible with RS-485. During actual operation and power-on, the CPU verifies the rack configuration while its alarm function reports any deviations in the programming and/or actual configuration.

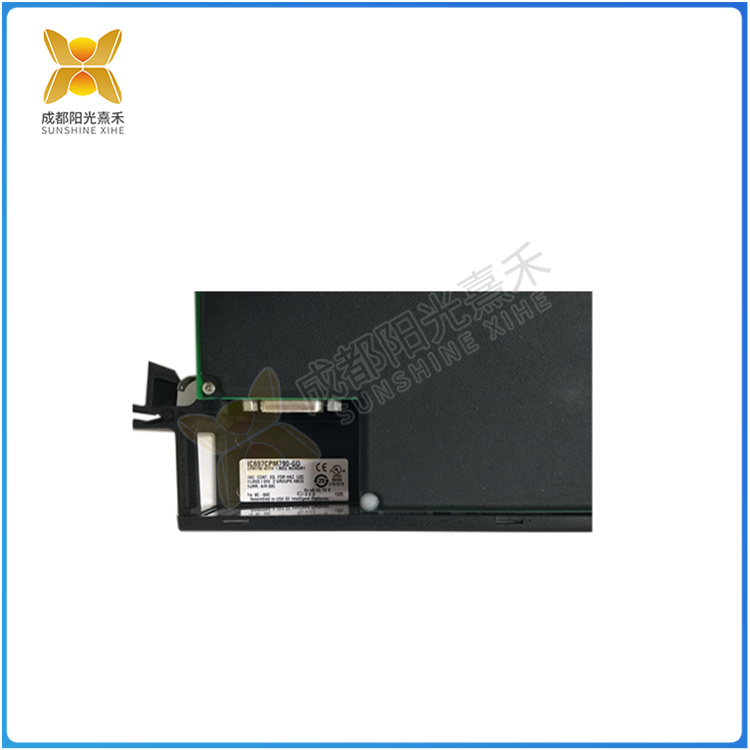

IC697CPM790-GD
